Camshaft Installation
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

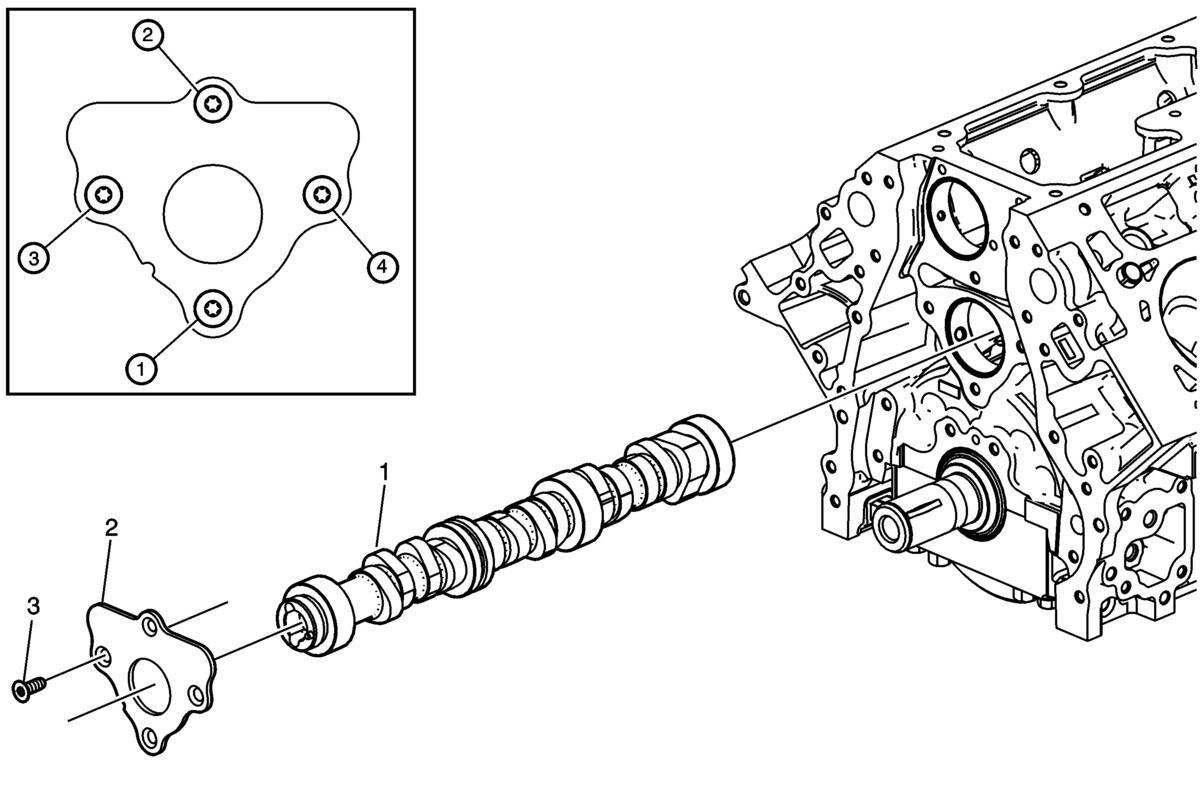

| Callout | Component Name |
|---|---|
| 1 | Camshaft |
| 2 | Camshaft Retainer |
| 3 | Camshaft Retainer Bolt [4x]
CAUTION:
Refer to Fastener Caution .
NOTE:
Clean the threads of the cam retainer bolts and apply a sealant. Refer to Adhesives, Fluids, Lubricants, and Sealers . Procedure Tighten the retainer bolts in the sequence shown. Tighten 15 N.m (11 lb ft) |
