Automatic Transmission Flex Plate Removal

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

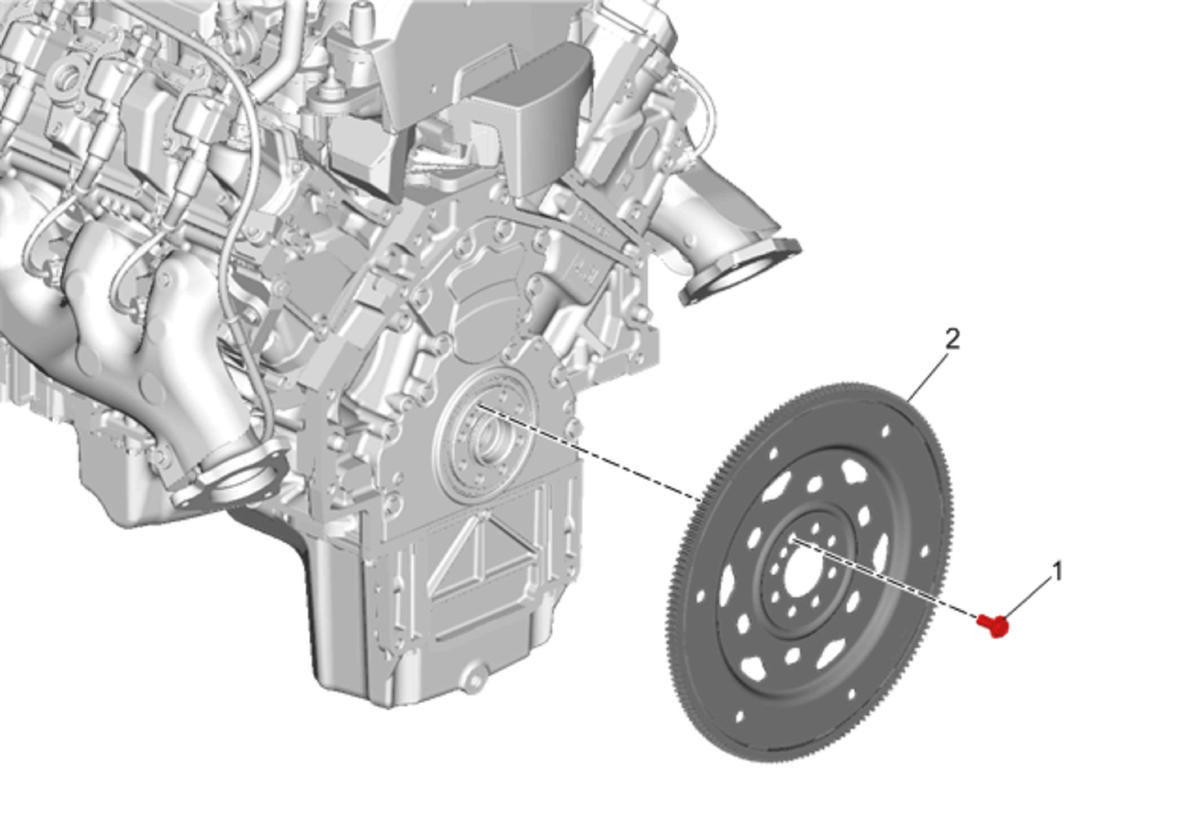

GM4806741Courtesy of GENERAL MOTORS COMPANY
NOTE:

Mark or scribe the end of the crankshaft and the flex plate before removal.

  1. Remove the engine flex plate bolts (1).
  2. Remove the flex plate (2).
