Engine Identification
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

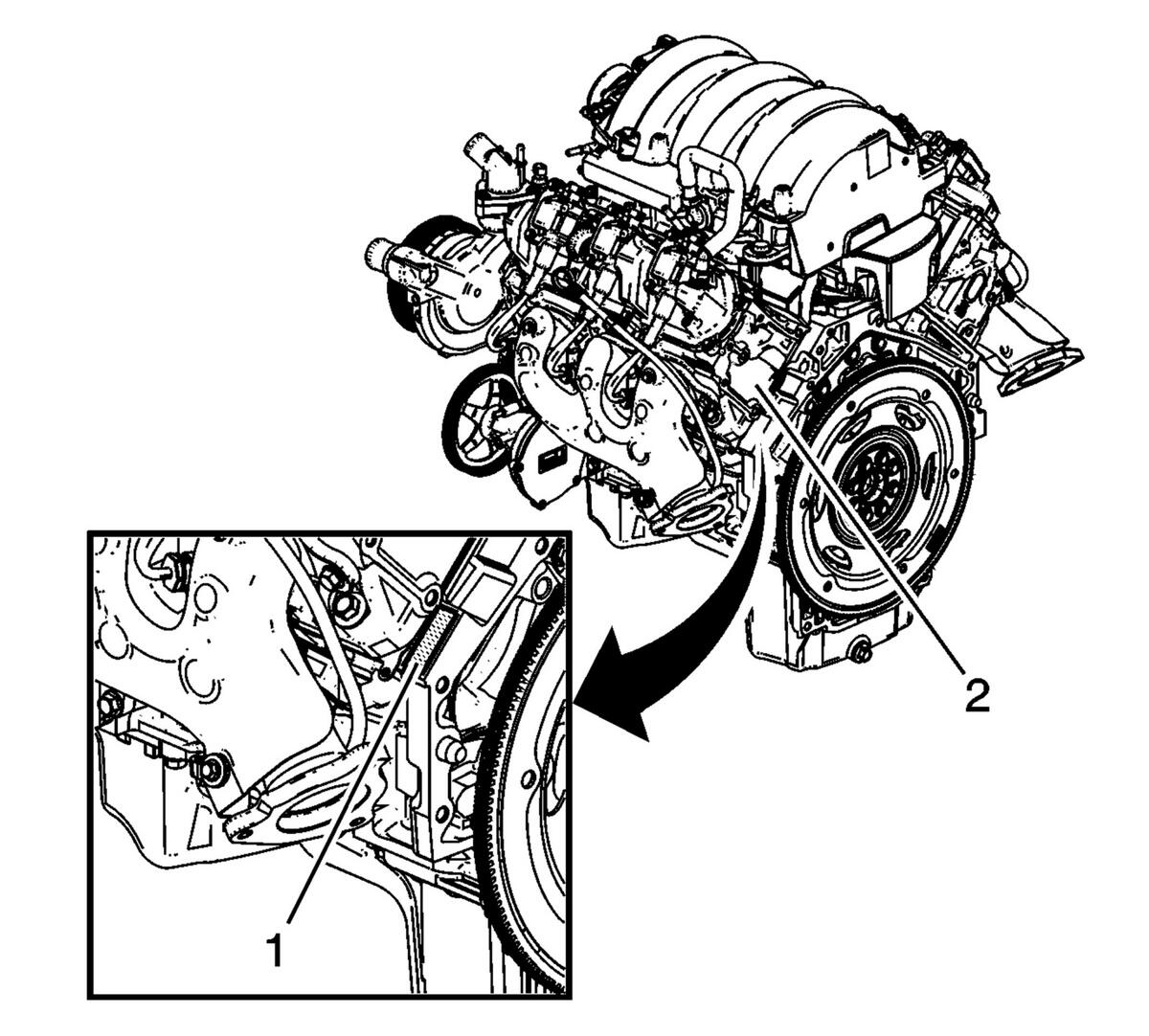

The vehicle identification number (VIN) is located on the left side rear of the engine block (1) and is typically a 9 digit number stamped or laser-etched onto the engine at the vehicle assembly plant.
- The first digit identifies the division.
- The second digit identifies the model year.
- The third digit identifies the assembly plant.
- The fourth through ninth digits are the last 6 digits of the VIN.
Engine identification can also be made through use of the Engine Traceability label (2) on the rear of the left cylinder head.
- Broadcast Code
- Machine Readable 2D Matrix
- VPPS Code
- Part Sequence Number
- Reserved use
- Broadcast Code
- Model year
- Julian Date
- Build Year
- Shift ID
- Plant ID
- GM Part Number
- Plant DUNS Number
- Sequence Number
- RPO/Engine Family Code
