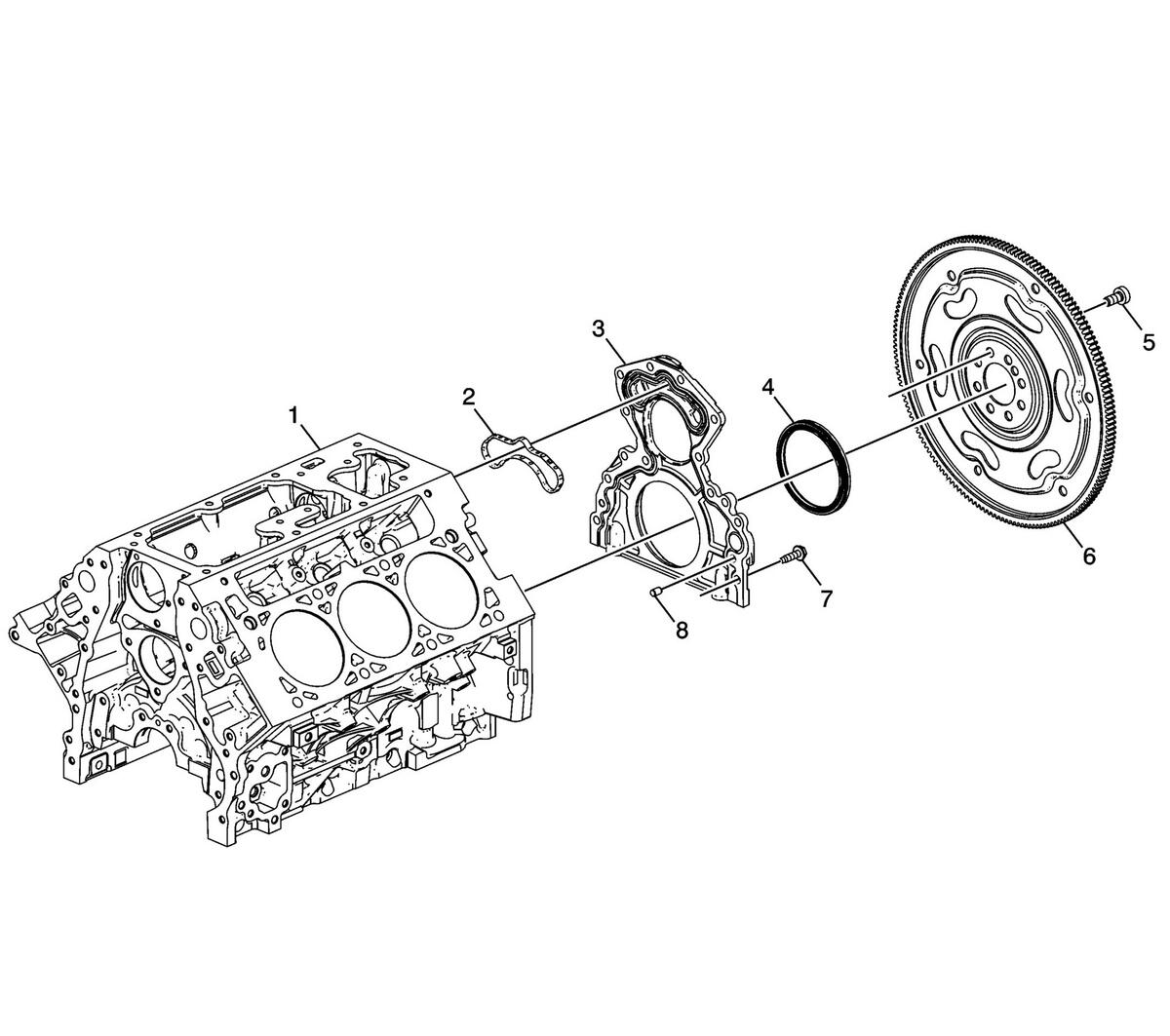

Rear of Engine
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Engine Block |
| 2 | Crankshaft Rear Oil Seal Housing Gasket |
| 3 | Crankshaft Rear Oil Seal Housing |
| 4 | Crankshaft Rear Oil Seal |
| 5 | Automatic Transmission Flex Plate Bolt |
| 6 | Automatic Transmission Flex Plate |
| 7 | Crankshaft Rear Oil Seal Housing Bolt |
| 8 | Crankshaft Rear Oil Seal Housing Locating Pin |
