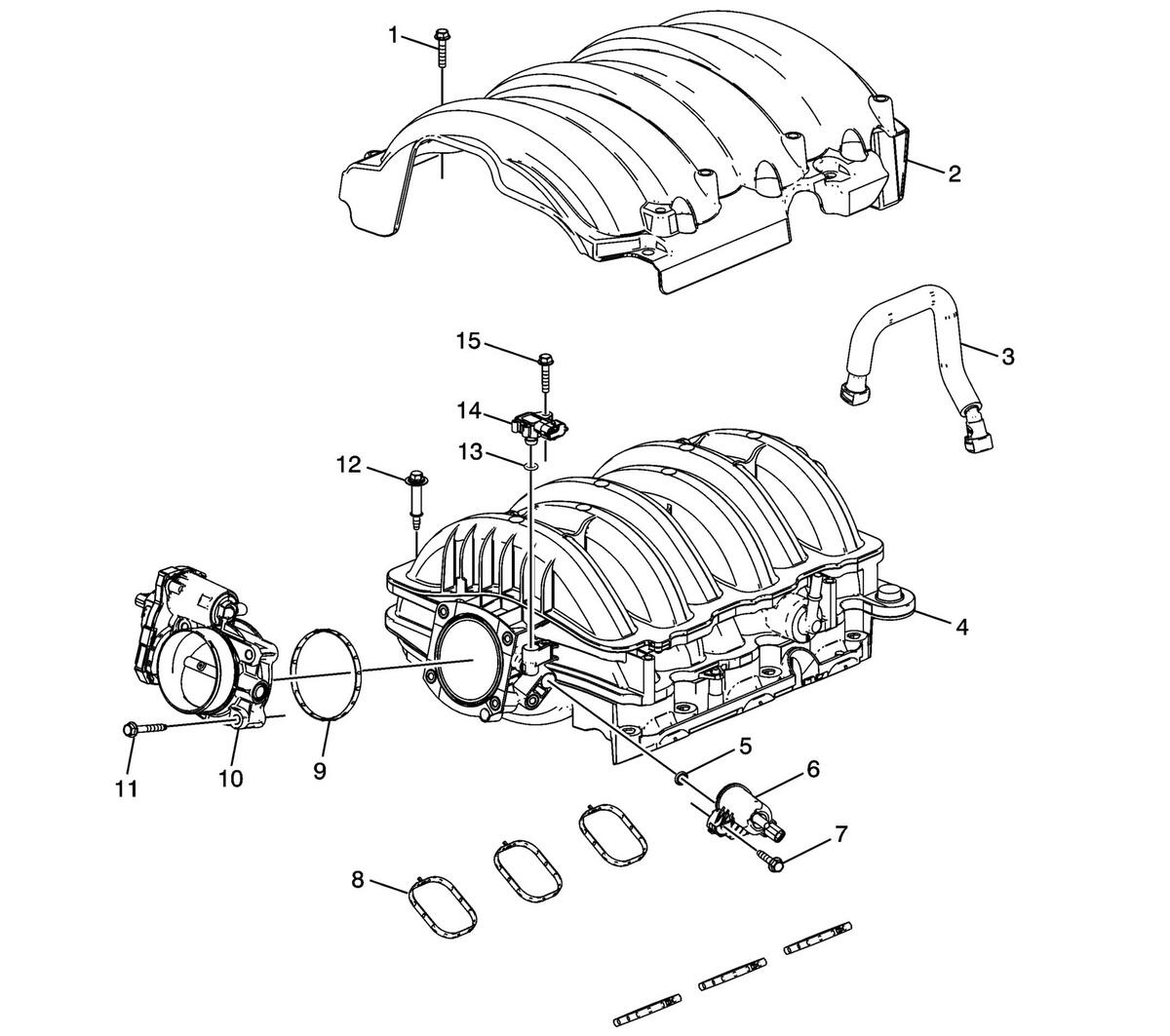

Intake Manifold and Components
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Cover Bolt |
| 2 | Intake Manifold Cover |
| 3 | Positive Crankcase Ventilation Tube |
| 4 | Intake Manifold |
| 5 | Evaporative Emission Canister Purge Solenoid Valve Seal |
| 6 | Evaporative Emission Canister Purge Valve |
| 7 | Evaporative Emission Canister Purge Solenoid Valve |
| 8 | Intake Manifold Gasket |
| 9 | Throttle Body Gasket |
| 10 | Throttle Body |
| 11 | Throttle Body Bolt |
| 12 | Intake Manifold Bolt |
| 13 | Manifold Absolute Pressure Sensor Seal Ring |
| 14 | Manifold Absolute Pressure Sensor |
| 15 | Manifold Absolute Pressure Sensor Bolt |
