Engine Block Plugs/Sensors
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

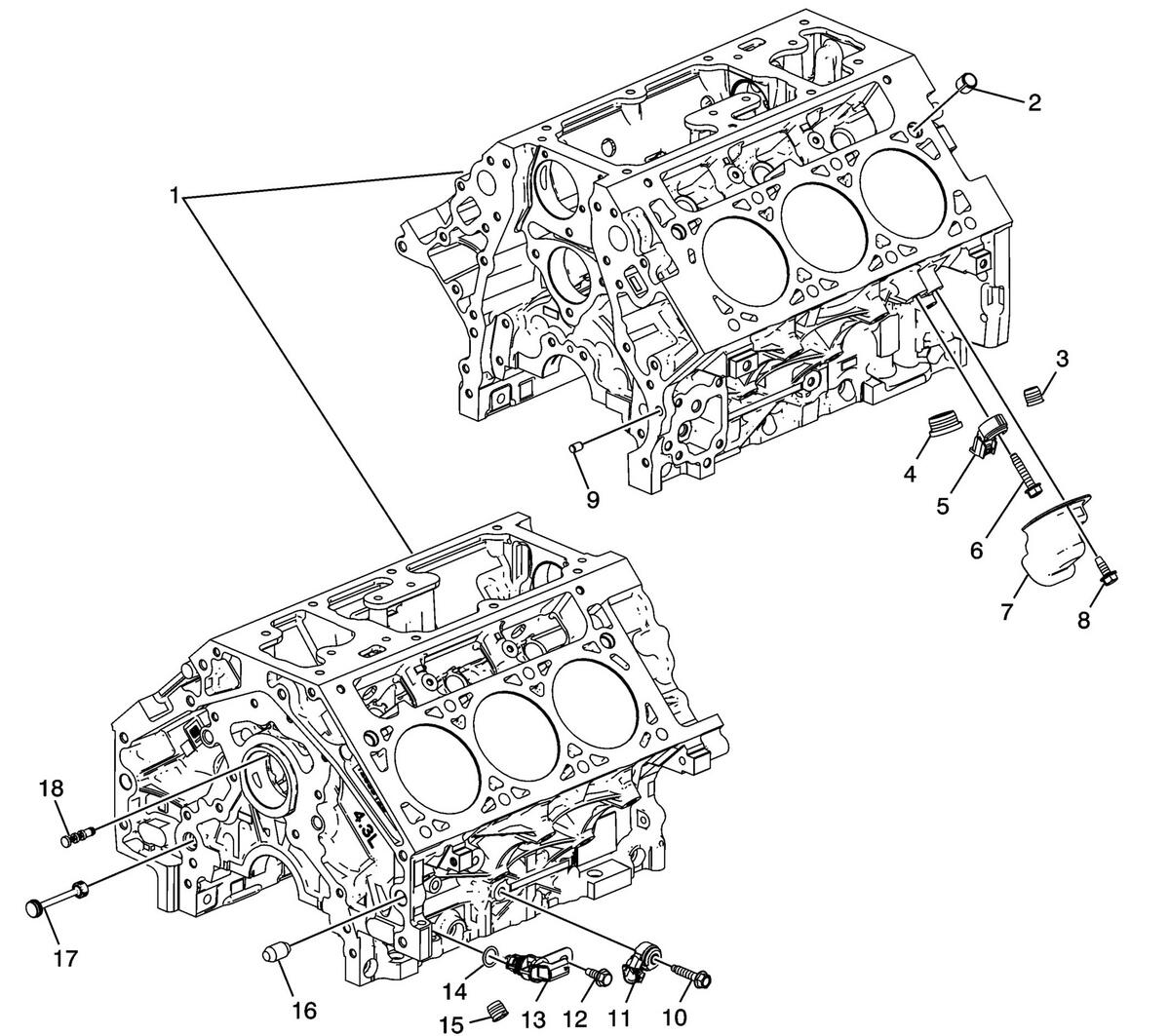

| Callout | Component Name |
|---|---|
| 1 | Engine Block |
| 2 | Cylinder Head Locating Pin |
| 3 | Engine Block Oil Gallery Plug |
| 4 | Engine Block Core Hole Plug |
| 5 | Knock Sensor |
| 6 | Knock Sensor Bolt |
| 7 | Knock Sensor Heat Shield |
| 8 | Knock Sensor Heat Shield Bolt |
| 9 | Engine Front Cover Locating Pin |
| 10 | Knock Sensor Bolt |
| 11 | Knock Sensor |
| 12 | Crankshaft Position Sensor Bolt |
| 13 | Crankshaft Position Sensor |
| 14 | Crankshaft Position Sensor Seal |
| 15 | Engine Block Core Hole Plug |
| 16 | Transmission Locating Pin |
| 17 | Engine Block Oil Gallery Plug |
| 18 | Engine Block Oil Gallery Plug |
