Cylinder Head/Upper Engine
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

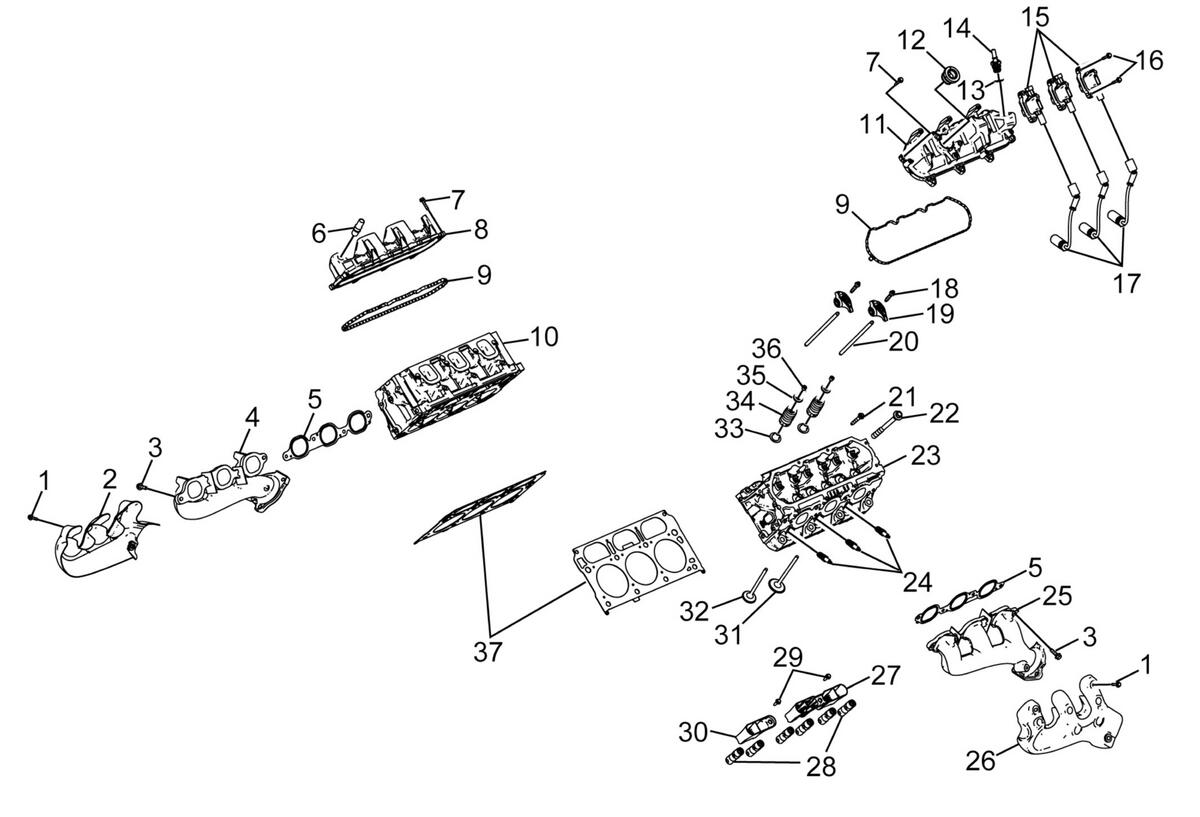

| Callout | Component Name |
|---|---|
| 1 | Exhaust Manifold Heat Shield Bolt |
| 2 | Exhaust Manifold Heat Shield - Right Side |
| 3 | Exhaust Manifold Bolt |
| 4 | Exhaust Manifold - Right Side |
| 5 | Exhaust Manifold Gasket |
| 6 | Positive Crankcase Ventilation Hose Fitting |
| 7 | Valve Rocker Arm Cover Bolt |
| 8 | Valve Rocker Arm Cover - Right Side |
| 9 | Valve Rocker Arm Cover Gasket - Right Side |
| 10 | Cylinder Head - Right Side |
| 11 | Valve Rocker Arm Cover - Left Side |
| 12 | Oil Filler Tube Grommet |
| 13 | Positive Crankcase Ventilation Hose Fitting Seal |
| 14 | Positive Crankcase Ventilation Hose Fitting |
| 15 | Ignition Coil |
| 16 | Ignition Coil Bolt |
| 17 | Spark Plug Wire |
| 18 | Valve Rocker Arm Pivot Support Bolt |
| 19 | Valve Rocker Arm |
| 20 | Valve Push Rod |
| 21 | Cylinder Head Bolt - Short |
| 22 | Cylinder Head Bolt - Long |
| 23 | Cylinder Head - Left Side |
| 24 | Spark Plug |
| 25 | Exhaust Manifold - Left Side |
| 26 | Exhaust Manifold Heat Shield - Left Side |
| 27 | Valve Lifter Guide |
| 28 | Valve Lifter |
| 29 | Valve Lifter Guide Bolt |
| 30 | Valve Lifter Guide |
| 31 | Exhaust Valve |
| 32 | Intake Valve |
| 33 | Valve Stem Oil Seal |
| 34 | Valve Spring |
