Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the caps from the brake caliper and the brake hose.
- NOTE:
The brake hose must not be twisted. Make sure the brake hose is not in contact with any suspension component.

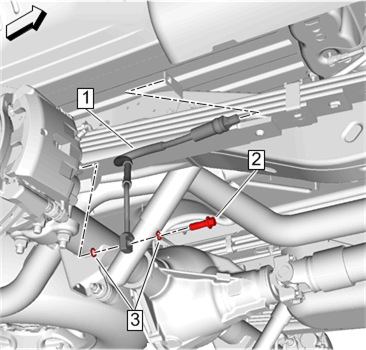

Rear Brake Hose(1) - Install
- Rear Brake Hose Fitting Gasket (3) - Install NEW[2x]
- Rear Brake Hose Fitting Bolt (2) @ Rear Brake Hose(1) - Install and tighten42 N.m (31 lb ft)
- Remove the caps or plugs from the brake pipe fitting and the brake hose.

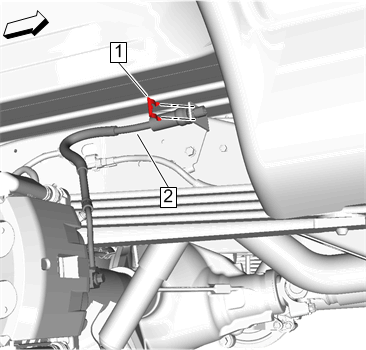

Rear Brake Pipe Clip (1) @ Rear Brake Hose(2) - Install
- NOTE:
Use a backup wrench at the rear brake hose when tightening the rear brake pipe fitting.

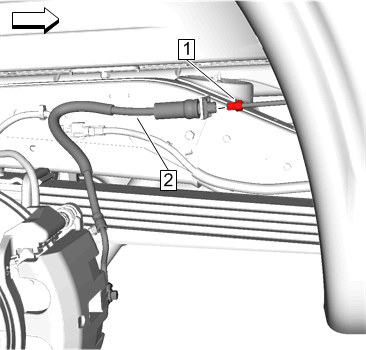

Rear Brake Pipe Fitting (1) @ Rear Brake Hose(2) - Install and tighten25 N.m (18 lb ft)
- Bleed the brake system. Hydraulic Brake System Bleeding (Pressure) , or Hydraulic Brake System Bleeding (Manual)
- Install the rear tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Remove the support and lower the vehicle.
CAUTION:
Refer to Fastener Caution .
NOTE:
Ensure that the brake hose does not make contact with any part of the suspension or the tire/wheel assembly. If the brake hose makes contact remove the brake hose and correct the condition.
