Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

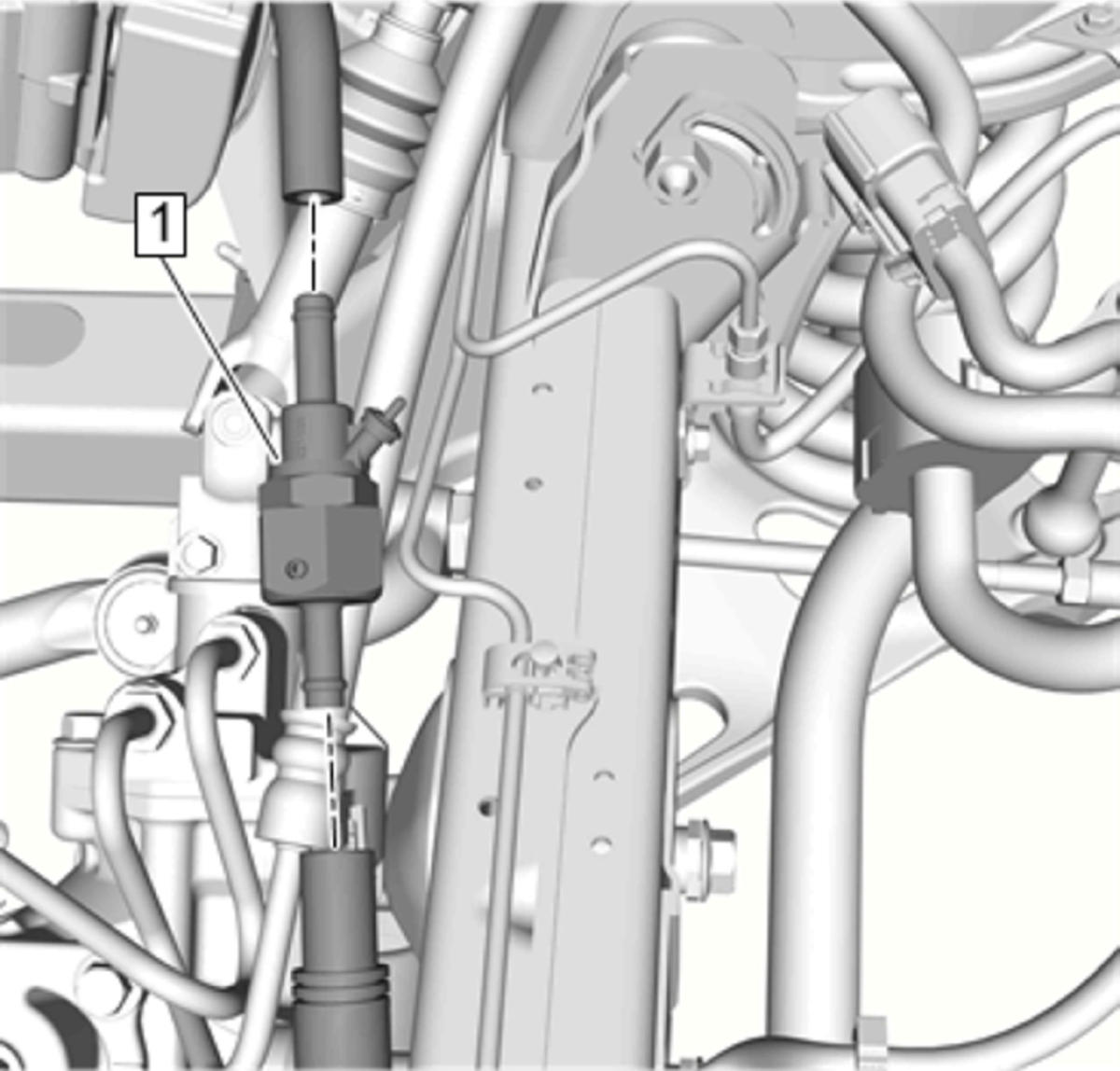

Power Brake Booster Fluid Flow Alarm Switch (1) @ Power Steering Pump Inlet Hose - Install

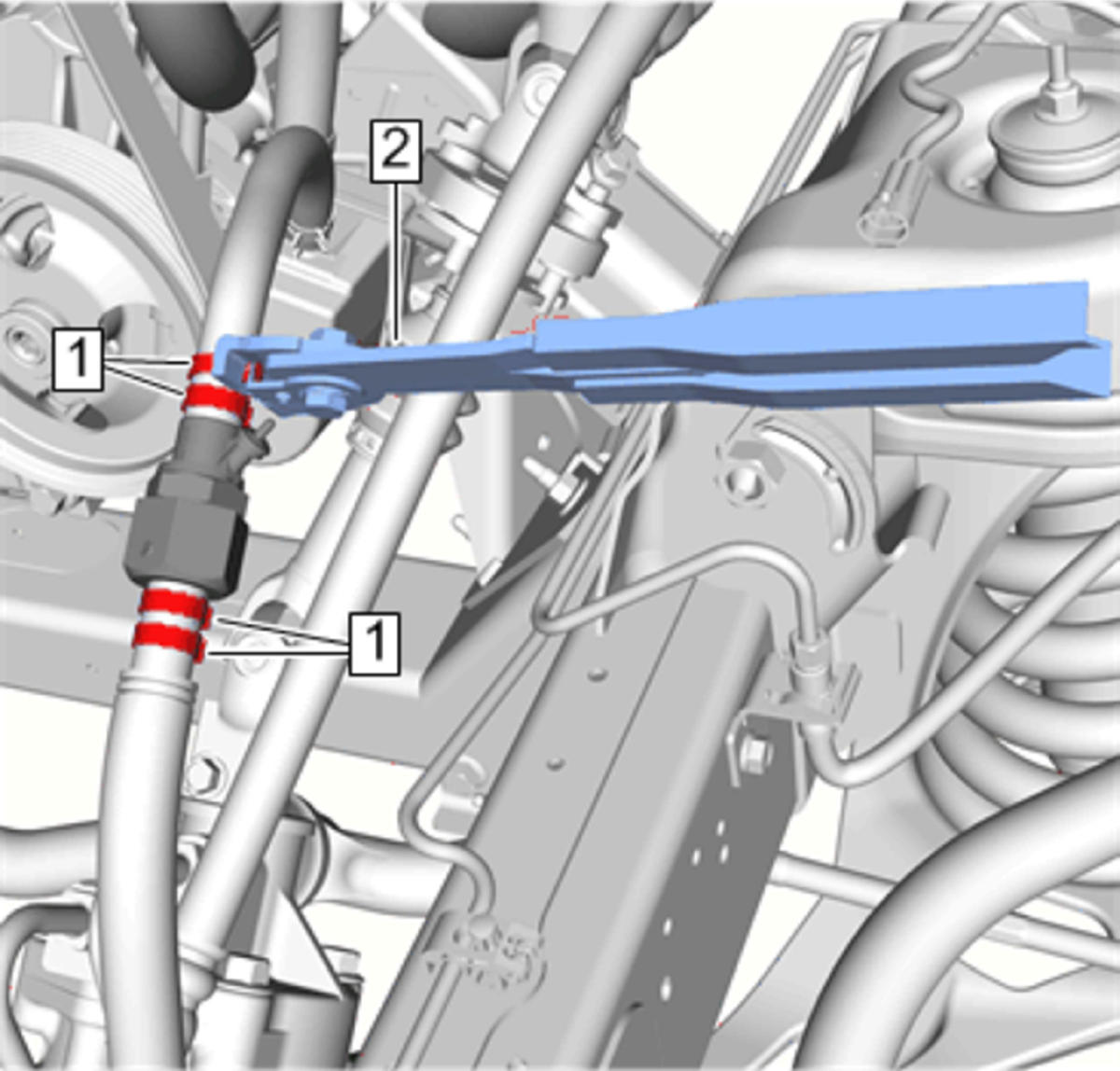

Using the J 22610 (2)Install a NEW clamp and tighten.(1)[4x]
- CAUTION:
Refer to Fastener Caution .

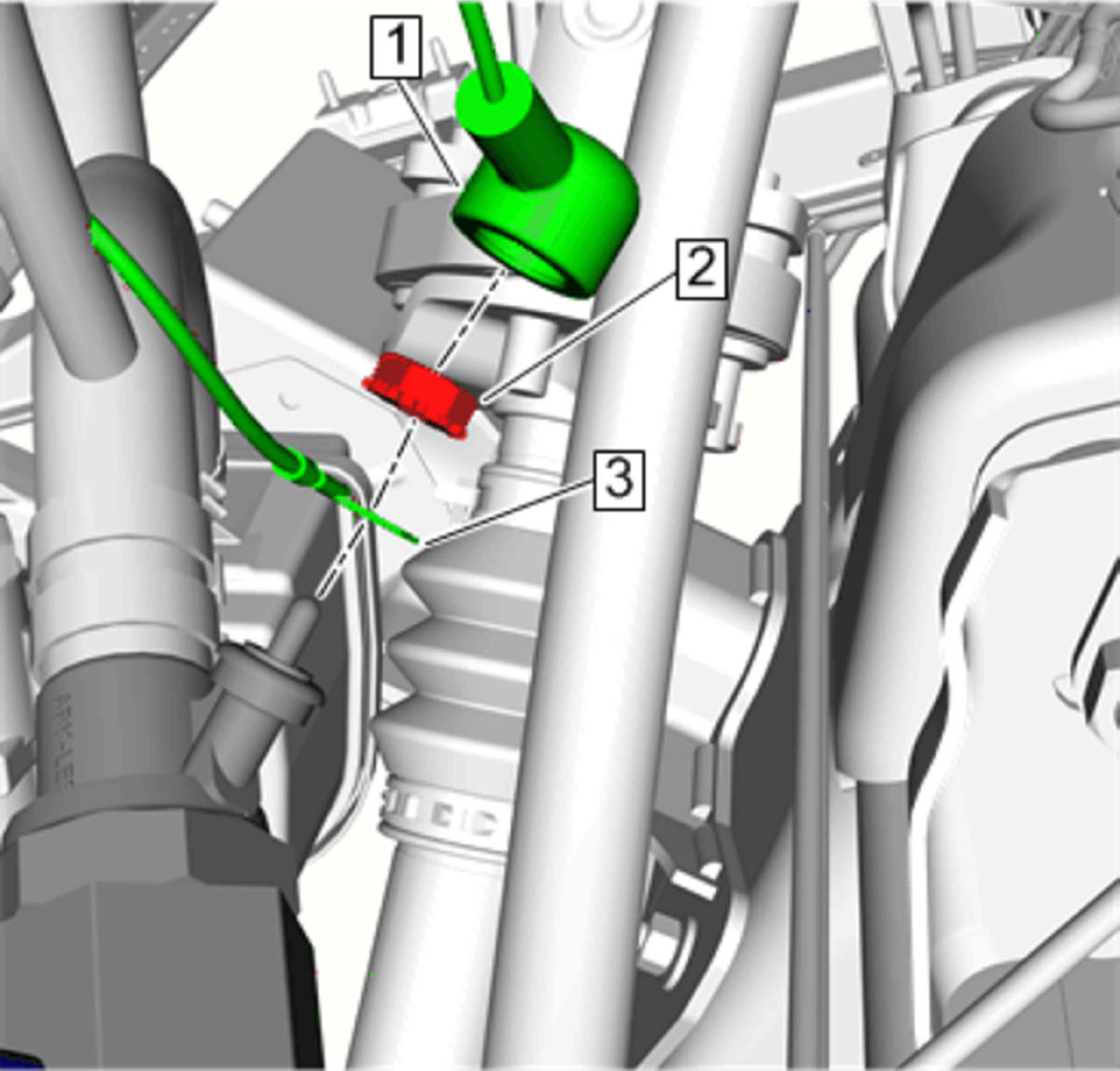

Electrical Connector - Install(3)
- Hex Nut - Install and tighten(2)1.3 N.m (11.5 lb in)
- Protective Cap - Install(1)
- Fill and bleed the power steering system. Power Steering System Bleeding
