Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Without Dual Rear Wheels) , or Tire and Wheel Removal and Installation (With Dual Rear Wheels)
- Clean all dirt and foreign material from the brake hose ends and the brake pipe fitting.
- NOTE:
Use a backup wrench at the front brake hose when loosening the front brake pipe fitting.

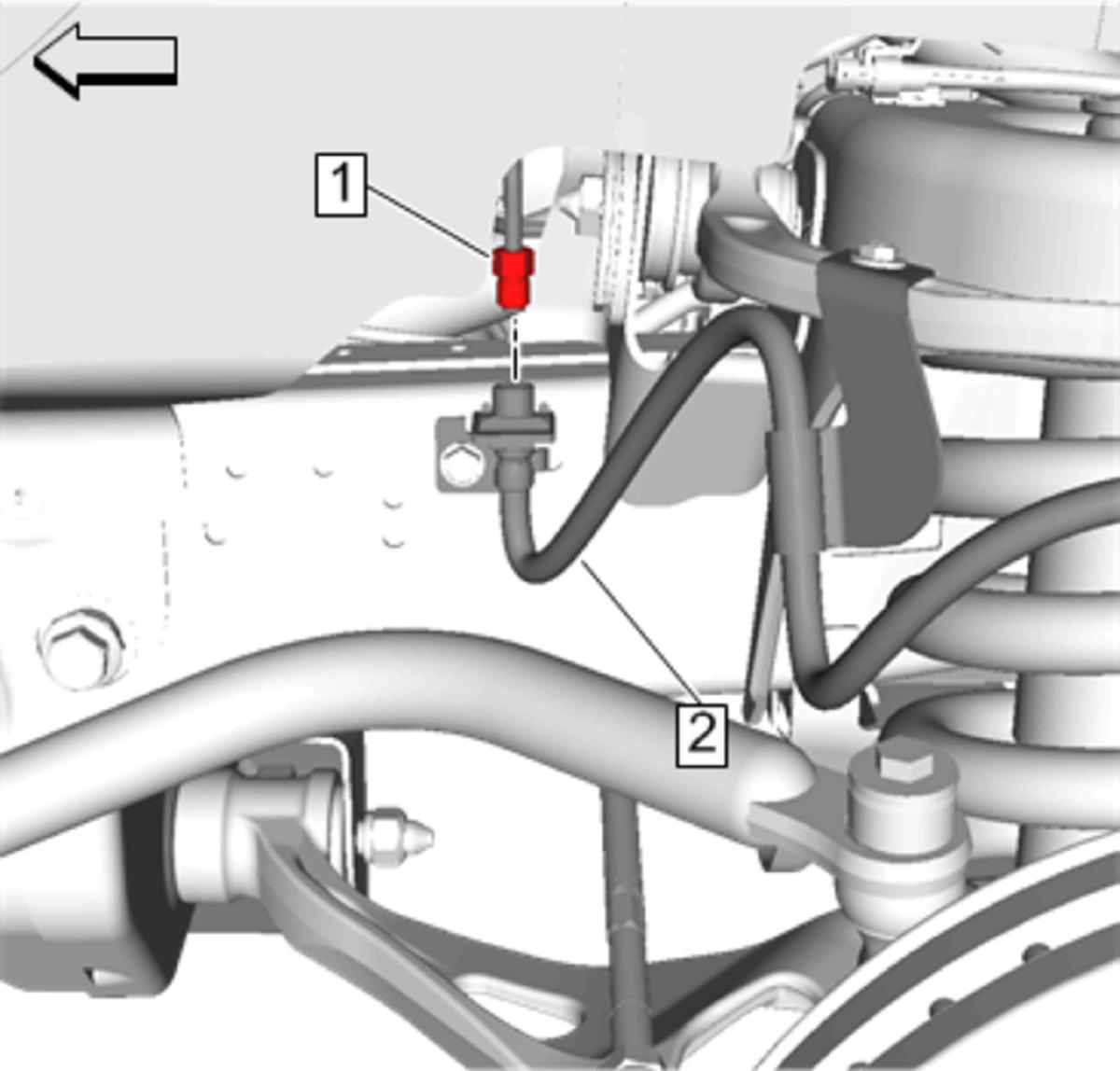

Front Brake Pipe Fitting(1) @ Front Brake Hose(2) - Remove

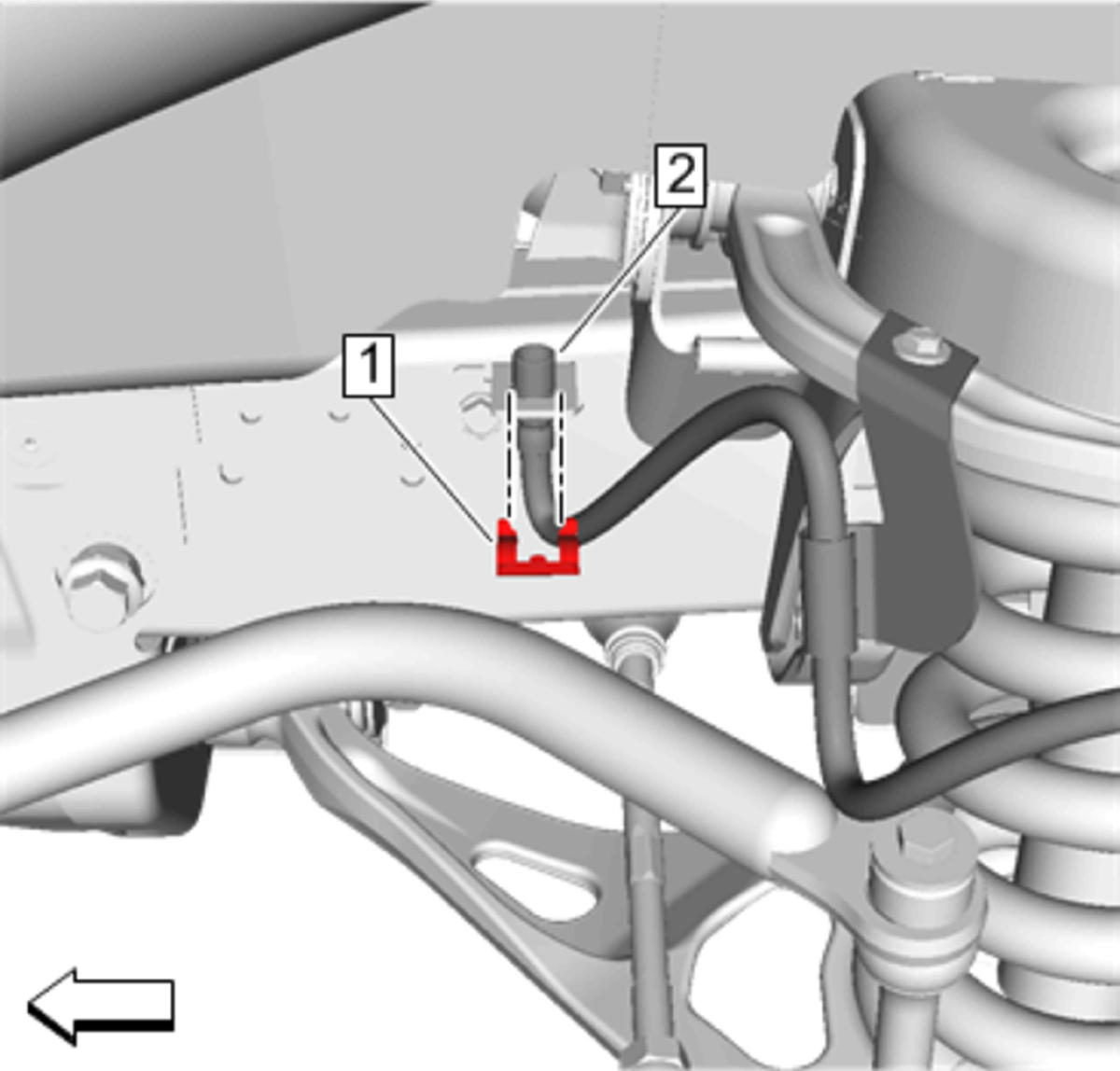

Front Brake Pipe Clip(1) @ Front Brake Hose(2) - Remove
- Cap the brake pipe fitting and the brake hose end to prevent fluid loss and contamination.

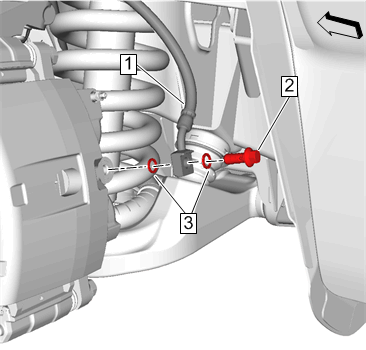

Front Brake Hose Fitting Bolt (2) @ Front Brake Hose(1) - Remove
- Front Brake Hose Fitting Gasket (3) - Remove and DISCARD[2x]
- Cap the brake caliper inlet port to prevent brake fluid loss and contamination.
Front Wheel Speed Sensor(1) @ Front Brake Hose(3) - Unclip
- Front Brake Hose Bolt(2) @ Front Brake Hose(3) - Remove[2x]
- Front Brake Hose(3) - Remove
