Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Apply the park brake and block the wheels.
Brake Pedal Position Sensor(1) - Remove - Brake Pedal Position Sensor Replacement
- Unclip the wiring harness from the brake pedal and reposition.

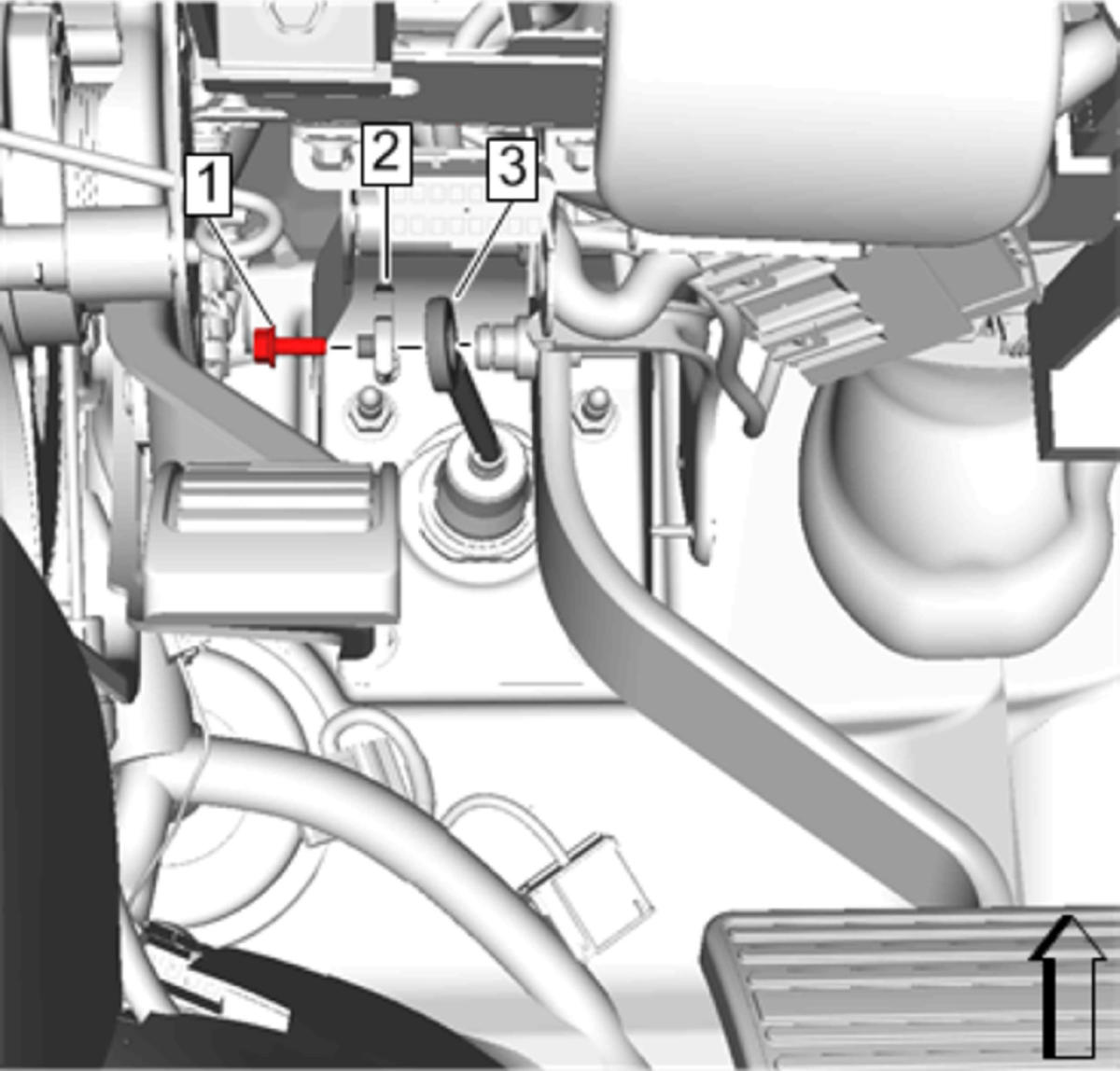

Brake Pedal Push Rod Retainer Bolt (1) - Remove
- Brake Pedal Push Rod Retainer (2) - Remove
- Brake Pedal Push Rod (3) - Disconnect

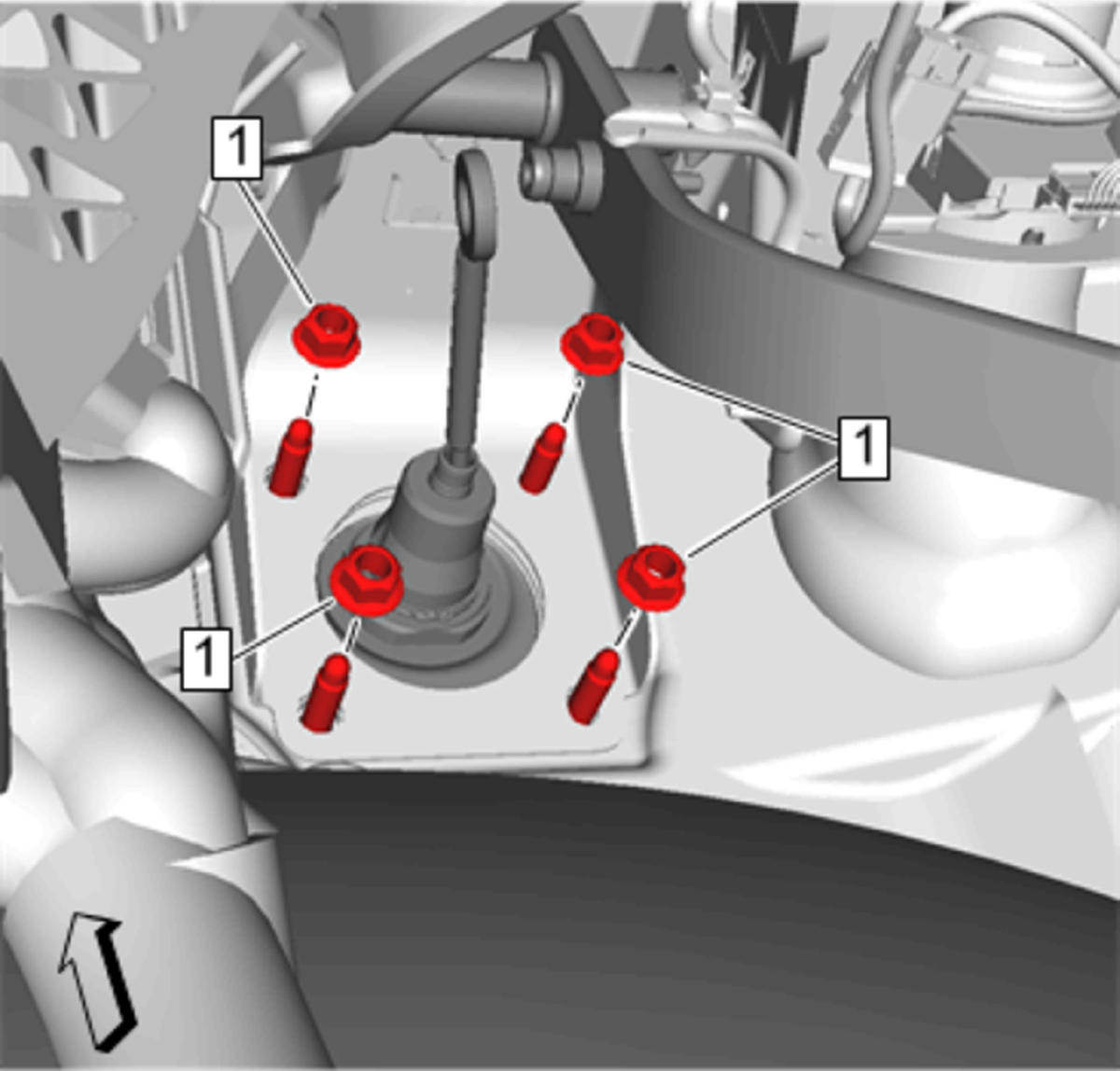

Power Brake Booster Nut(1) - Remove[4x]

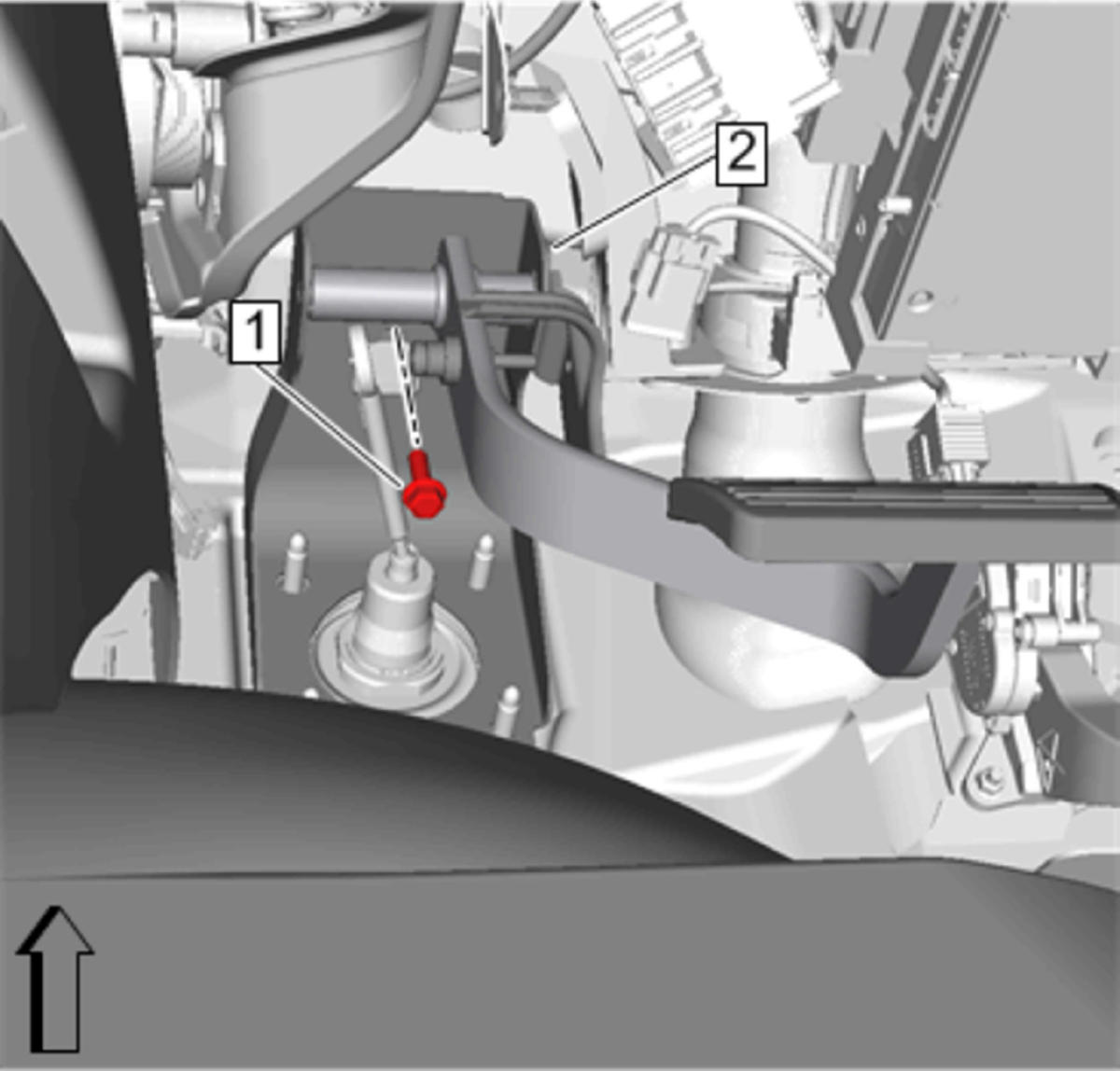

Brake Pedal Bolt(1) @ Brake Pedal(2) - Remove

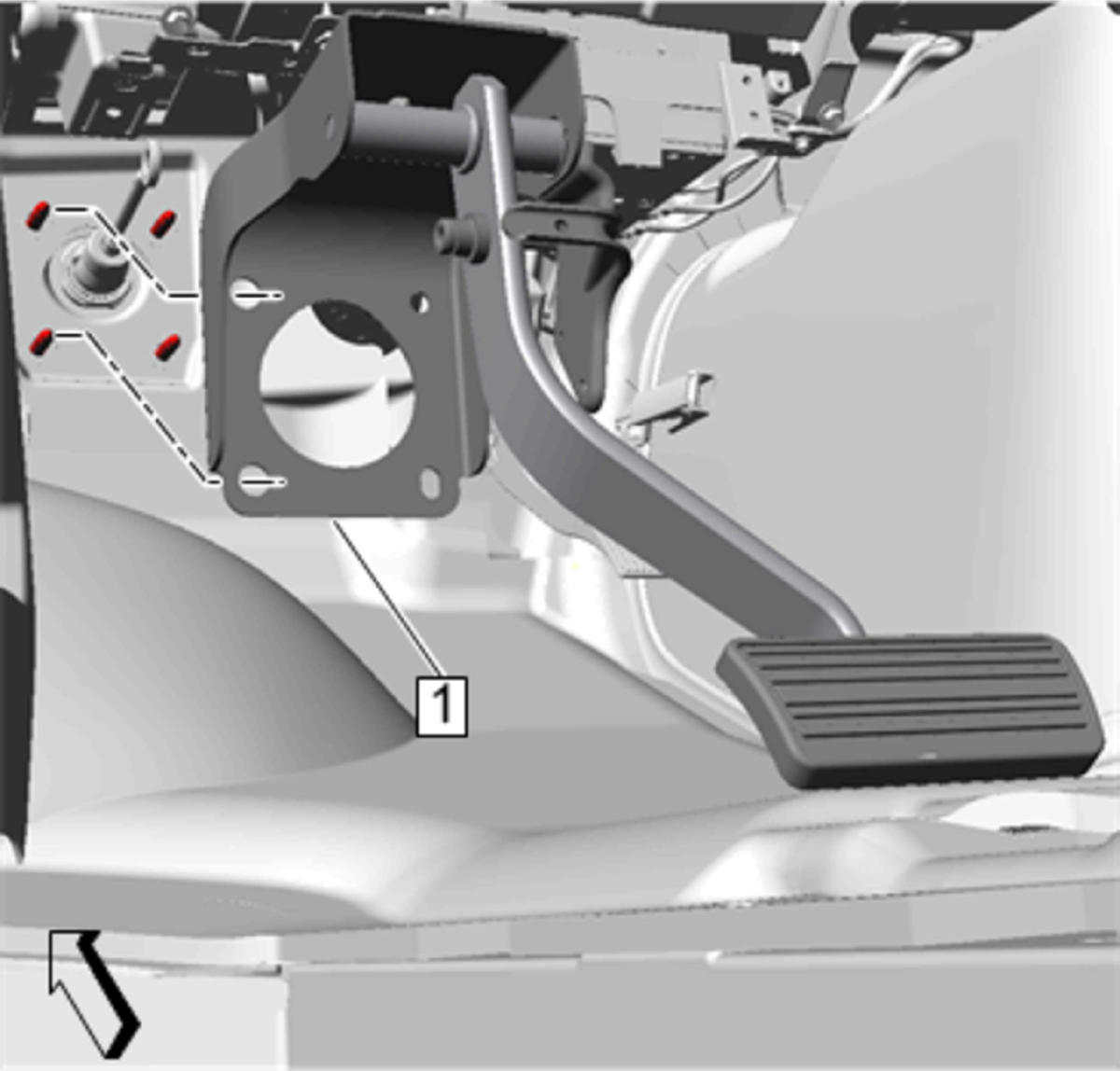

Brake Pedal(1) - Remove
