Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
- Place a clean shop cloth beneath the brake master cylinder to catch brake fluid spills.
- Using a suitable tool, remove and properly dispose of the brake fluid from the brake master cylinder reservoir.
- Electrical Connector @ Brake Fluid Level Indicator Switch - Disconnect

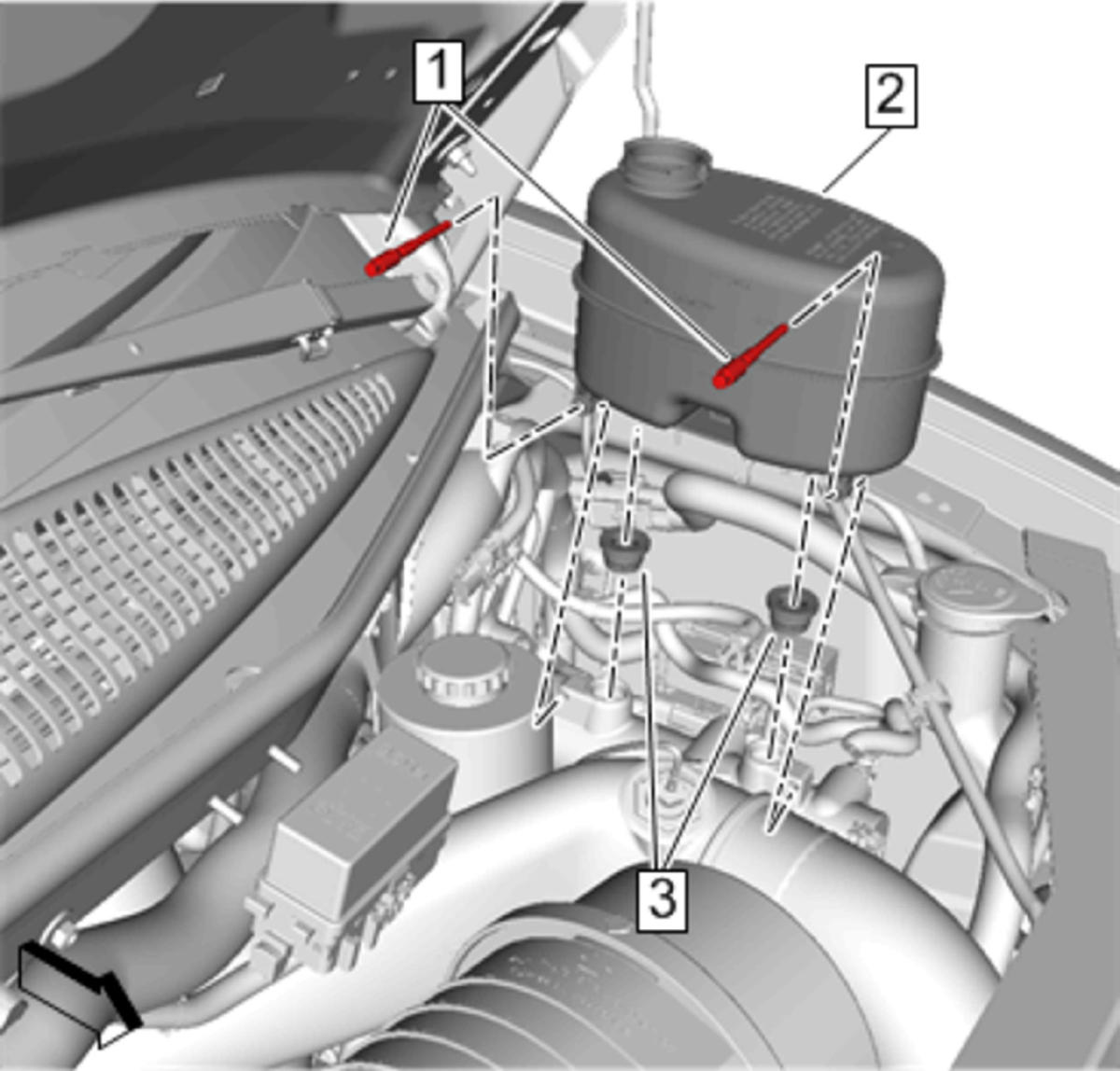

Brake Master Cylinder Reservoir Retainer (1) - Remove[2x]
- Brake Master Cylinder Reservoir(2) - Remove
- Brake Master Cylinder Reservoir Seal(3) - Remove and DISCARD[2x]
