Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Refer to Brake Fluid Irritant Warning .
CAUTION:
Refer to Brake Fluid Effects on Paint and Electrical Components Caution .
- Front End Sheet Metal Diagonal Brace- Left Side - Remove - Front End Sheet Metal Diagonal Brace Replacement - Left Side
- Place a clean shop cloth beneath the brake master cylinder to catch brake fluid spills.
- Using a suitable tool, remove and properly dispose of the brake fluid from the brake master cylinder reservoir.
- Electrical Connector @ Brake Fluid Level Indicator Switch - Disconnect
- Wiring Harness @ Brake Master Cylinder - Disconnect and reposition harness as necessary.

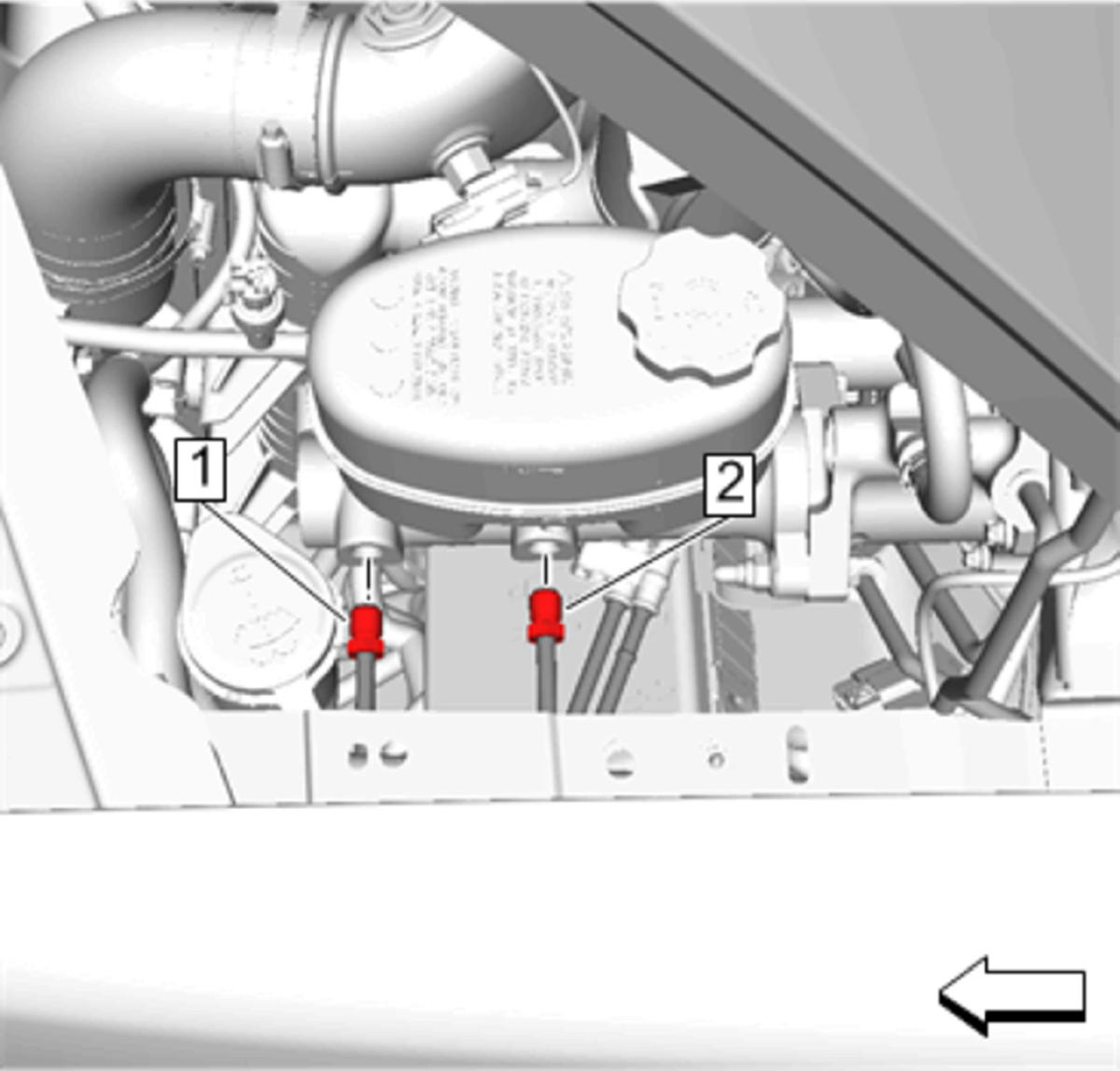

Brake Pressure Modulator Valve Pipe Nut - Front(1) - Disconnect
- Cap the brake pipe fitting and plug the brake master cylinder outlet port to prevent brake fluid loss and contamination.
- Brake Pressure Modulator Valve Pipe Nut - Rear(2) - Disconnect
- Cap the brake pipe fitting and plug the brake master cylinder outlet port to prevent brake fluid loss and contamination.

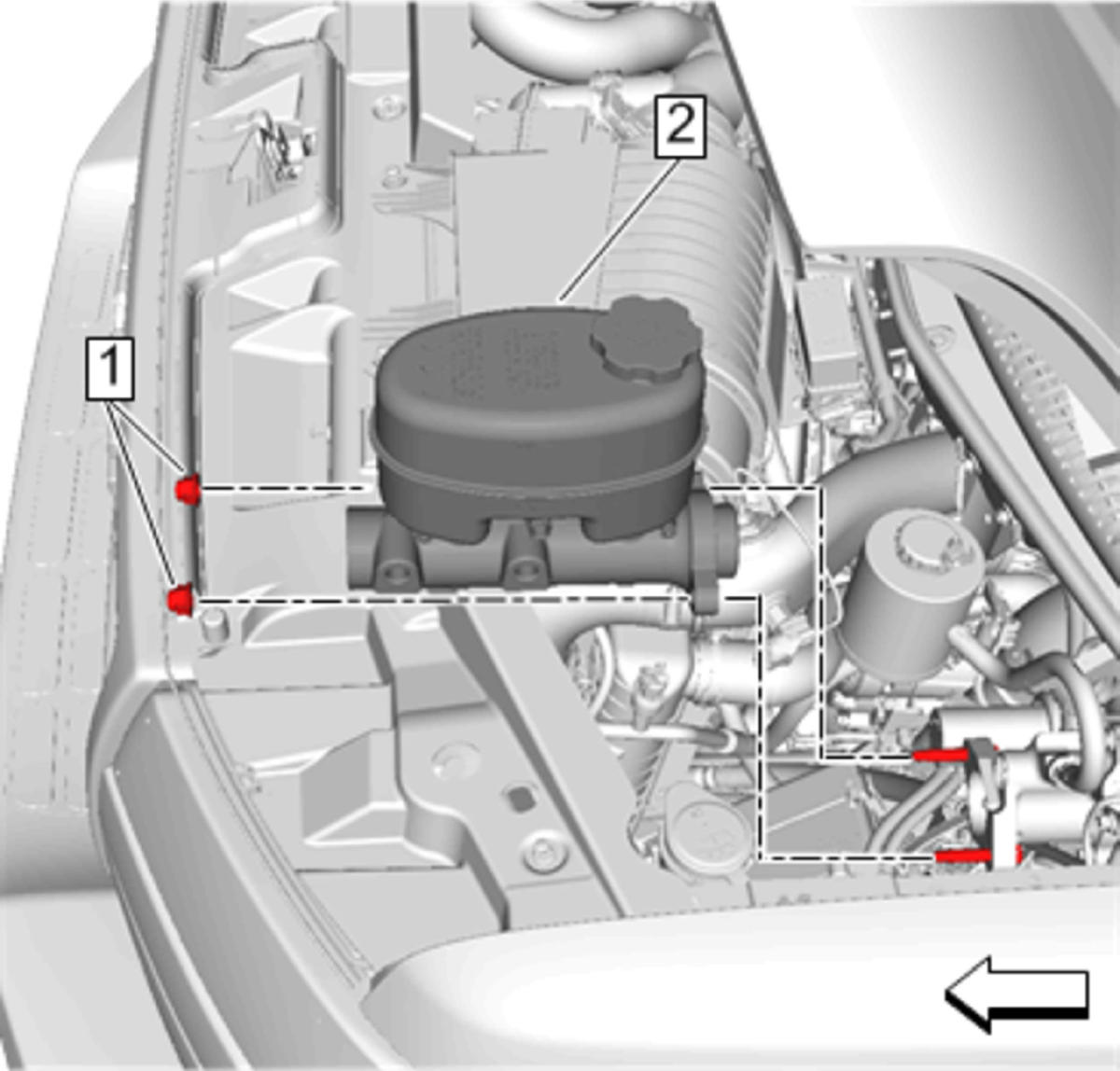

Brake Master Cylinder Nut(1) - Remove[2x]
- Brake Master Cylinder(2) - Remove
