Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Electrical Connector @ Brake Fluid Level Indicator Switch - Disconnect
 Courtesy of GENERAL MOTORS COMPANY
|

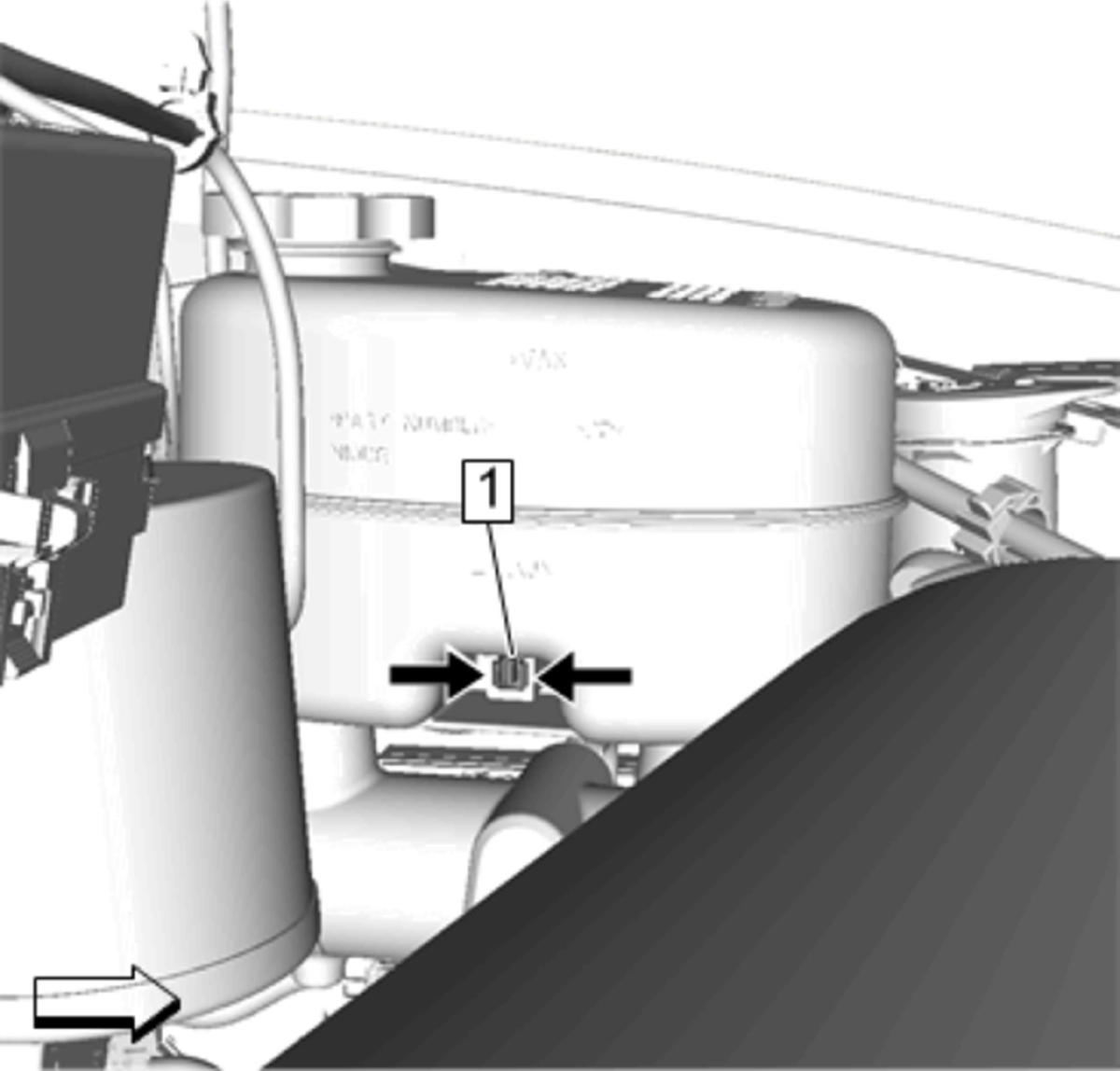

Using a suitable tool, compress the retaining tabs of the brake fluid level indicator switch (1) in the direction shown by the arrows.
 Courtesy of GENERAL MOTORS COMPANY
|

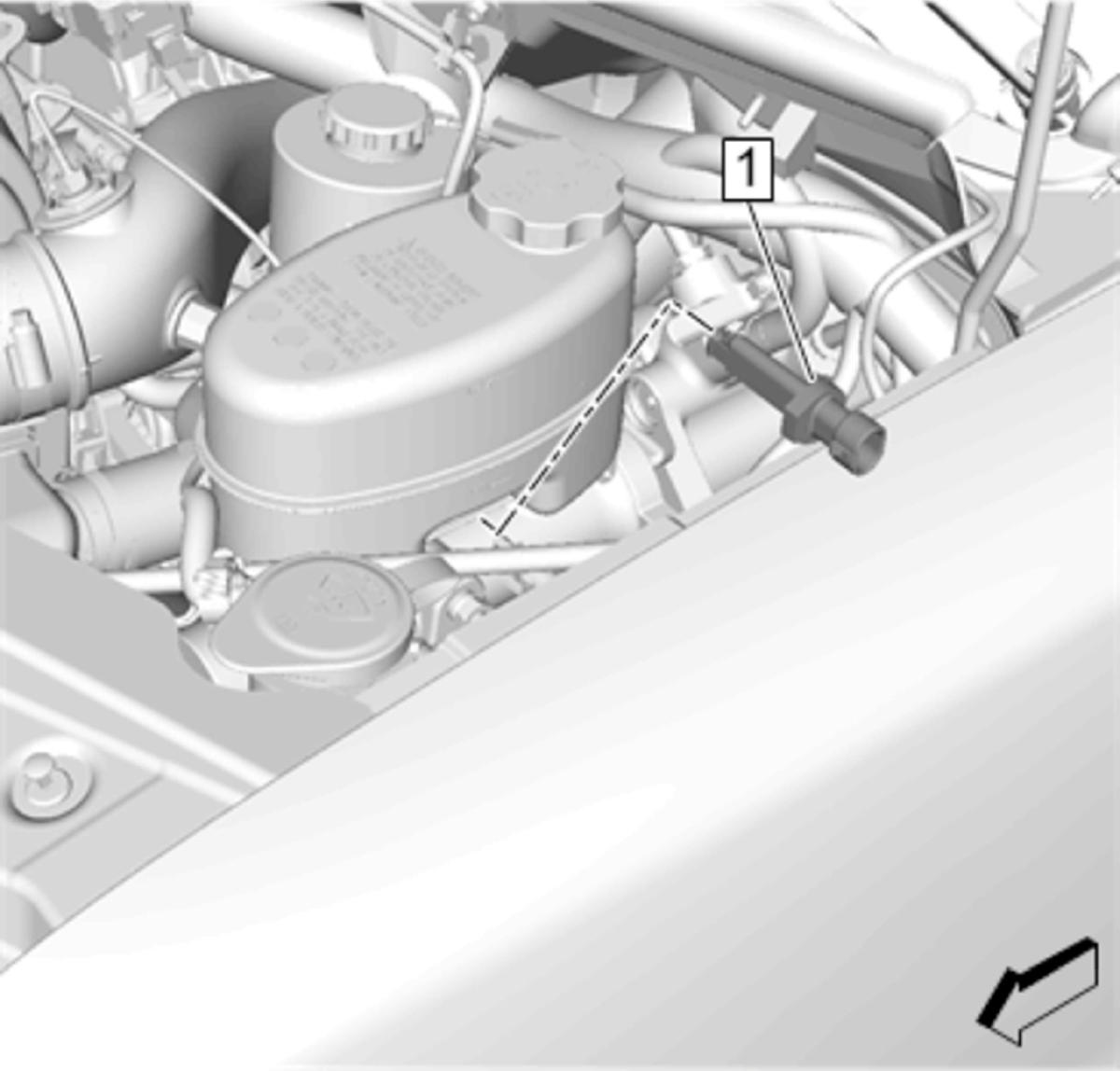

Brake Fluid Level Indicator Switch(1) - Remove
