Steering Wheel Control Switch Assembly Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

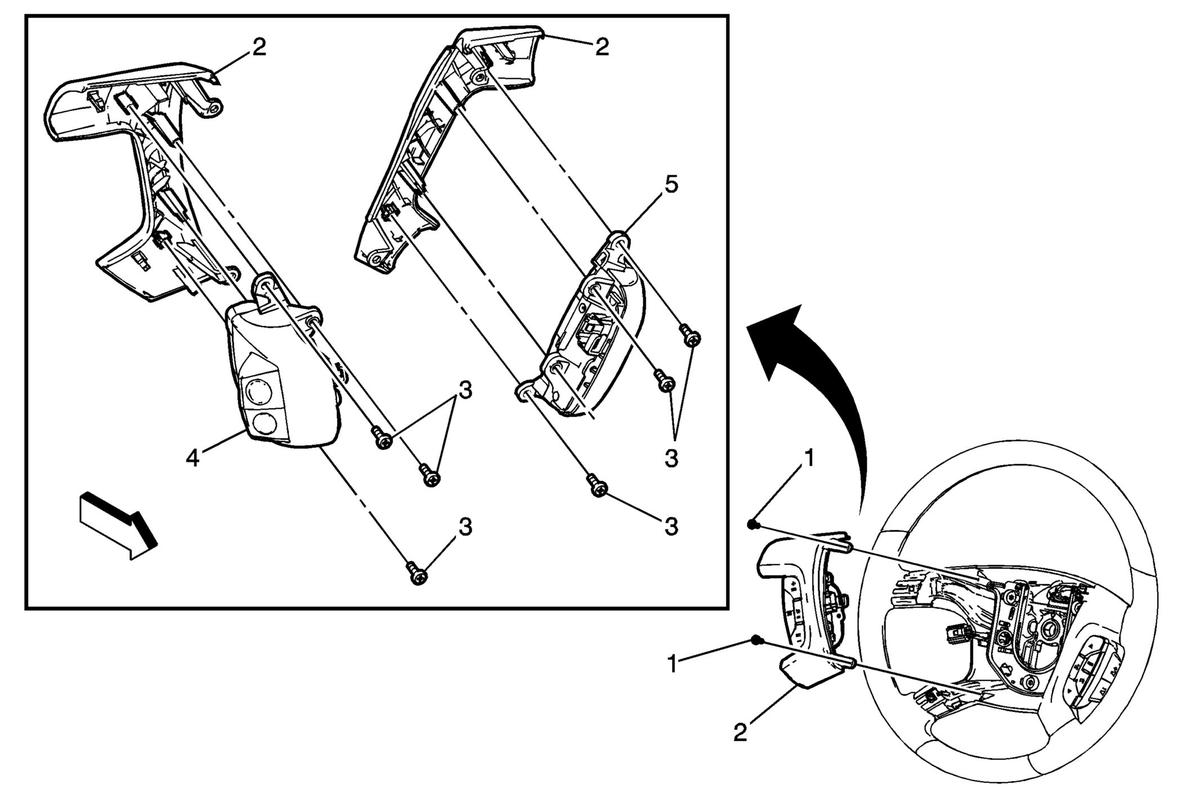

Callout	Component Name
Preliminary Procedure Remove the inflatable restraint steering wheel module. Refer to Airbag Steering Wheel Module Replacement .
1	Steering Wheel Trim Plate Screw (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Steering Wheel Trim Plate (Qty: 2)
3	Radio Control Screw (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
4	Radio Control Switch Assembly Procedure Disconnect the electrical connector. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
5	Cruise Control Switch Assembly Procedure Disconnect the electrical connector. Make sure the steering wheel control switches are properly seated to the steering wheel trim cover during installation.
