Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4824438Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster(1) - Install

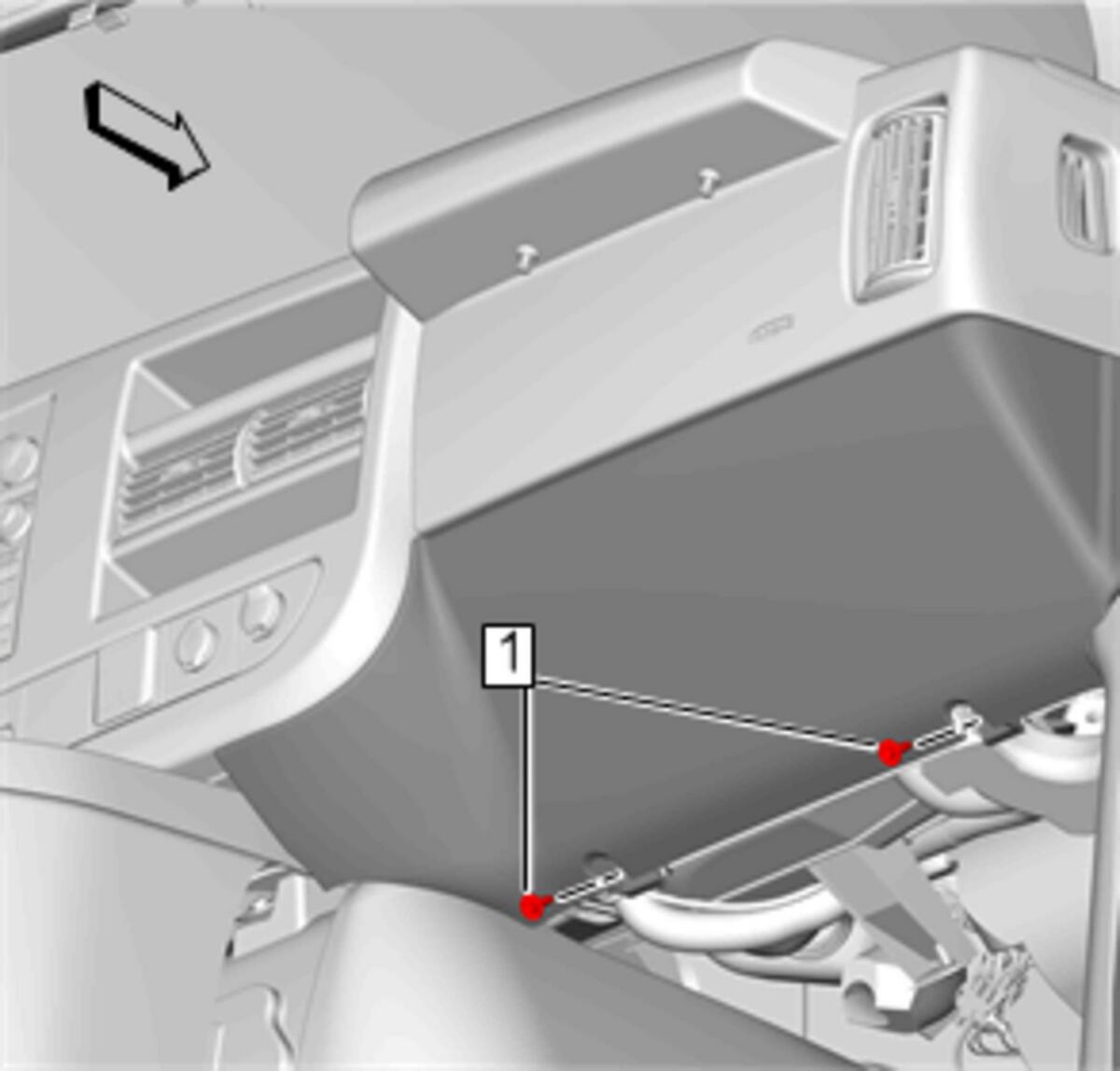

  2. GM4824435Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Driver Knee Bolster Brace Bolt(1) - Install and tighten[2x]3.5N.m (31 lb in)
