Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Knee Bolster Bracket(1) - Install
Courtesy of GENERAL MOTORS COMPANY

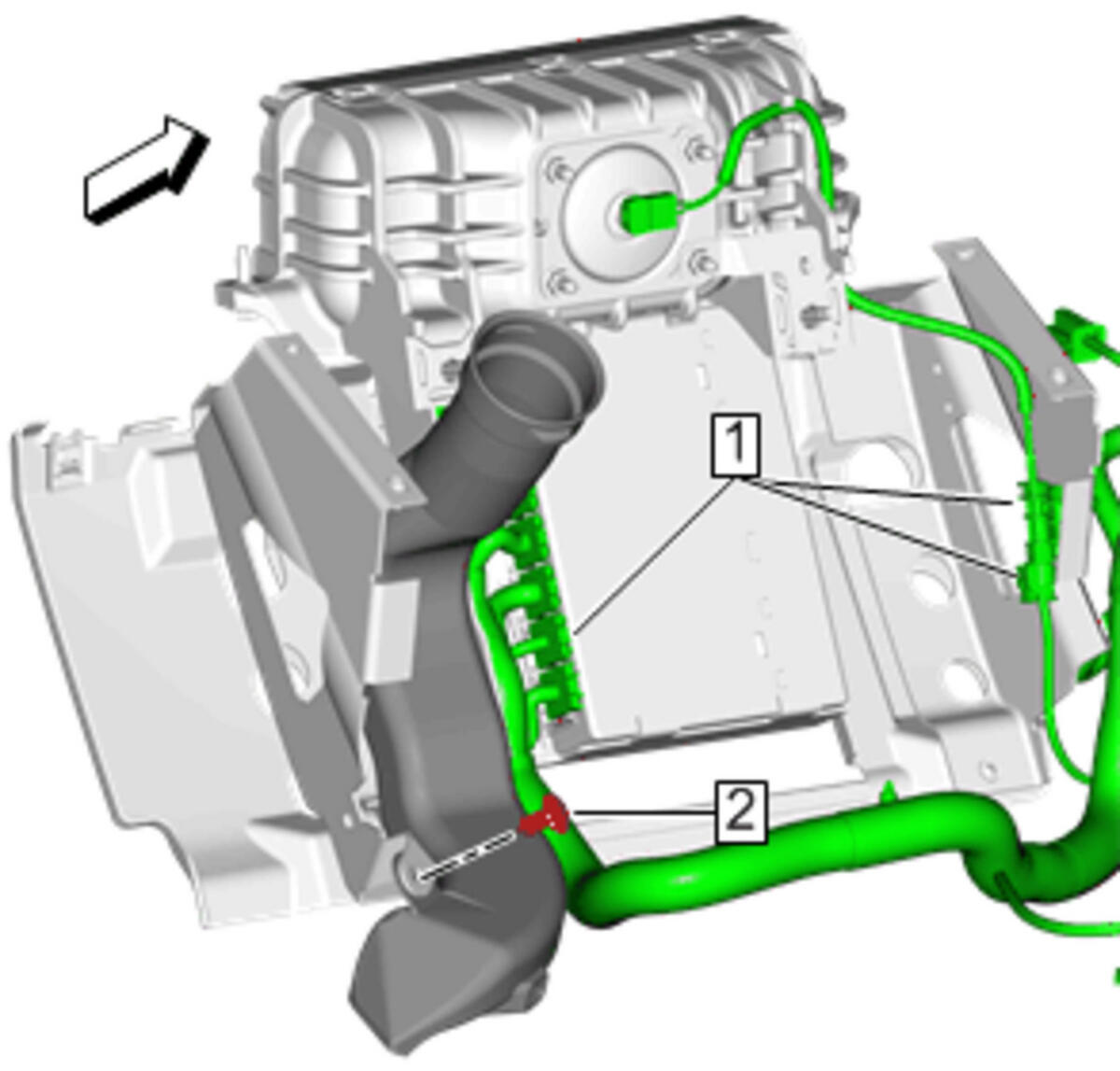

Connect the electrical connectors.(1)
Floor Front Air Outlet Duct Retainer(2) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

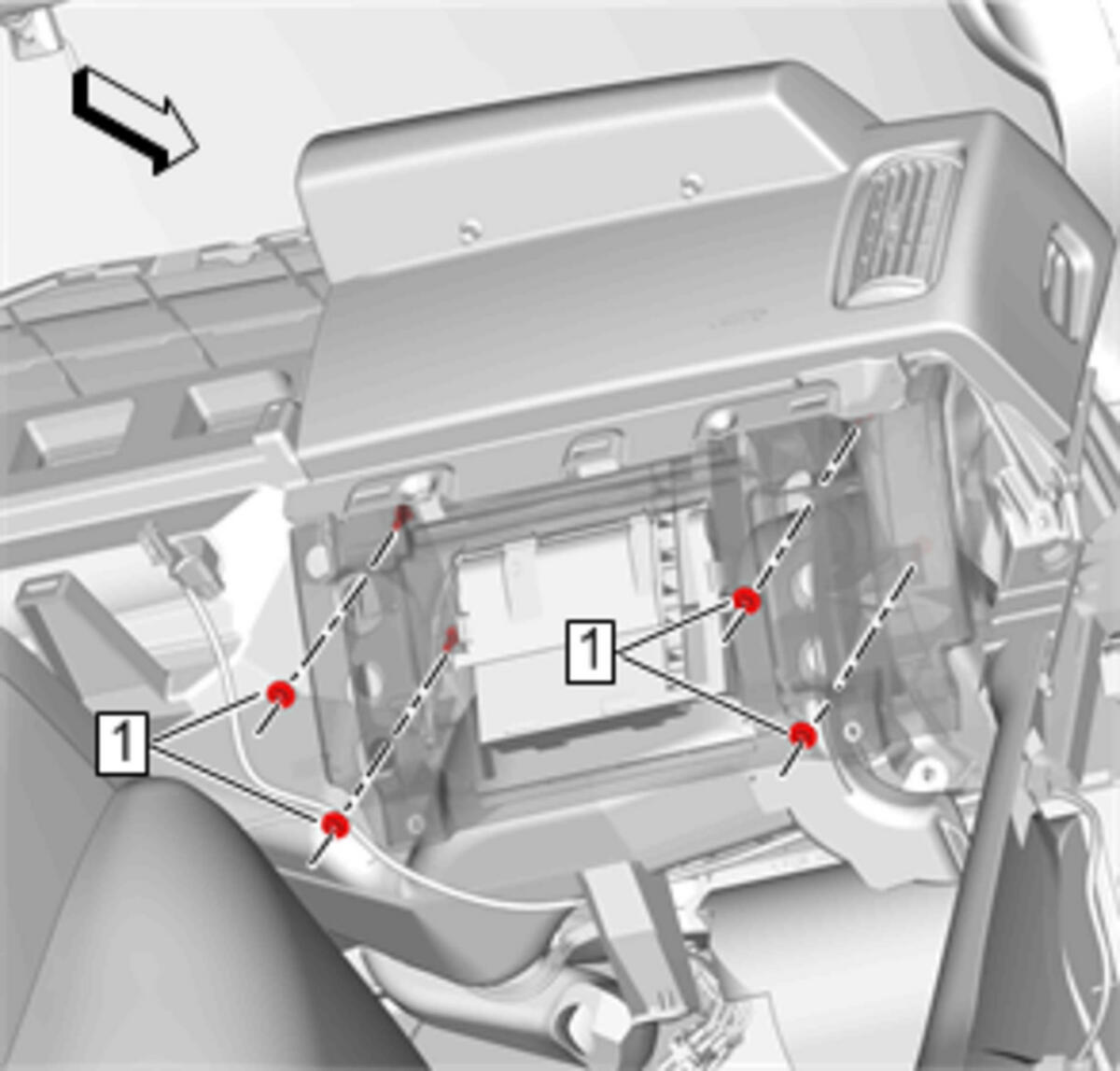

Instrument Panel Knee Bolster Inner Bracket Nut(1) - Install and tighten[4x]10N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

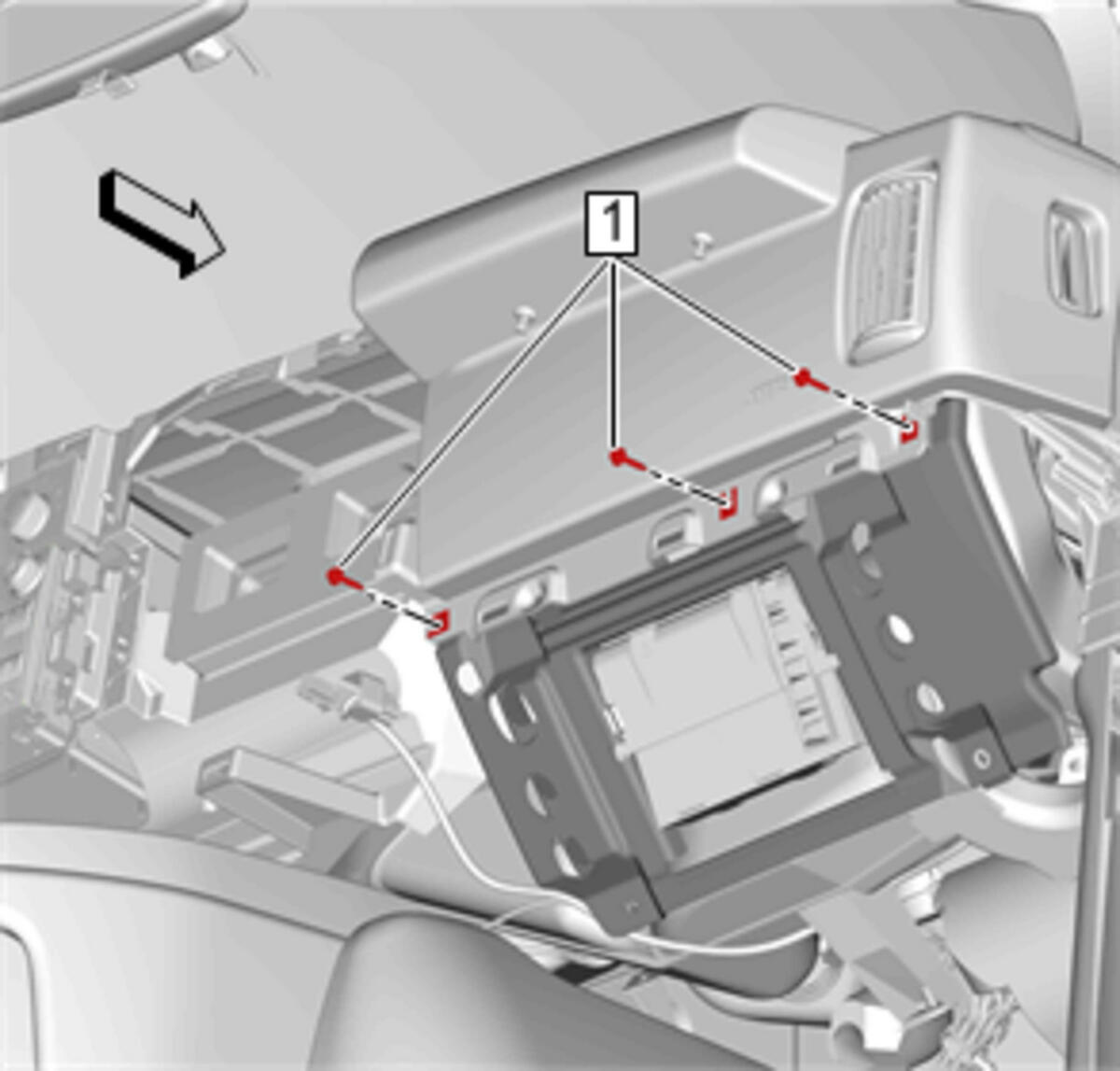

Instrument Panel Trim Pad Bolt(1) - Install and tighten[3x]2.5N.m (22 lb in)
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Cluster Trim Plate(1) - Install - Instrument Panel Cluster Trim Plate Replacement
