Instrument Panel Compartment Door Latch Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

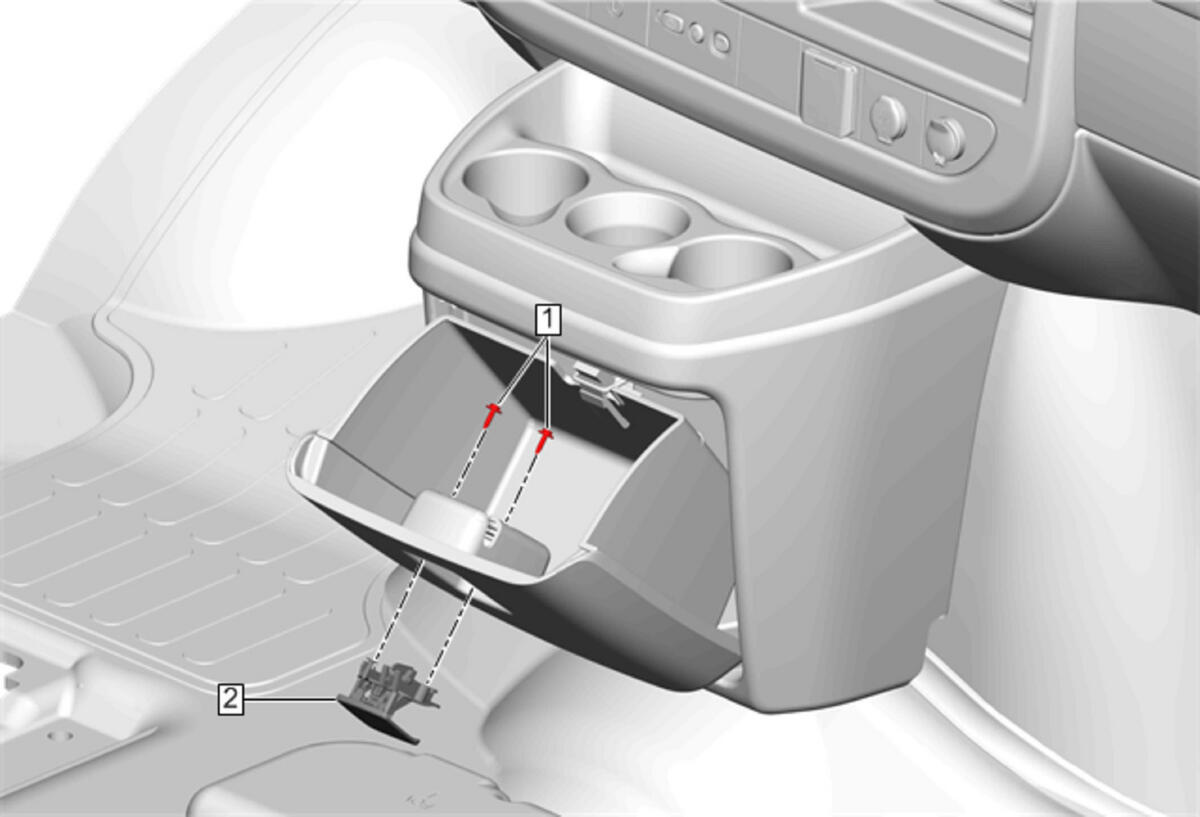

| Callout | Component Name |
|---|---|
| 1 | Instrument Panel Lower Compartment Door Lock Bolt[2x]
CAUTION:
Refer to Fastener Caution . Tighten 3N.m (27 lb in) |
| 2 | Instrument Panel Compartment Door Latch |
