Rear Wheel Opening Molding Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

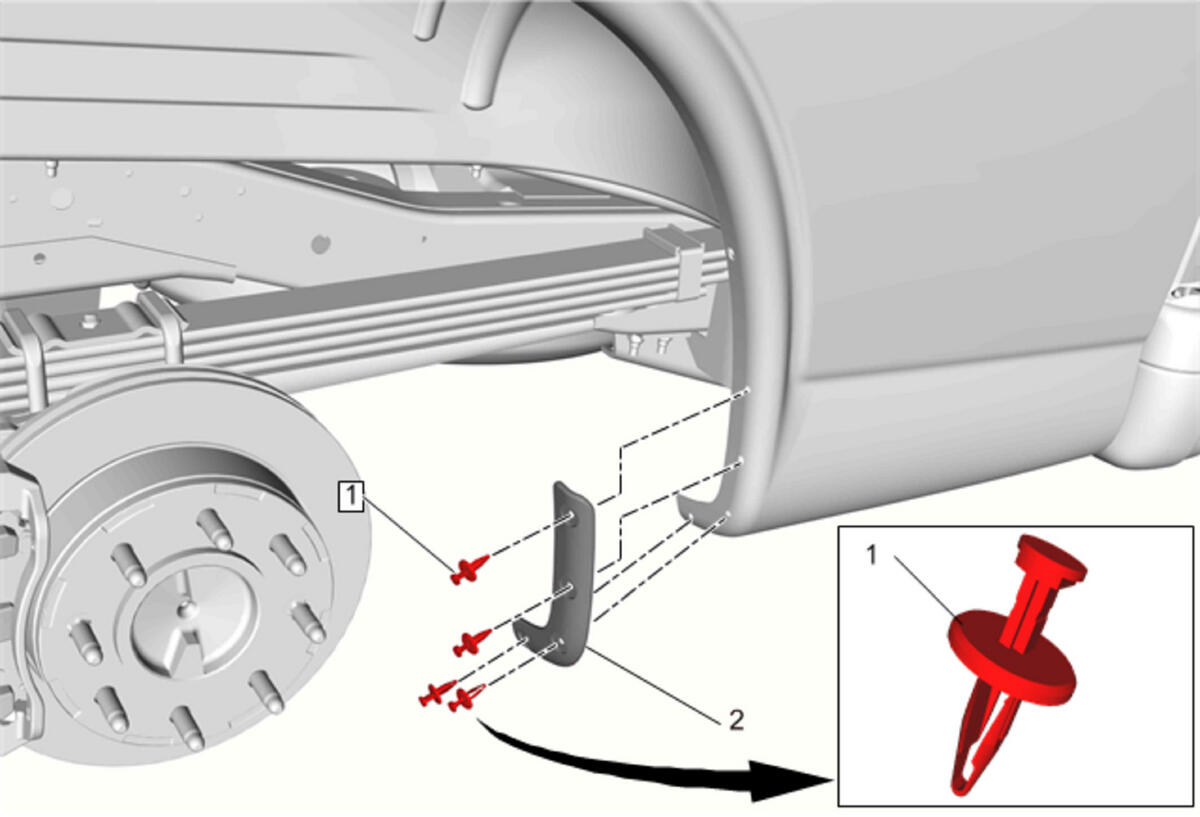

GM4846078Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Wheel Opening Molding Retainer[4x]
2 Rear Wheel Opening Molding
Procedure
Pull the molding from the rear wheel-house panel.
