Vehicle Jacking and Supporting

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

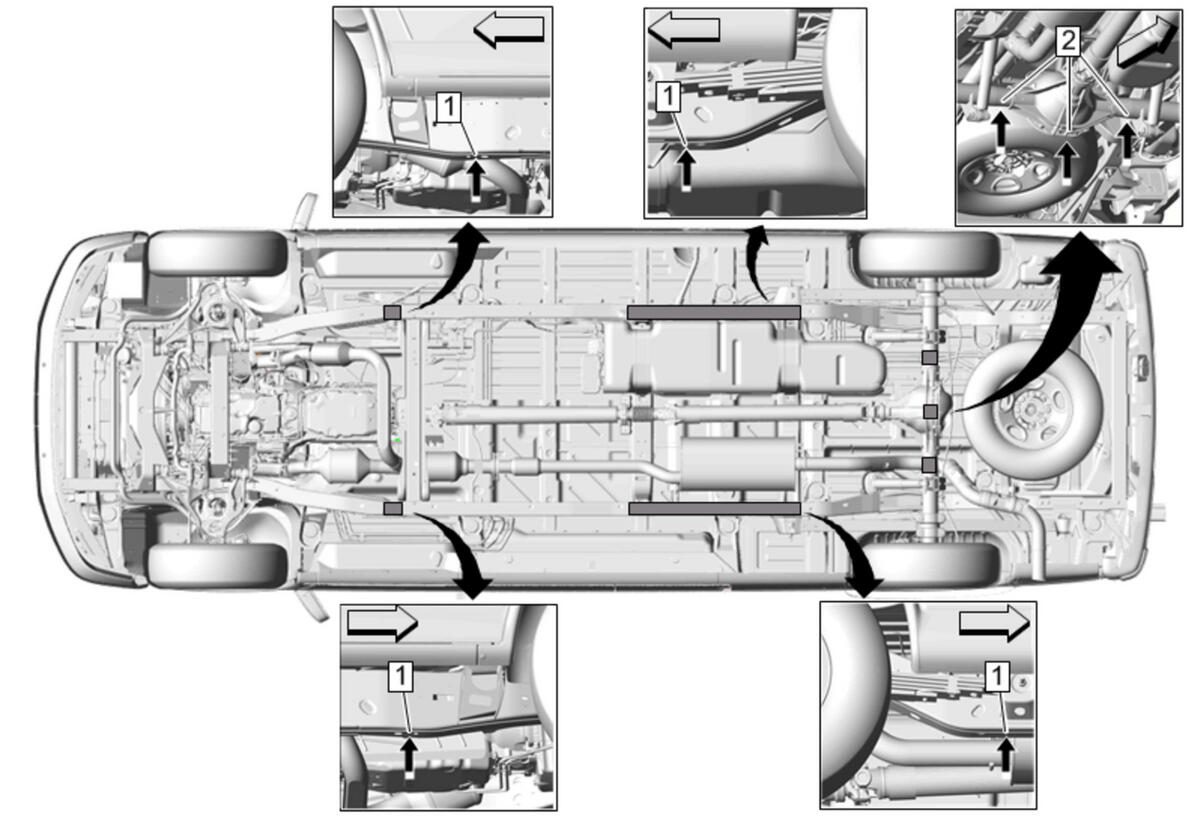

Fig 1: Lifting and Jacking Points

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

When you are jacking the vehicle at the front locations, be certain that the jack or the jack lift pad does not contact the front fascia, front fascia air dam, or the front fenders. If such contact occurs, vehicle damage may result. When jacking at selected front locations additional clearance may be required for the jacking points.

NOTE:

When you are lifting a vehicle with a service jack, block the wheels at the opposite end from which you are lifting. Use jack stands to provide additional support.
Be sure to place a block pad between the jack lift surface and the vehicle or utilize an integrated jack with pad to prevent underbody damage.

Front of Vehicle

When lifting the Front of the vehicle with a service jack, only lift the vehicle on the frame lift point (1), as shown.

When supporting the Front of the vehicle with a service jack stand, only support the vehicle on the frame location (1), as shown.

Rear of Vehicle

When lifting the Rear of the vehicle with a service jack, only lift the vehicle on the frame lift point (1), as shown.

When supporting the Rear of the vehicle with a service jack stand, only support the vehicle on the pad location (1), as shown.

Secondary floor jack lift points (2) should be considered whenever possible.
