Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

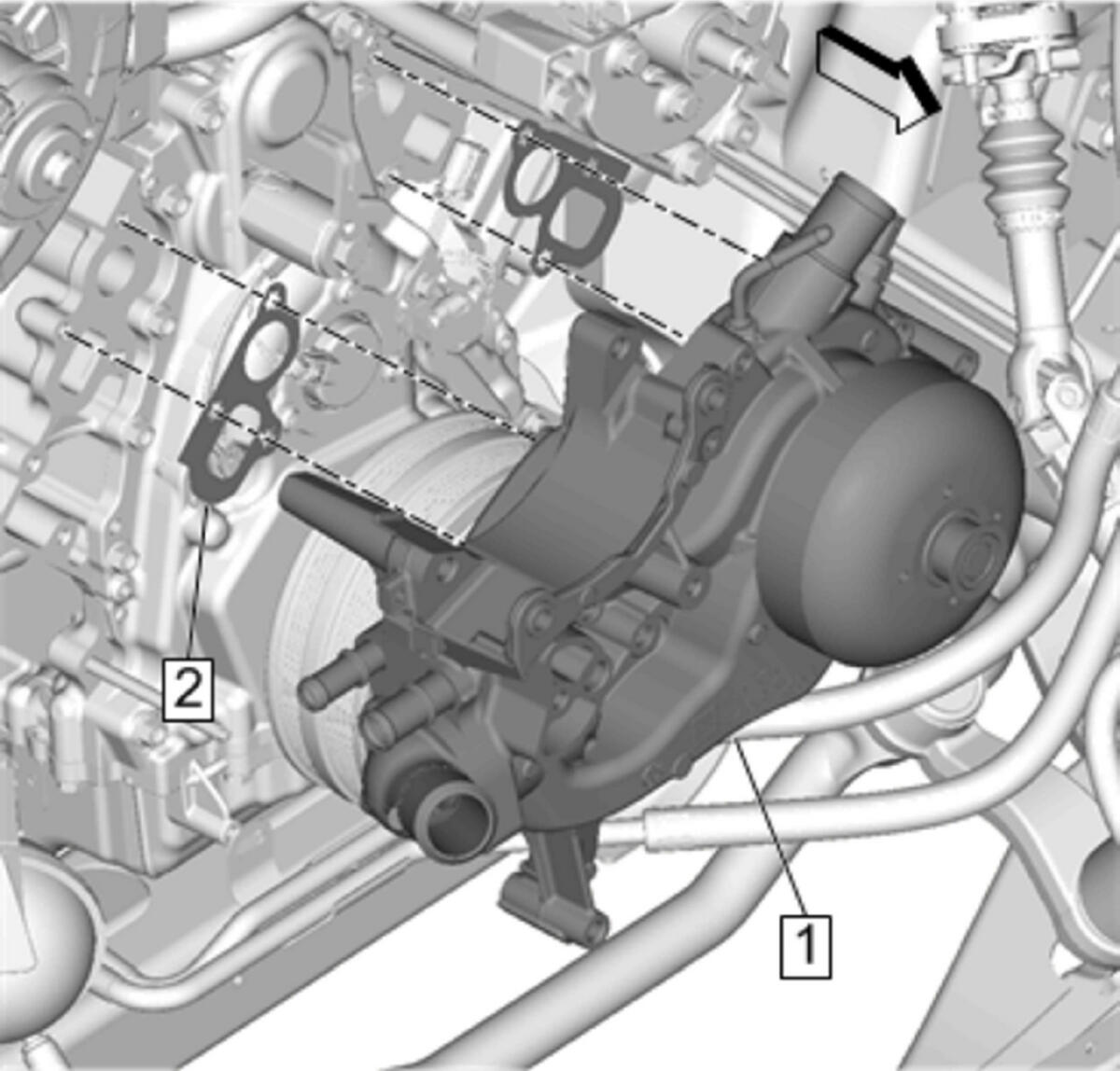

Water Pump Gasket(2) - Install a NEW gasket.[2x]
Water Pump(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

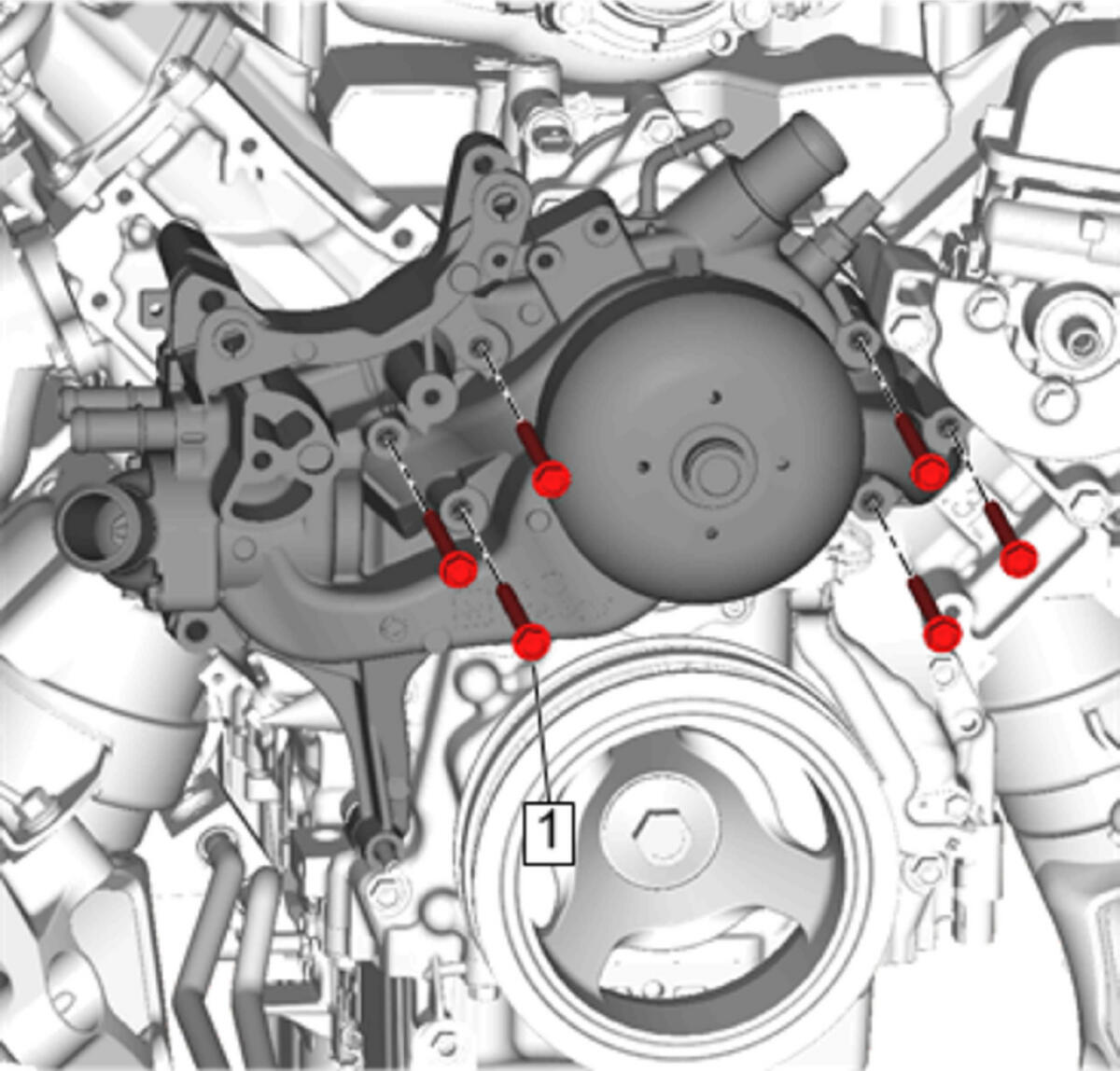

Water Pump Bolt(1) - Install and tighten [6x] 25 N.m (18 lb ft)
Courtesy of GENERAL MOTORS COMPANY

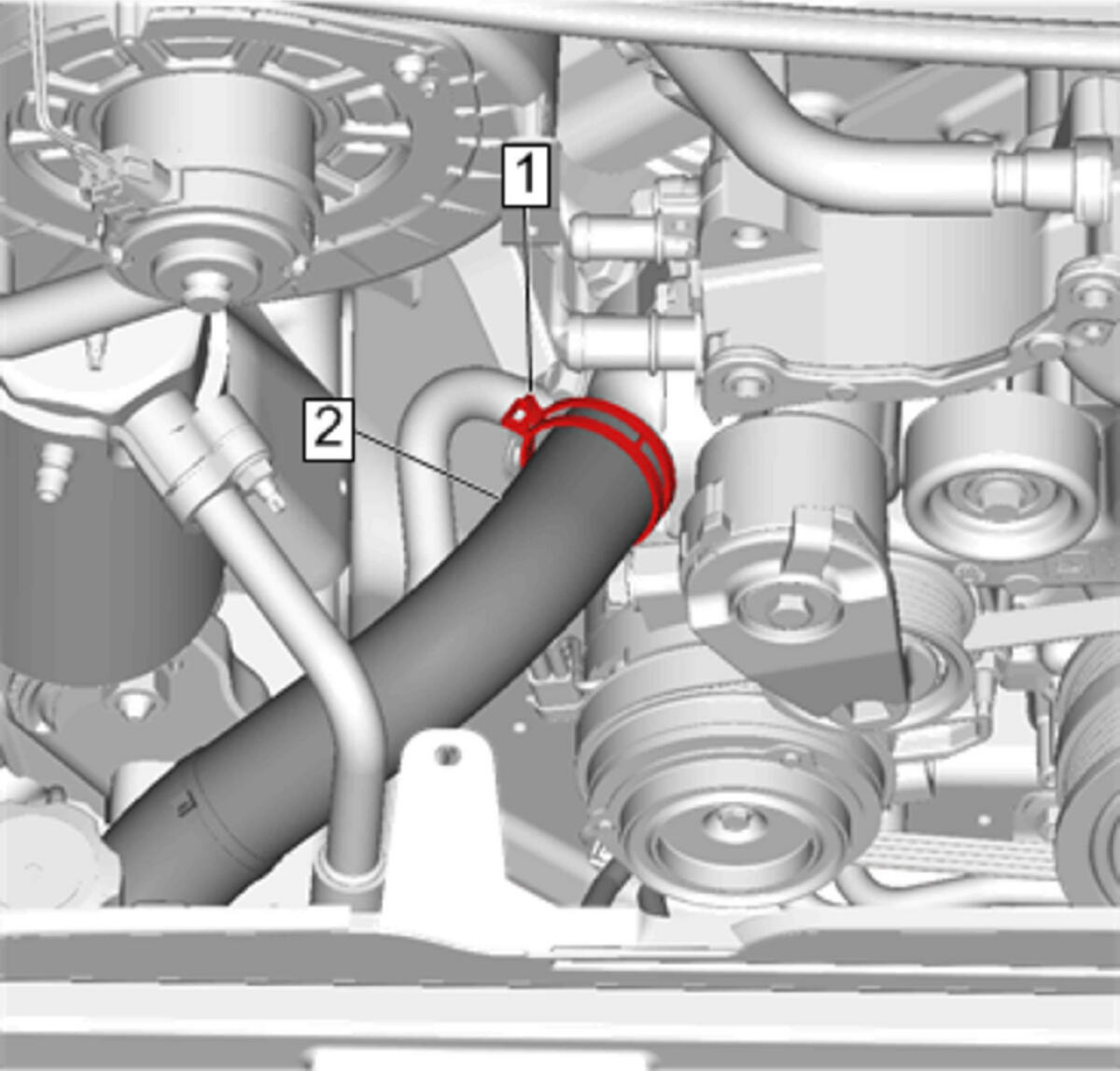

Radiator Outlet Hose(2) - Install
Radiator Outlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

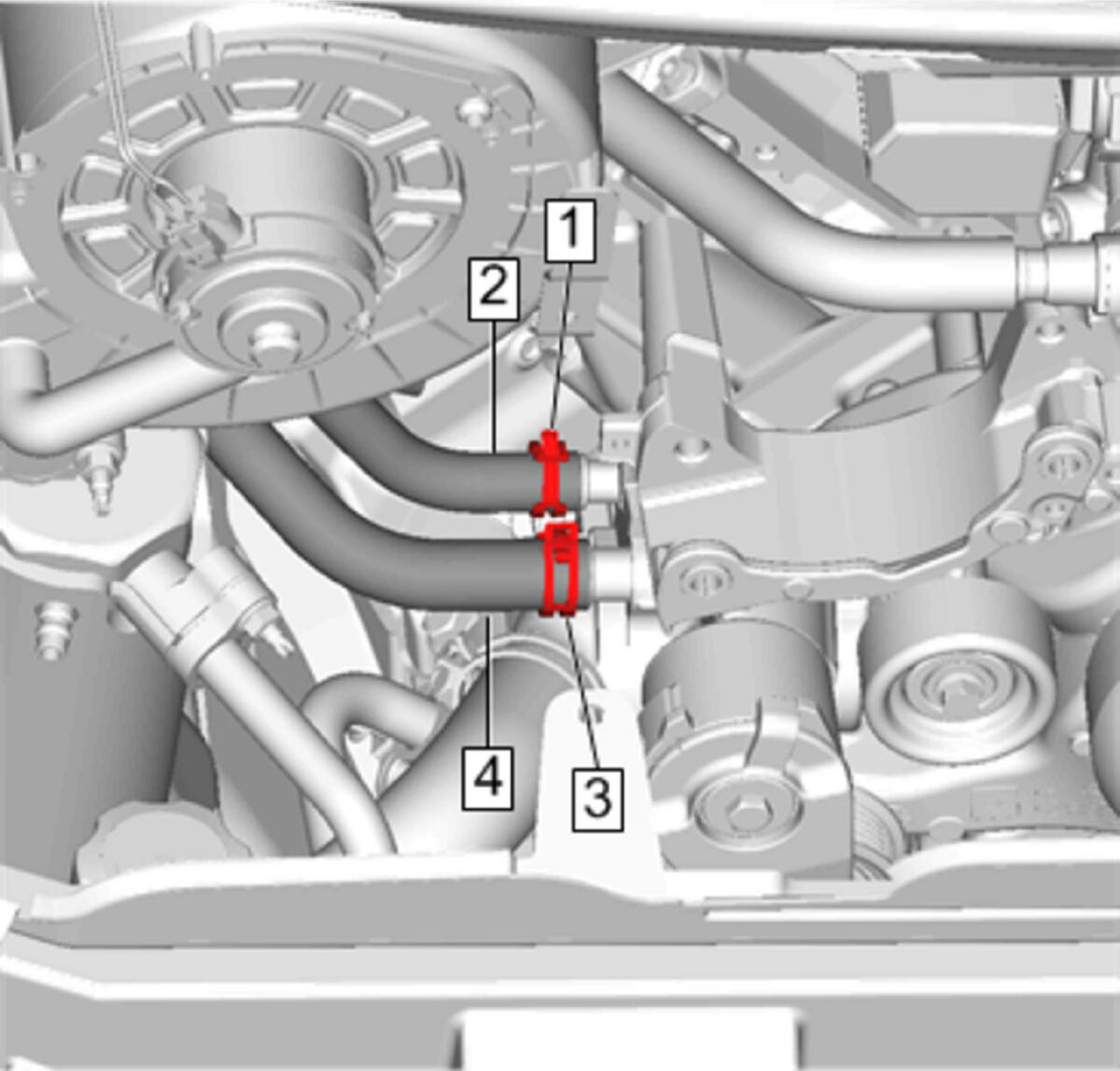

Heater Inlet Hose(4) - Install
Heater Inlet Hose Clamp(3) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Heater Outlet Hose(2) - Install
Heater Outlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

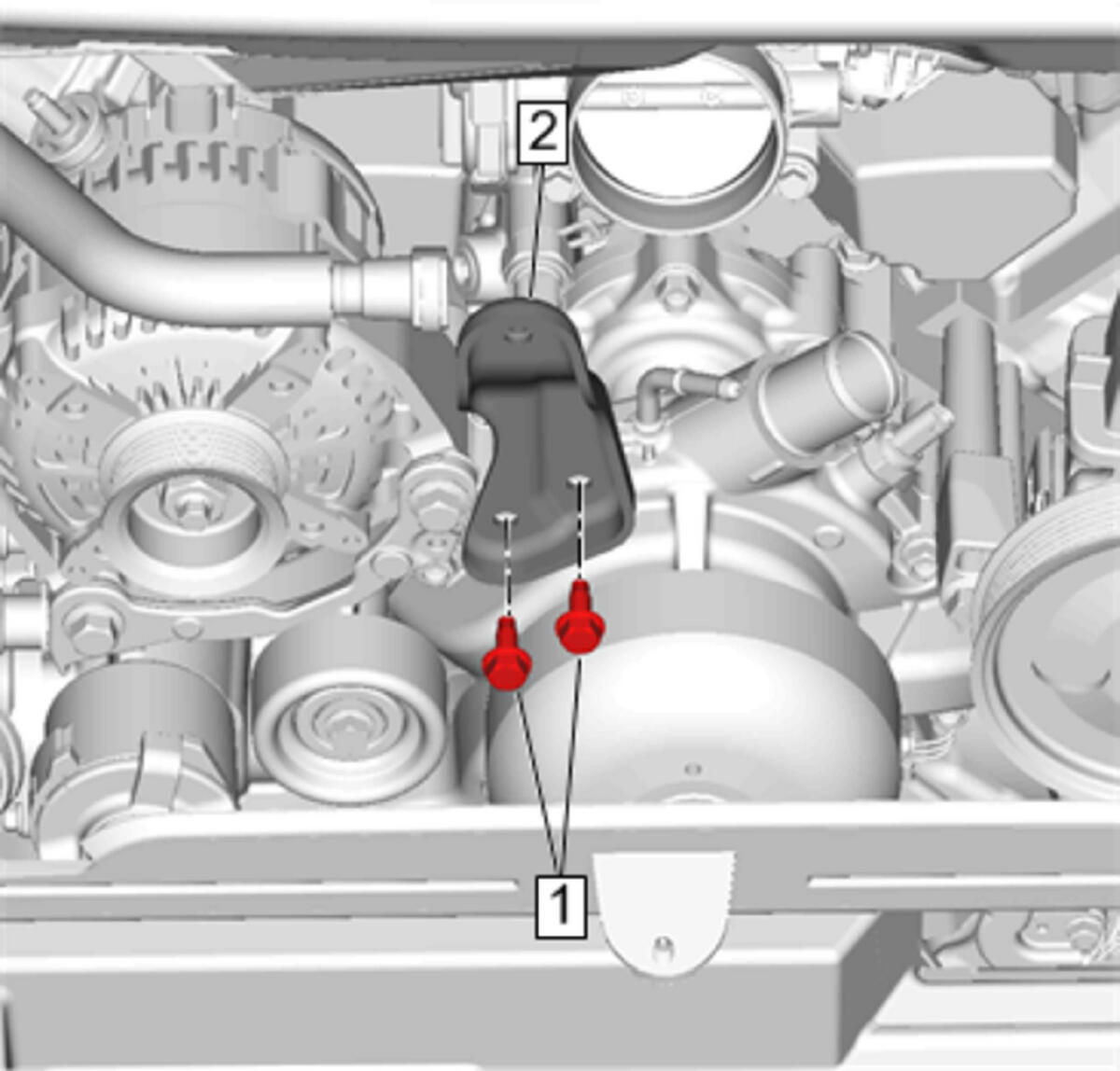

Engine Cooling Fan Bracket (2) - Install
Engine Cooling Fan Bracket Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
Courtesy of GENERAL MOTORS COMPANY

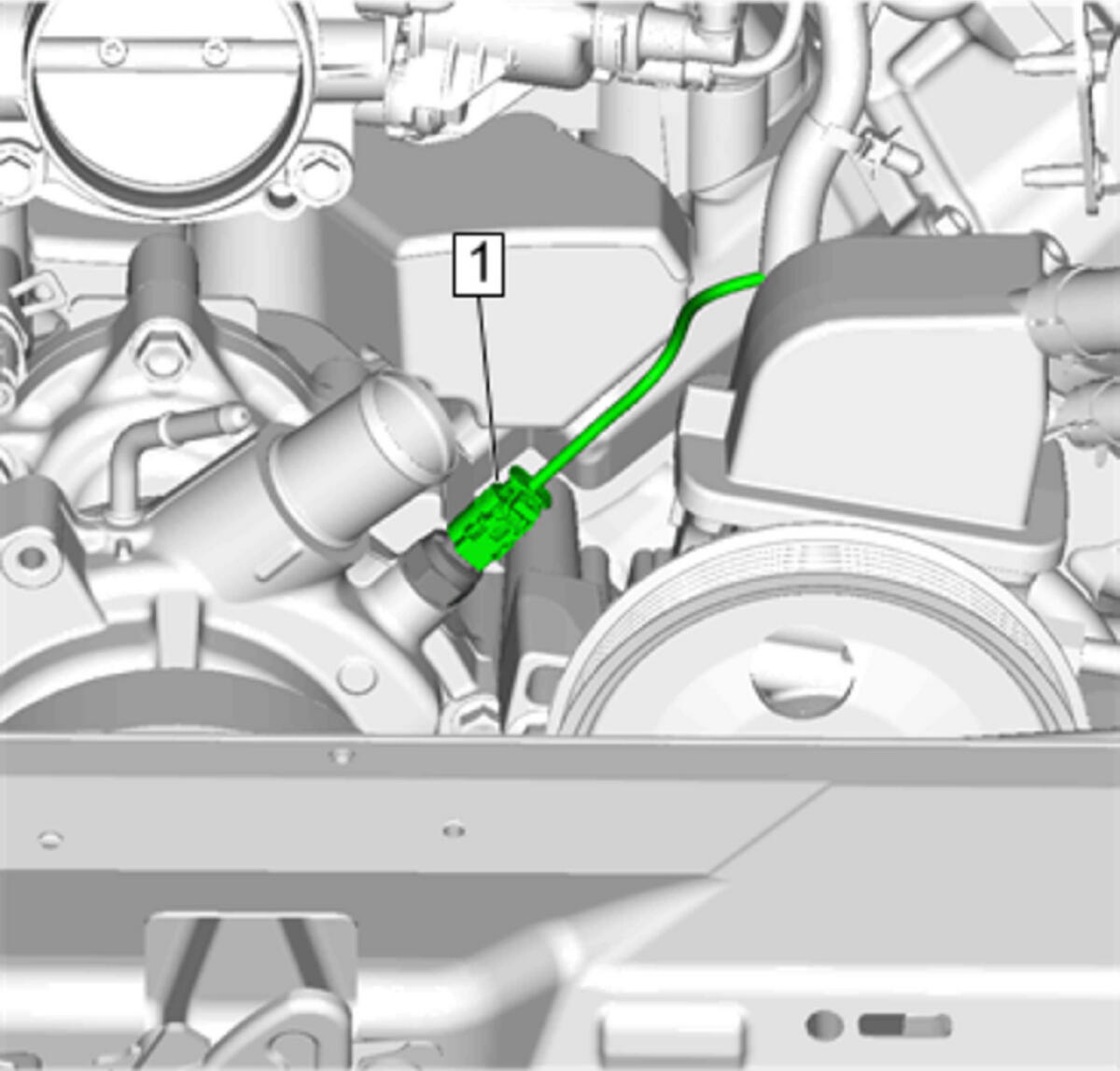

Engine Coolant Temperature Sensor Electrical Connector(1) - Connect
Courtesy of GENERAL MOTORS COMPANY

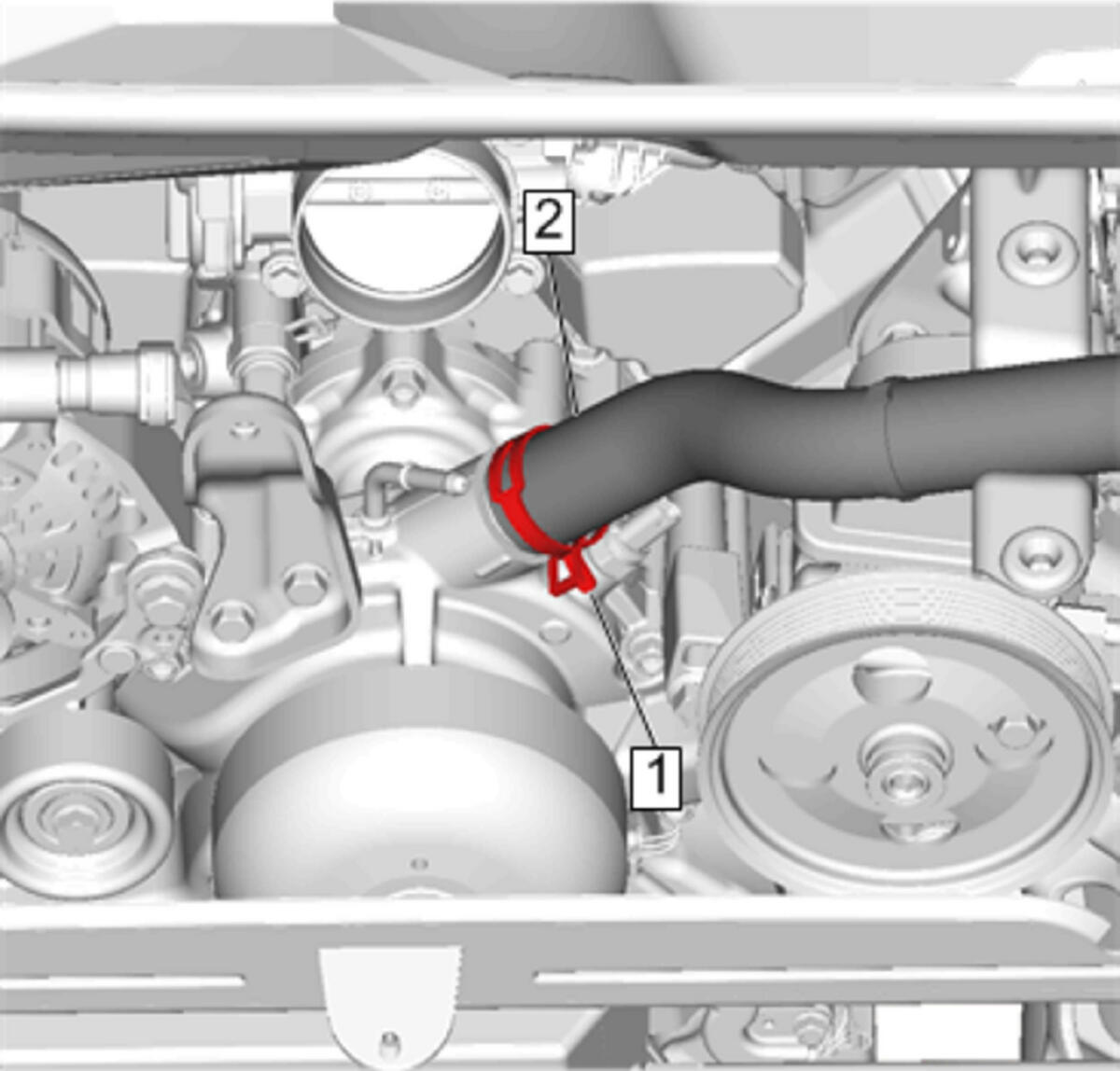

Radiator Inlet Hose(2) - Install
Radiator Inlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Courtesy of GENERAL MOTORS COMPANY

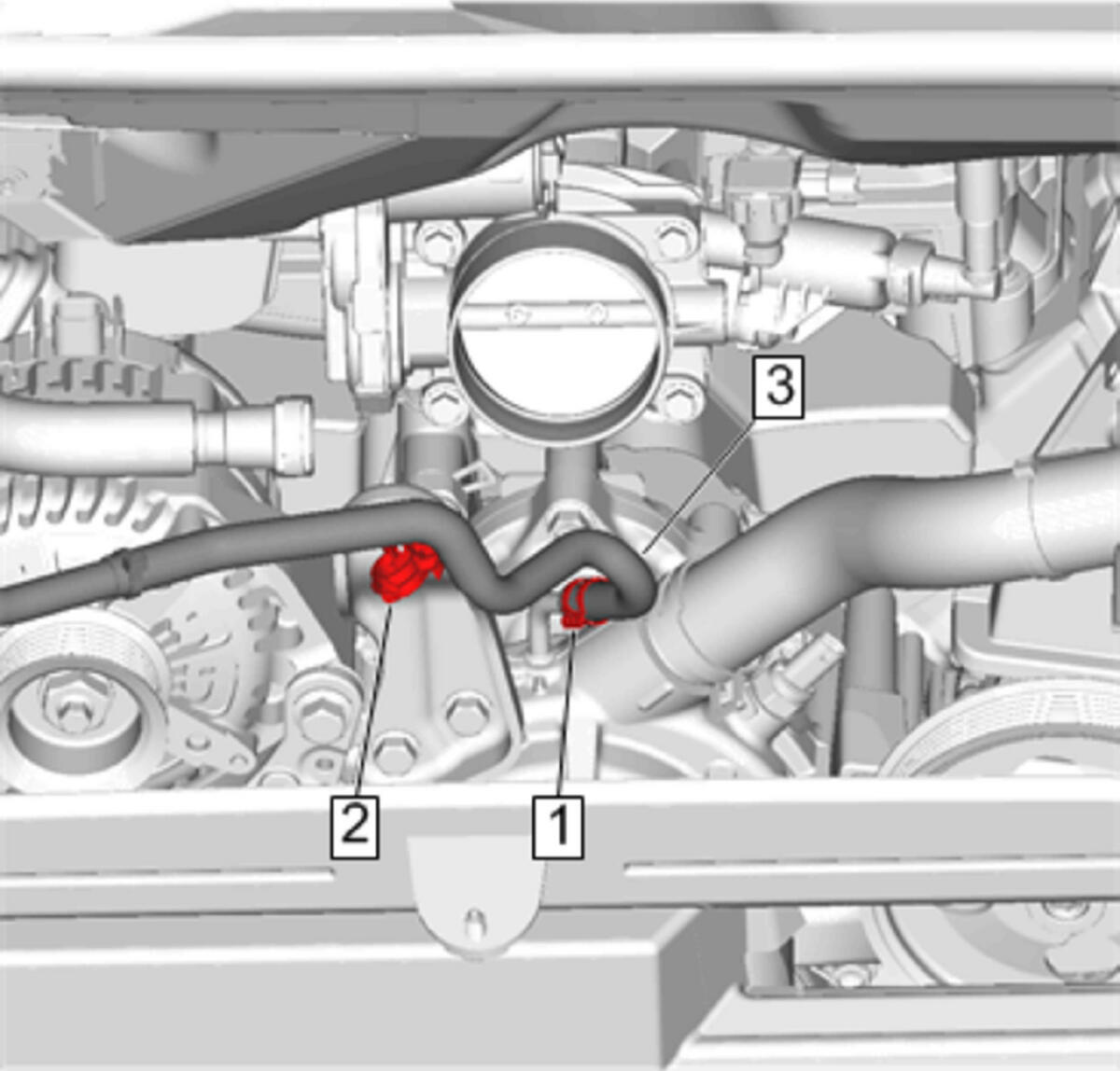

Radiator Vent Outlet Hose(3) - Install
Radiator Vent Outlet Hose Clip(2) @ Engine Cooling Fan Bracket - Install
Radiator Vent Outlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Air Conditioning Compressor Bracket - Install - Air Conditioning Compressor Bracket Replacement (LWN) , or Air Conditioning Compressor Bracket Replacement (L96, LC8) , or Air Conditioning Compressor Bracket Replacement (LV1)
Power Steering Pump Pulley - Install - Power Steering Pump Pulley Replacement (Without LWN) , or Power Steering Pump Pulley Replacement (With LWN)
Drive Belt Tensioner - Install - Drive Belt Tensioner Replacement - Accessory
Drive Belt Idler Pulley - Install - Drive Belt Idler Pulley Replacement
Generator - Install - Generator Replacement (LWN) , or Generator Replacement (L96, LC8) , or Generator Replacement (LV1 with K68) , or Generator Replacement (LV1 with KW5/KG4)
Engine Coolant Fan Lower Shroud - Install - Engine Coolant Fan Lower Shroud Replacement (LWN) , or Engine Coolant Fan Lower Shroud Replacement (LV1) , or Engine Coolant Fan Lower Shroud Replacement (L96, LC8)
Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Start the engine and check for coolant leaks.
