Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Surge Tank(1) - Install
- CAUTION:
Refer to Fastener Caution .

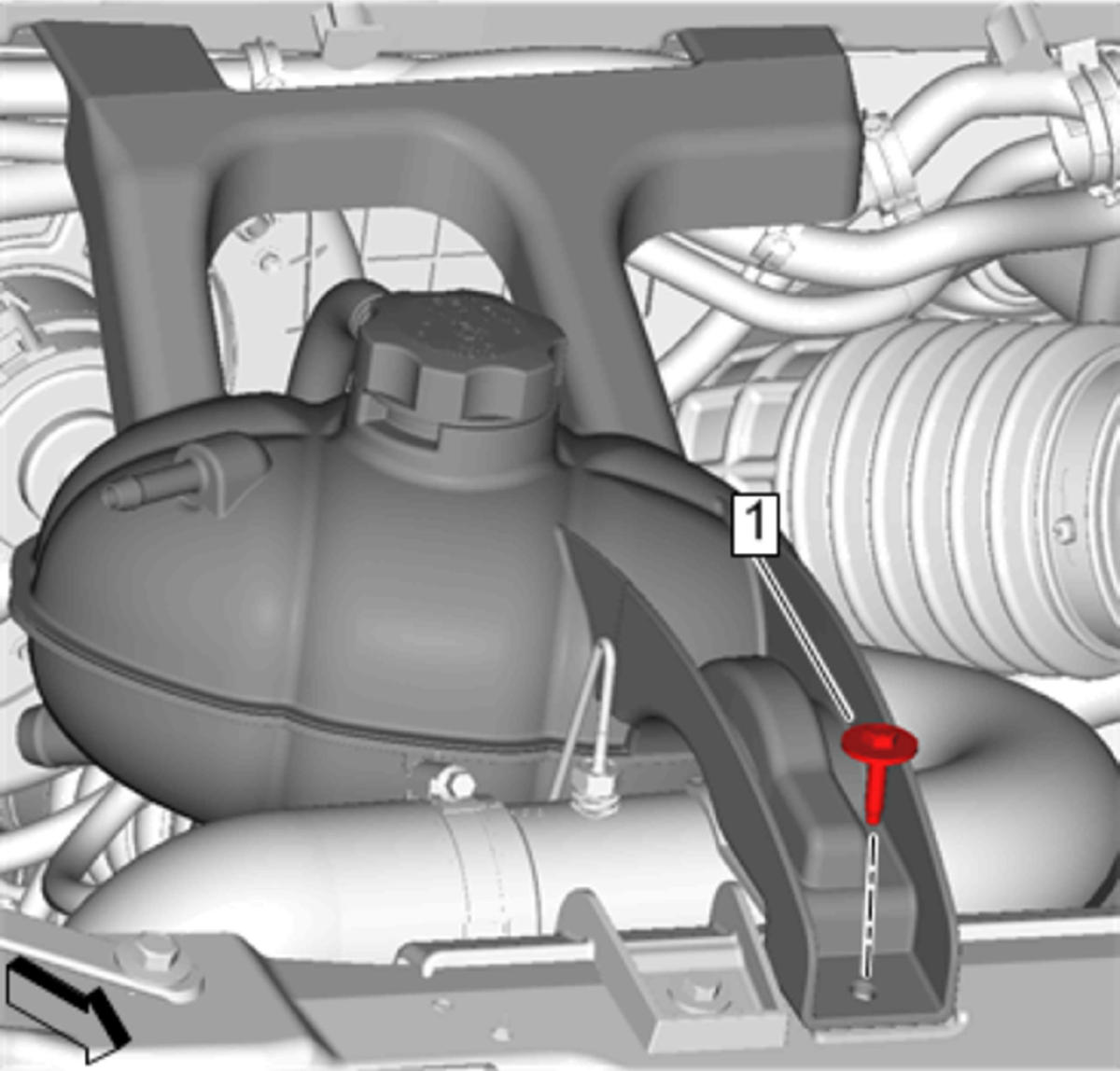

Radiator Surge Tank Bolt(1) @ Radiator Surge Tank - Install and tighten9 N.m (80 lb in)

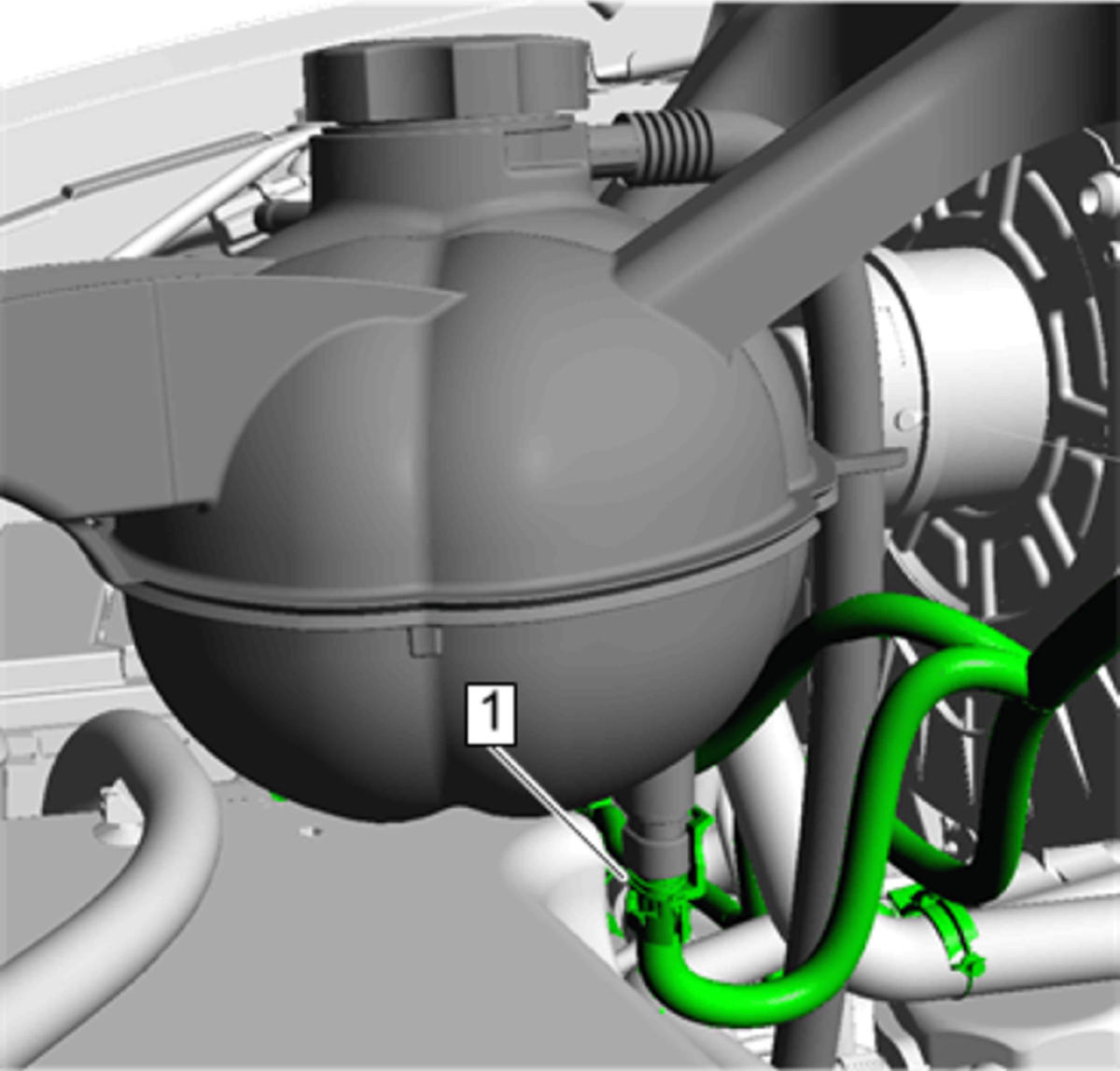

Electrical Connector(1) @ Radiator Surge Tank - Connect

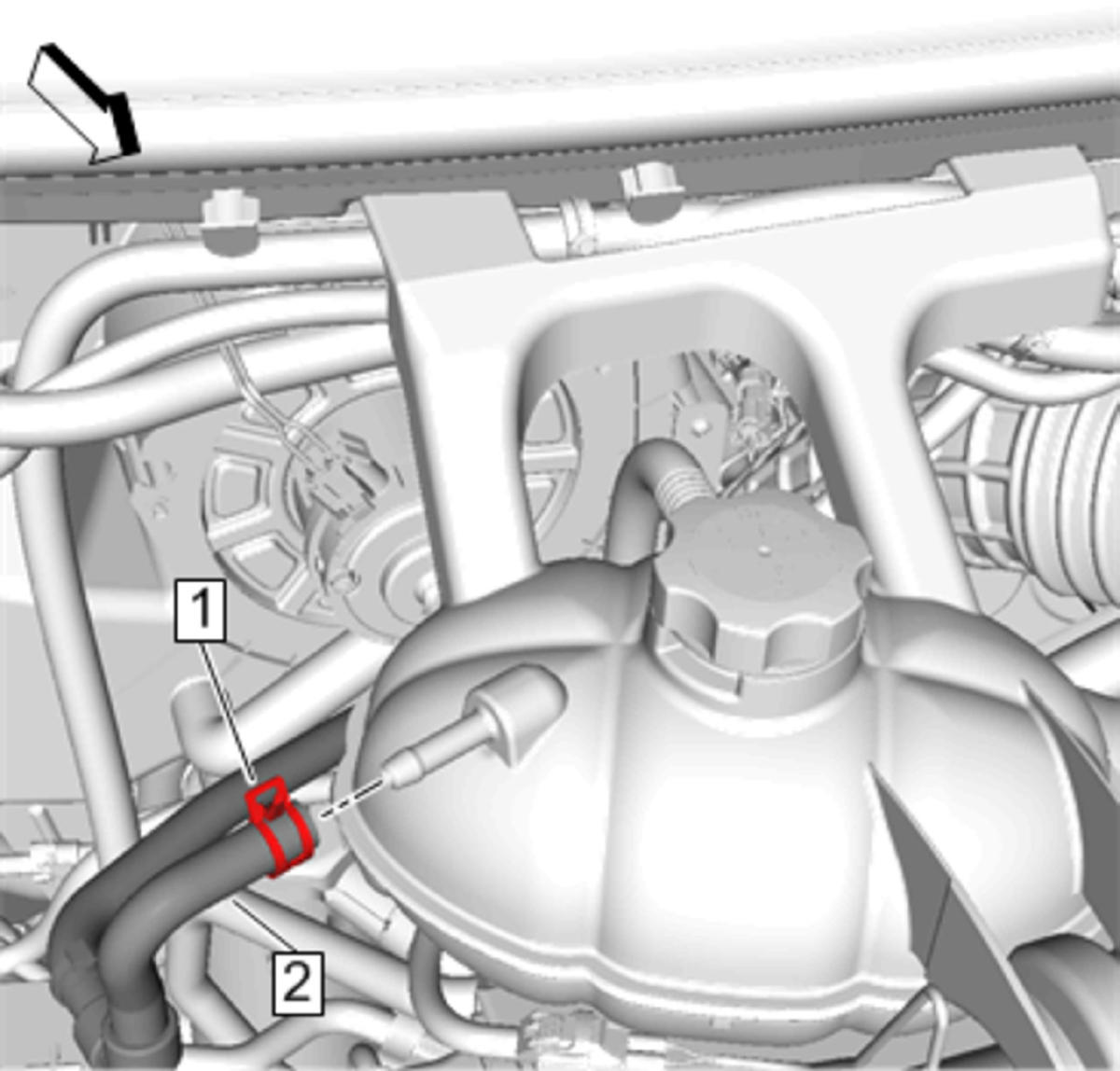

Radiator Vent Inlet Hose(2) @ Radiator Surge Tank - Install - Radiator Vent Inlet Hose Replacement (LWN) , or Radiator Vent Inlet Hose Replacement (L96, LC8)

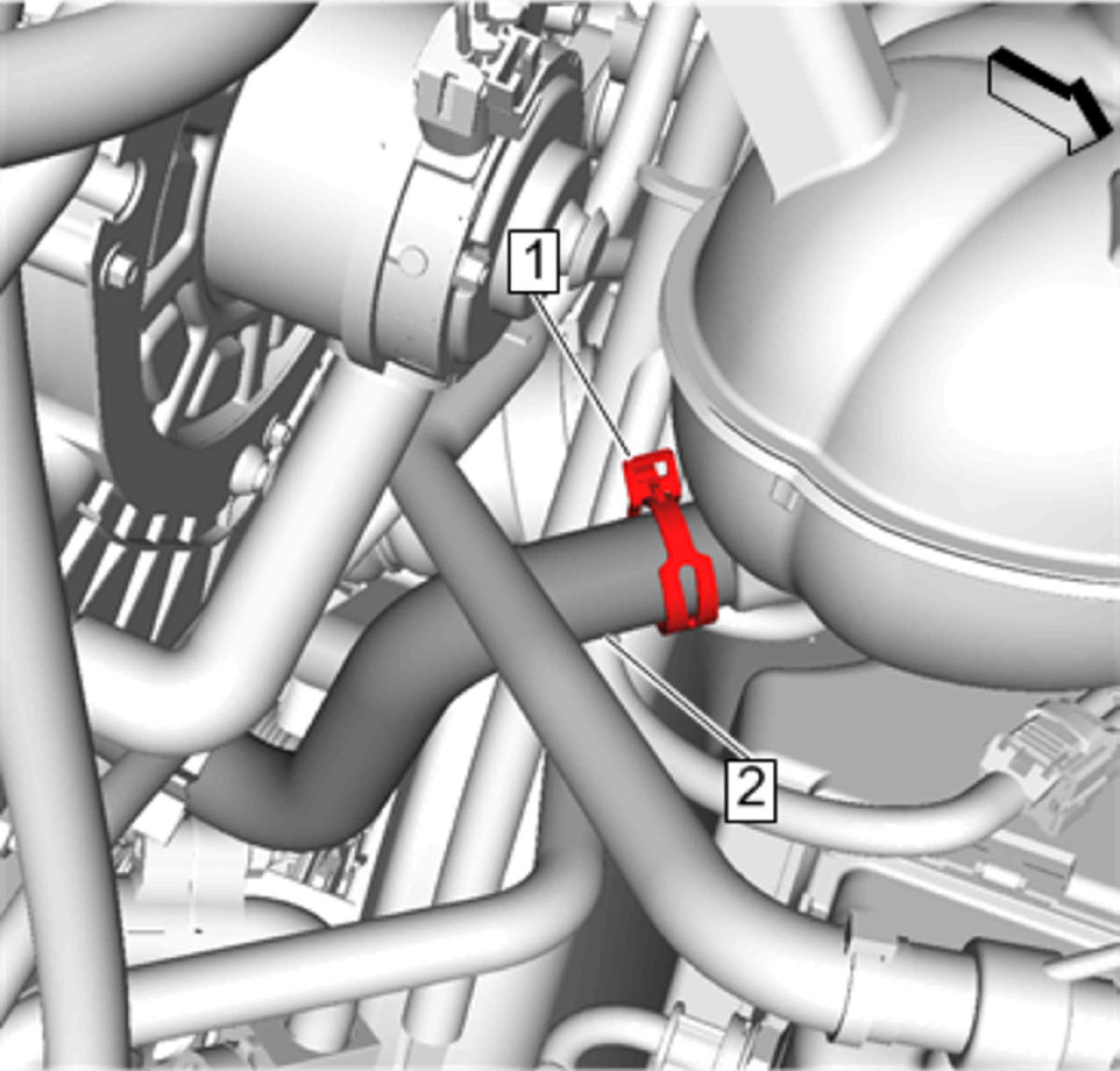

Heater Water Bypass Outlet Hose(2) @ Radiator Surge Tank - Install - Heater Water Bypass Outlet Hose Replacement (LWN)

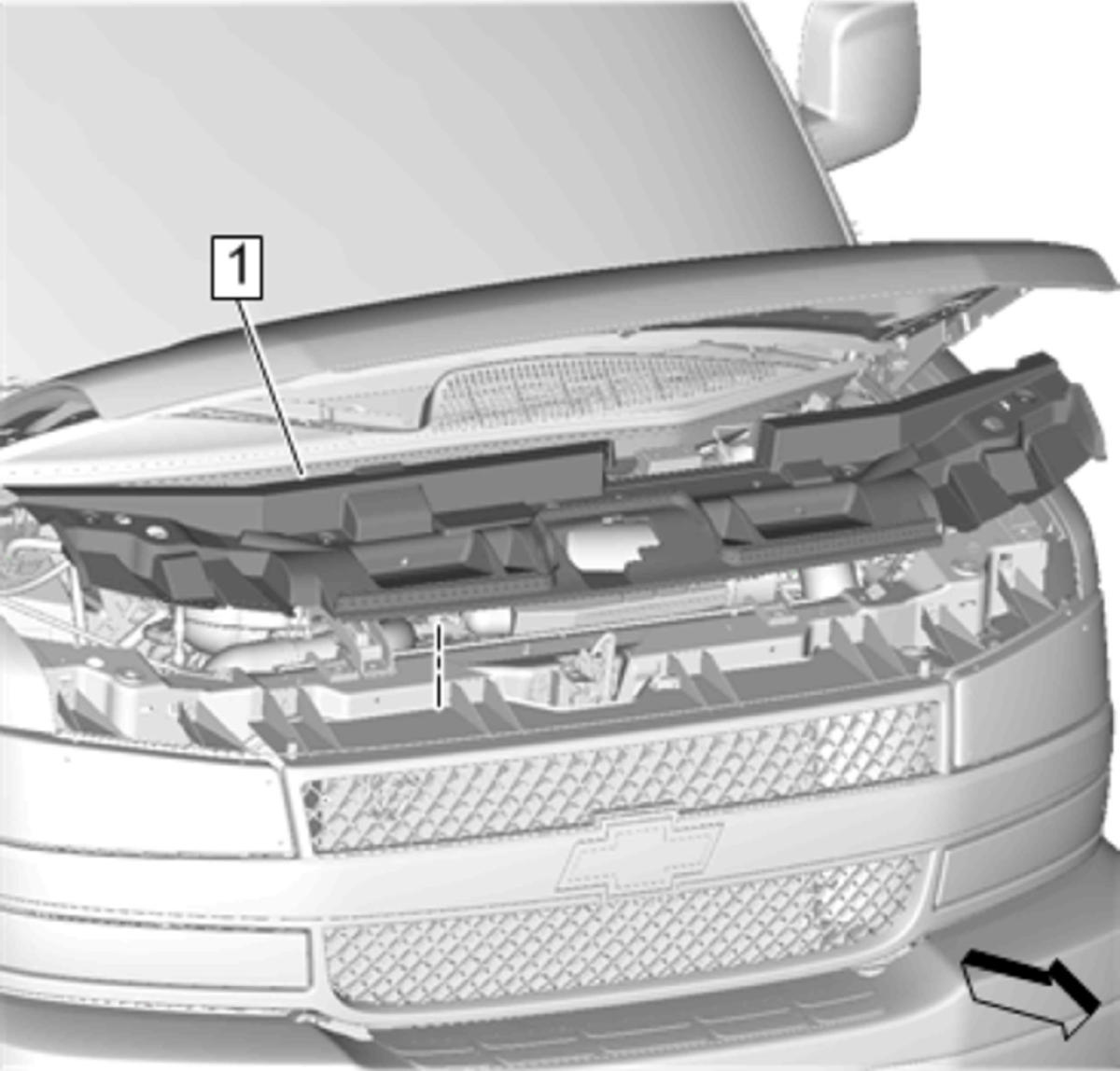

Radiator Air Upper Baffle(1) - Install - Radiator Air Upper Baffle Replacement (LWN) , or Radiator Air Upper Baffle Replacement (LV1) , or Radiator Air Upper Baffle Replacement (L96, LC8)
- Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and check for coolant leaks.
