Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

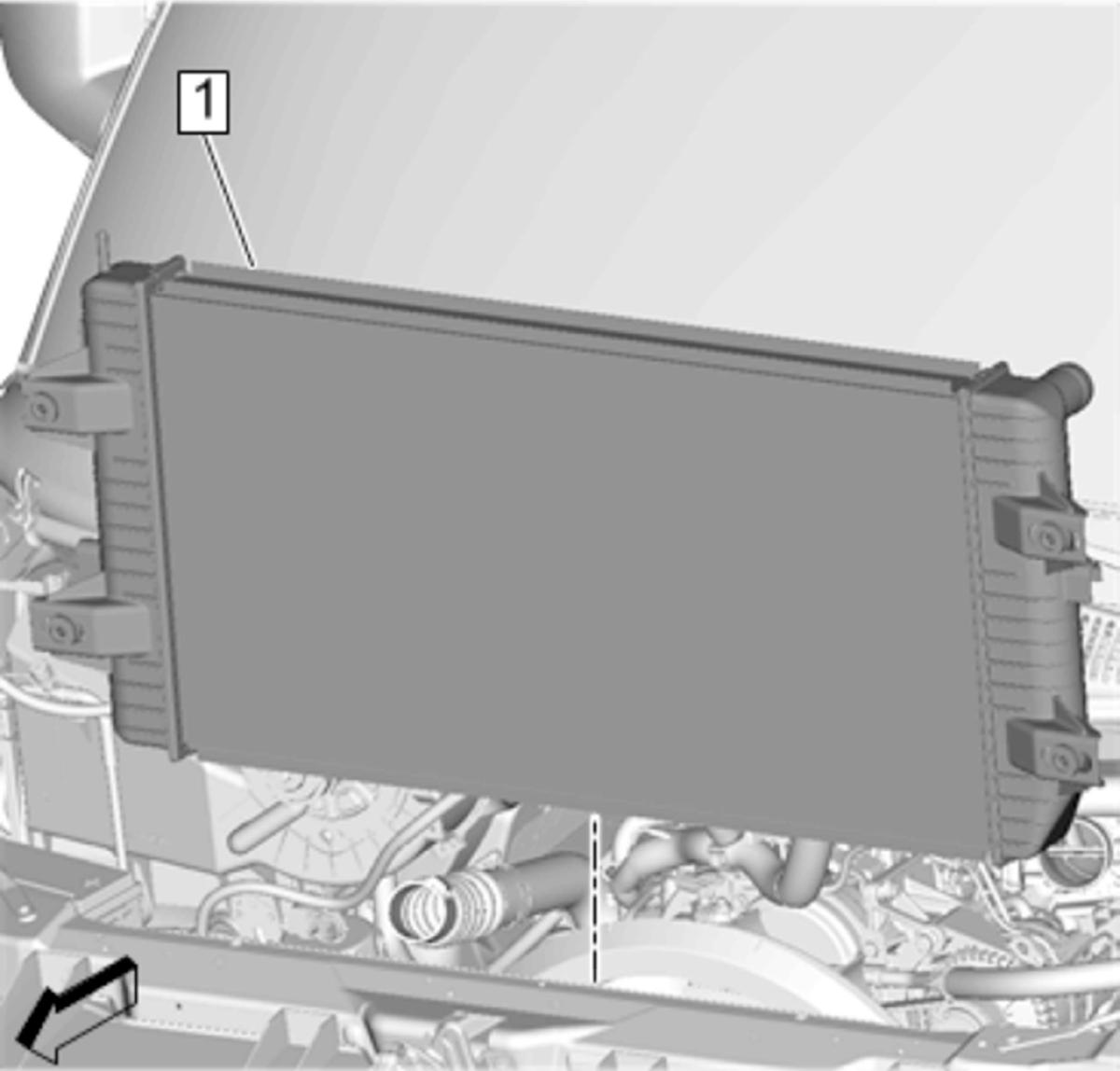

Radiator(1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

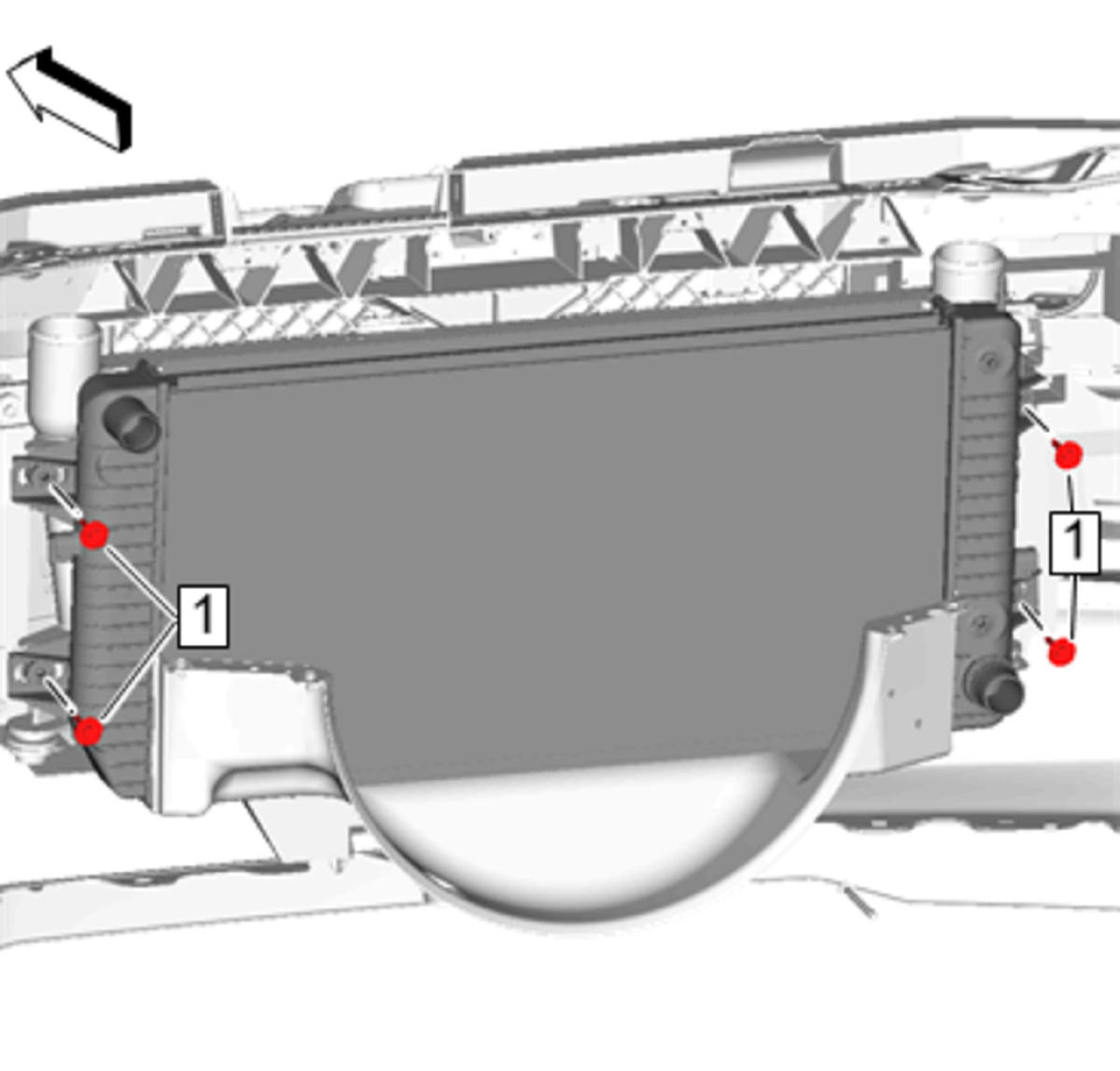

Charge Air Cooler Bolt(1) @ Radiator - Install and tighten[4x]10 N.m (89 lb in)
Courtesy of GENERAL MOTORS COMPANY

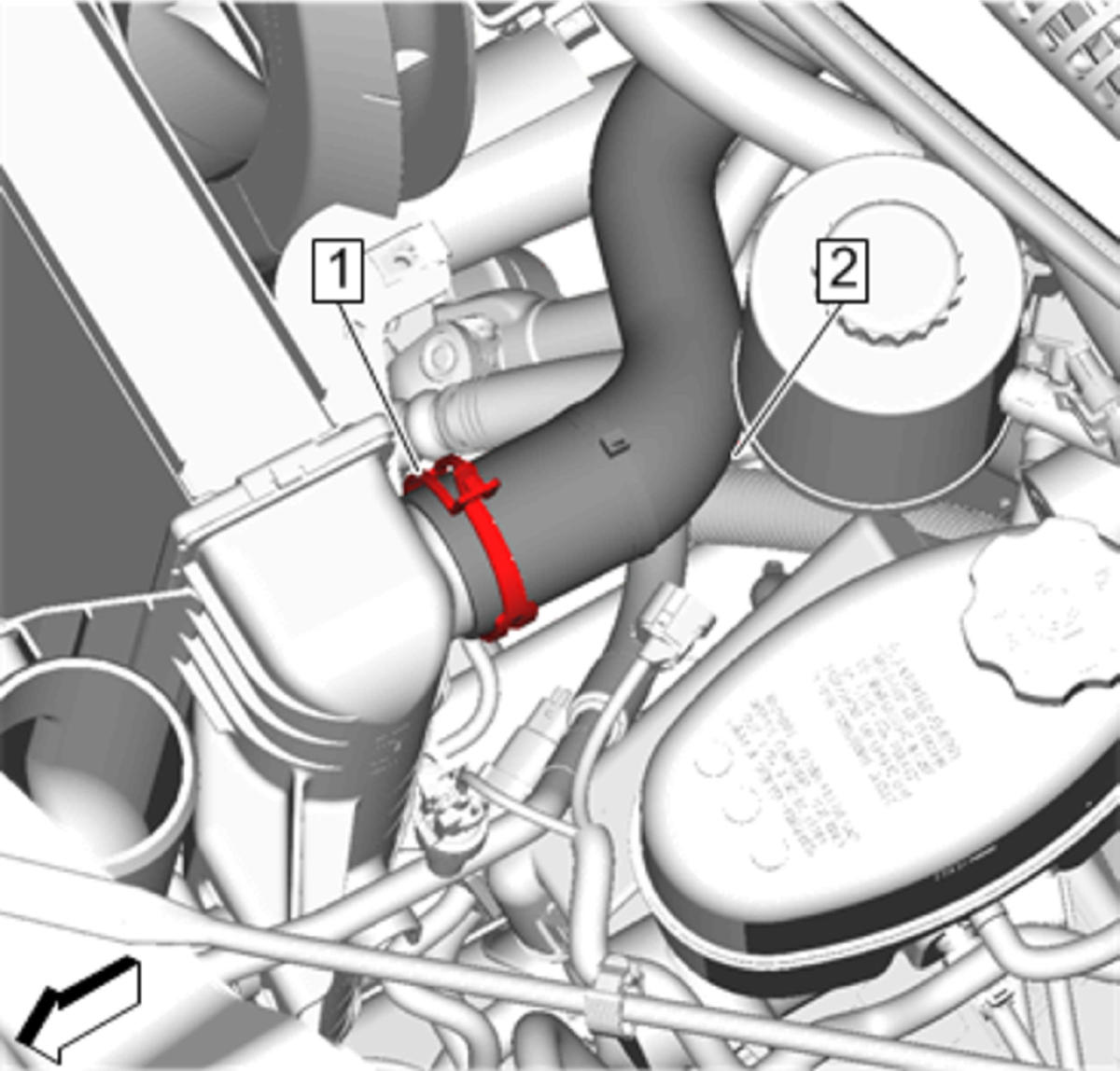

Radiator Inlet Hose(2) @ Radiator - Install - Radiator Inlet Hose Replacement (LWN) , or Radiator Inlet Hose Replacement (LV1) , or Radiator Inlet Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

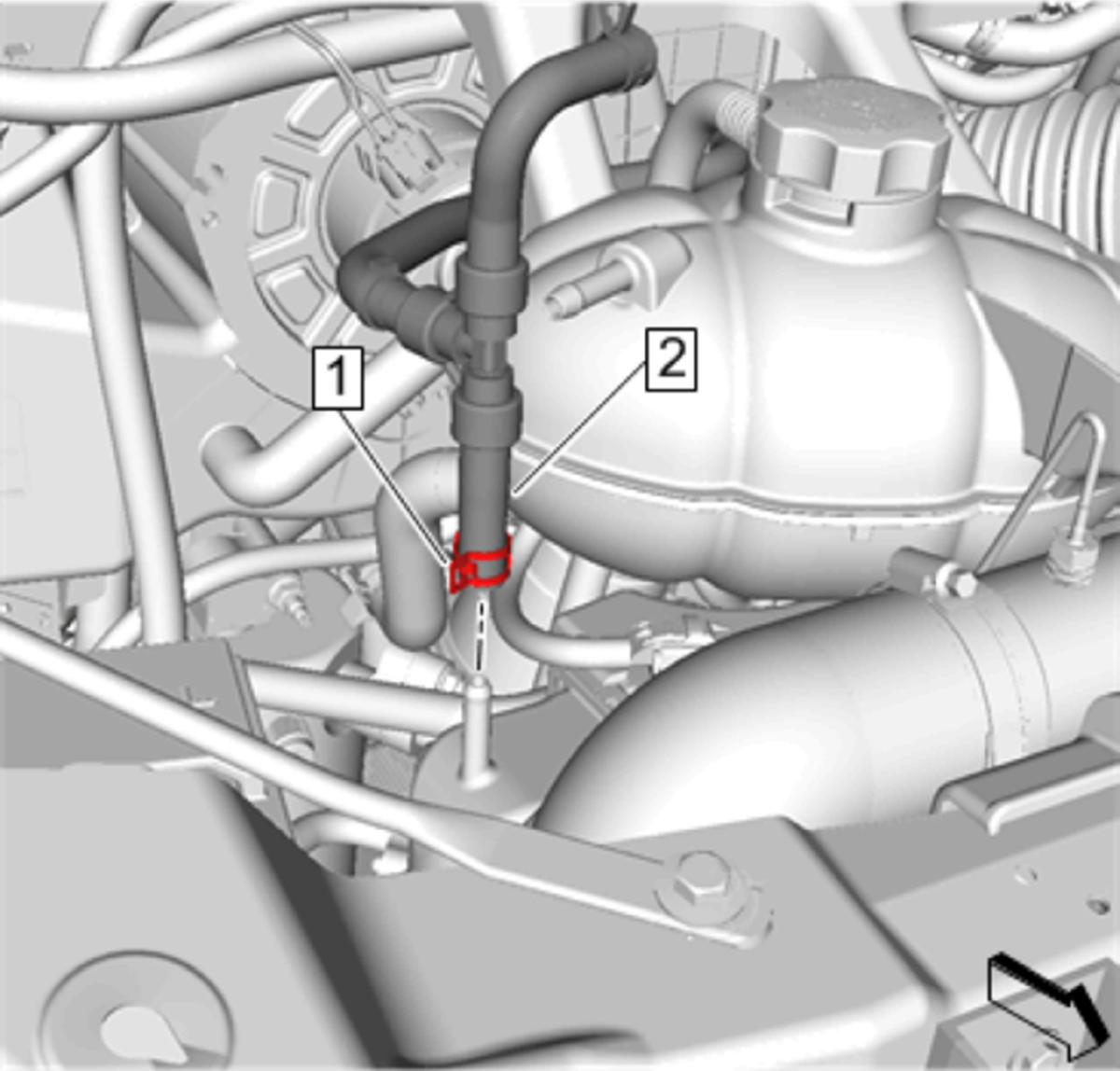

Radiator Vent Inlet Hose(2) @ Radiator - Install - Radiator Vent Inlet Hose Replacement (LWN) , or Radiator Vent Inlet Hose Replacement (L96, LC8)
Raise and support the vehicle. Lifting and Jacking the Vehicle
Transmission Fluid Cooler Pipe @ Radiator - Install - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose(2) @ Radiator - Install - Radiator Outlet Hose Replacement (LWN) , or Radiator Outlet Hose Replacement (LV1) , or Radiator Outlet Hose Replacement (L96, LC8)
Lower the vehicle.
Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Start the engine and check for coolant leaks.
