Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Radiator(1) - Install
Courtesy of GENERAL MOTORS COMPANY

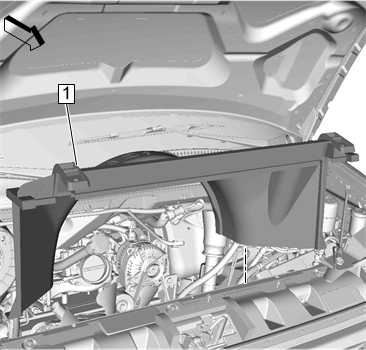

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

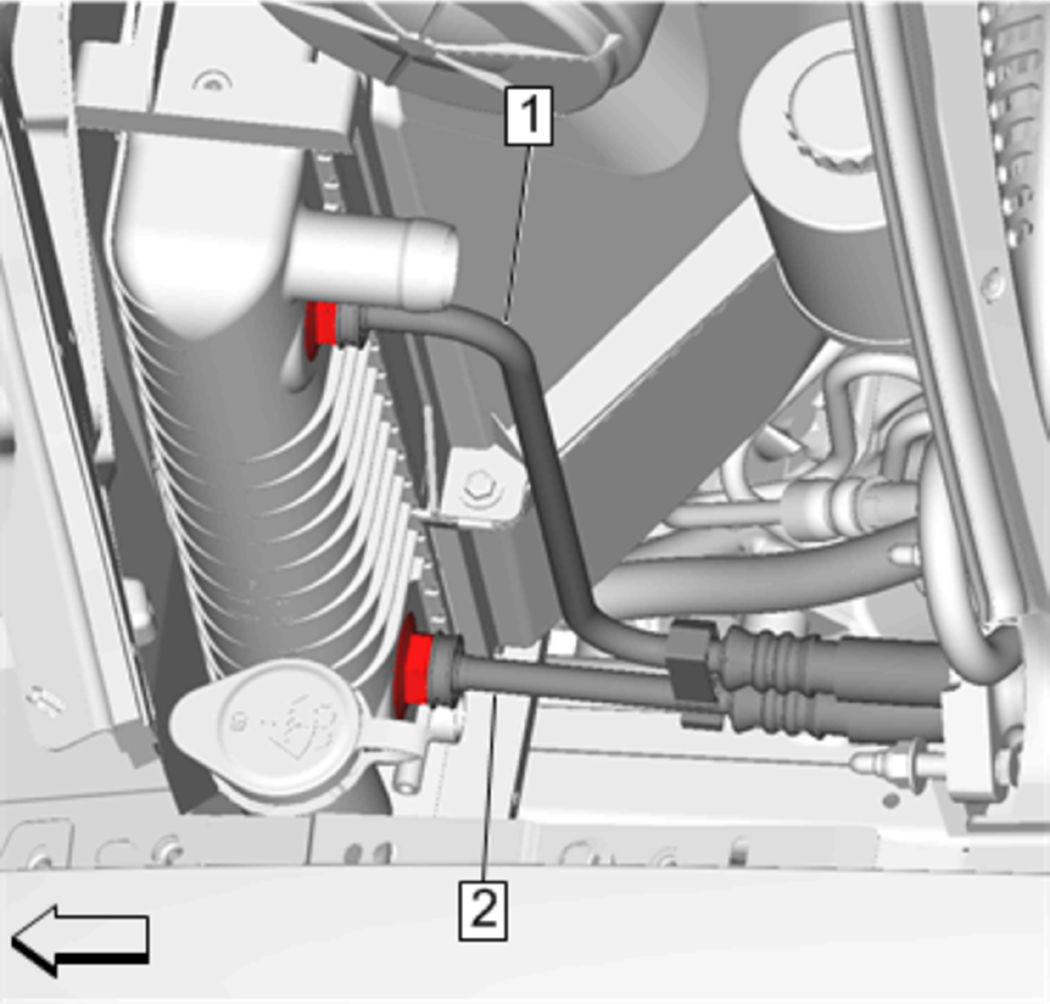

Engine Oil Cooler Hose(2) @ Radiator - Install - Engine Oil Cooler Hose Replacement (L96, LC8)
Engine Oil Cooler Hose(1) @ Radiator - Install - Engine Oil Cooler Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

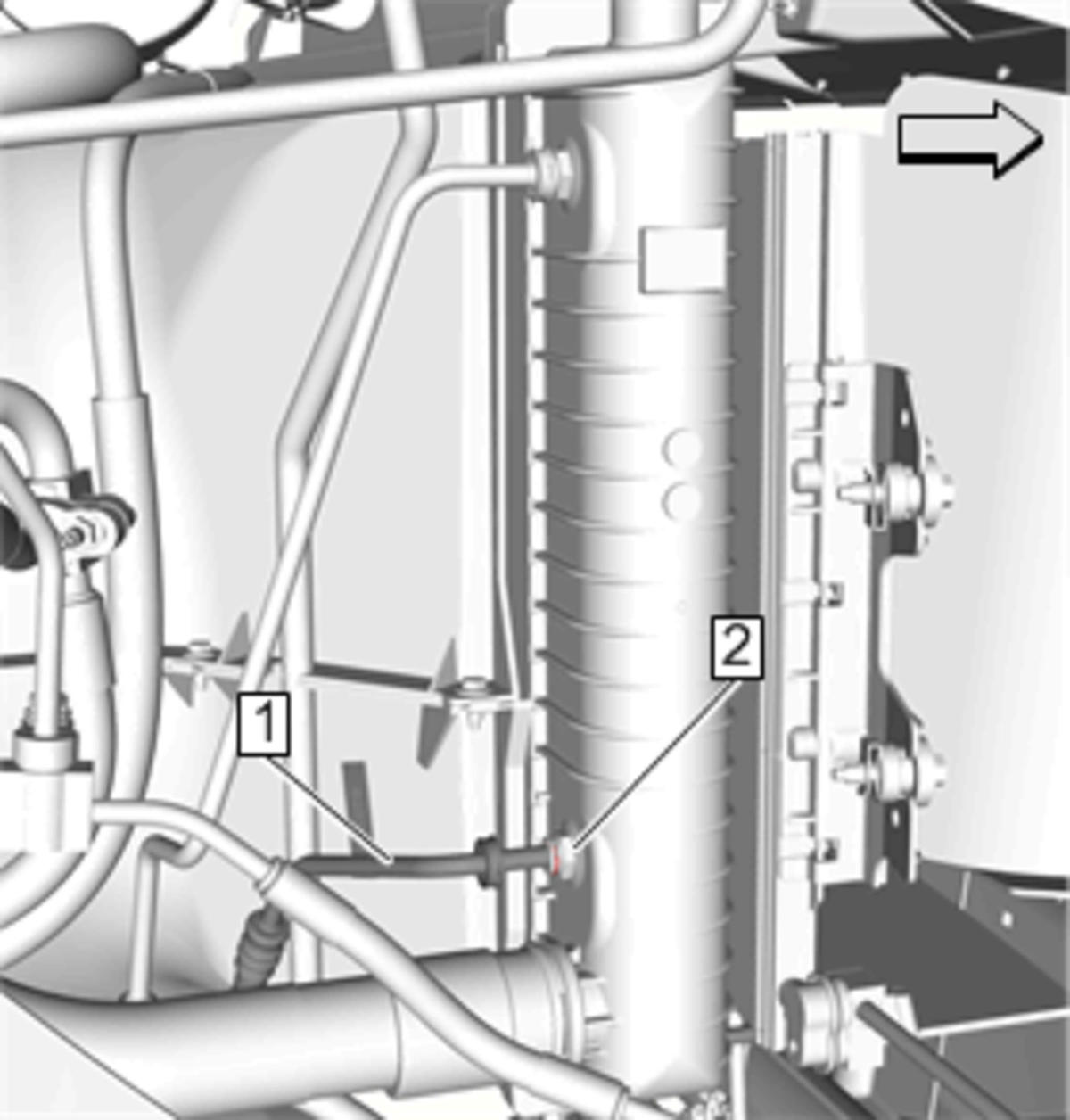

Transmission Fluid Auxiliary Cooler Inlet Pipe(1) @ Radiator - Install - Transmission Fluid Auxiliary Cooler Inlet Pipe Replacement (MYD)
Courtesy of GENERAL MOTORS COMPANY

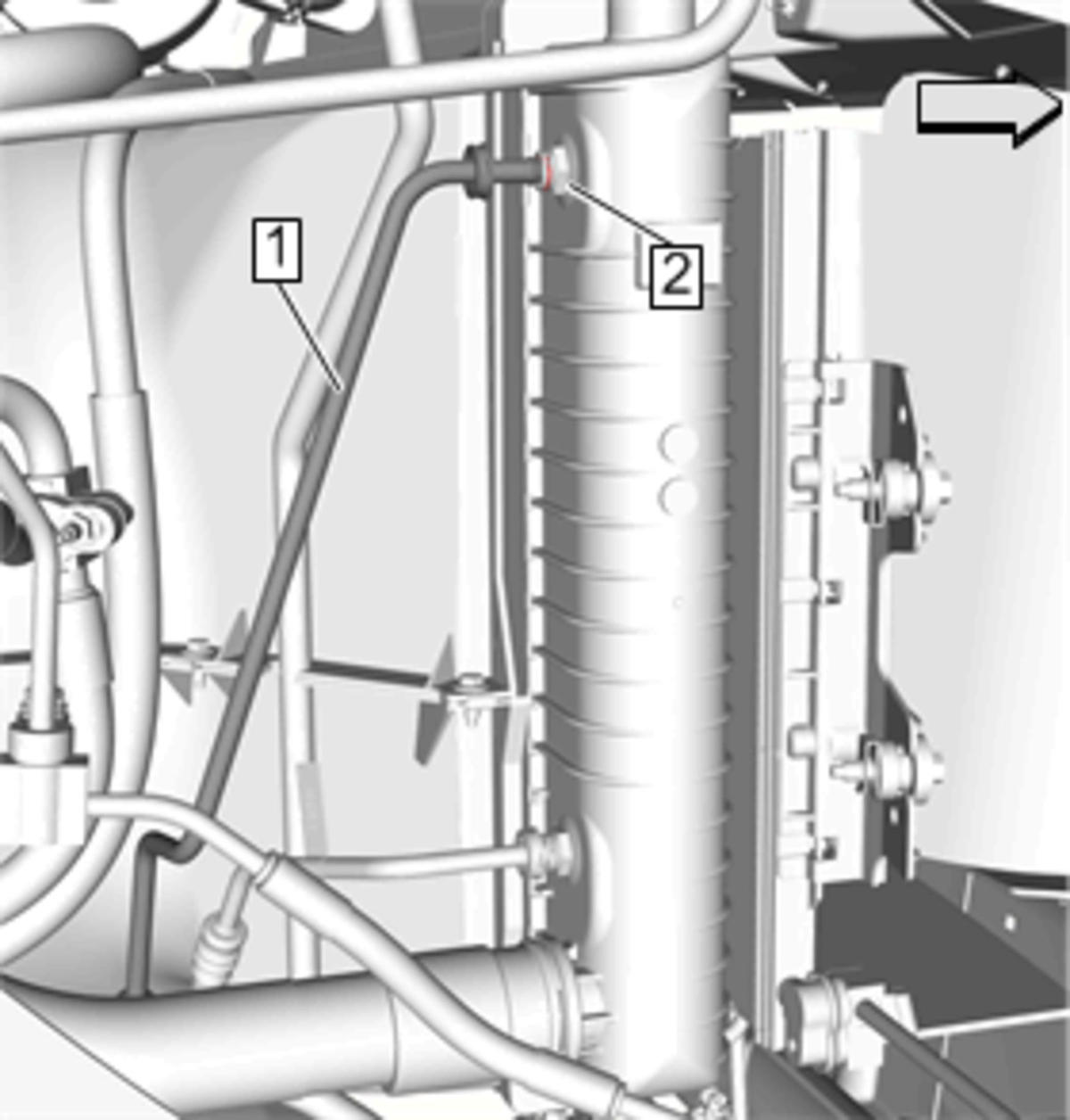

Transmission Fluid Cooler Pipe(1) @ Radiator - Install - Transmission Fluid Cooler Hose/Pipe Replacement (M5U) , or Transmission Fluid Cooler Hose/Pipe Replacement (MYD)
Oil Level Indicator Tube - Reposition - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)
Transmission Fluid Filler Tube - Reposition - Transmission Fluid Filler Tube and Seal Replacement
Air Conditioning Compressor and Condenser Hose - Install - Air Conditioning Compressor and Condenser Hose Replacement (LWN) , or Air Conditioning Compressor and Condenser Hose Replacement (L96, LC8)
Radiator Inlet Hose - Install - Radiator Inlet Hose Replacement (LWN) , or Radiator Inlet Hose Replacement (LV1) , or Radiator Inlet Hose Replacement (L96, LC8)
Radiator Vent Outlet Hose(2) @ Radiator - Install - Radiator Vent Outlet Hose Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

Coolant Recovery Reservoir(1) - Install - Coolant Recovery Reservoir Replacement (LV1) , or Coolant Recovery Reservoir Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

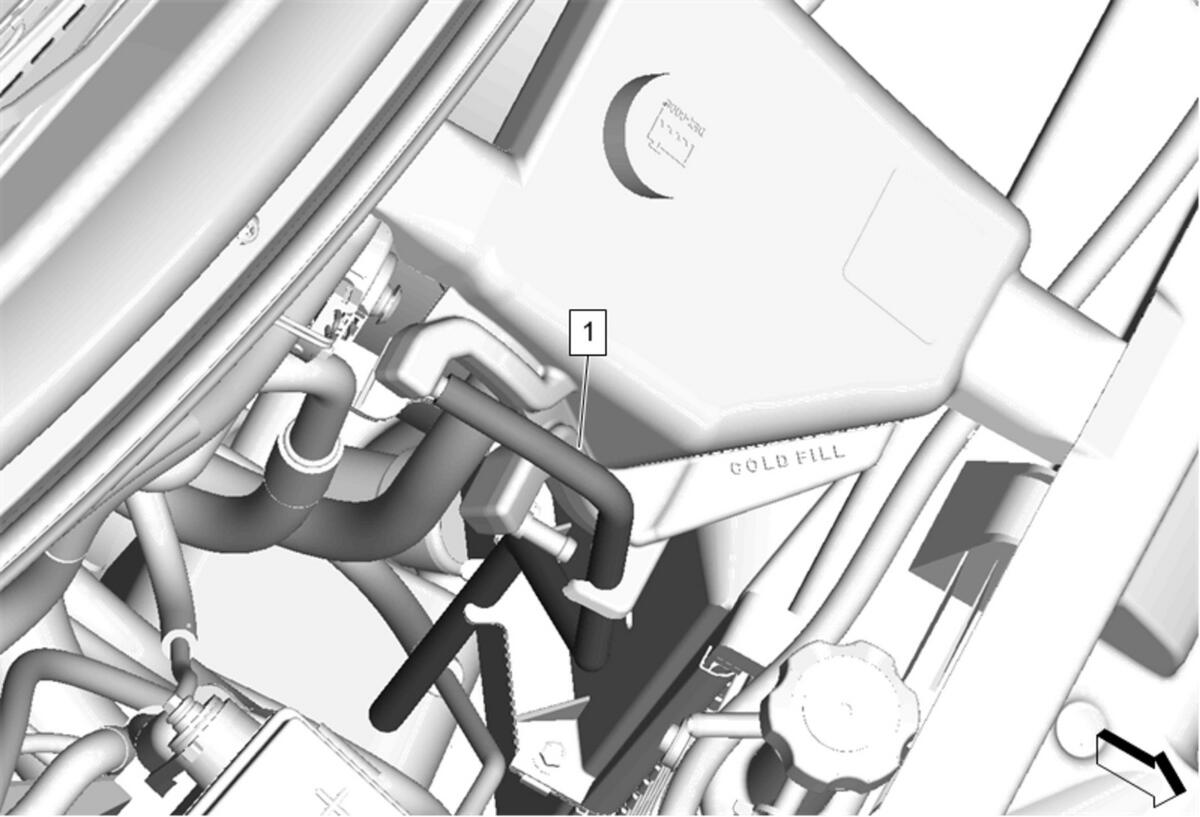

Coolant Recovery Reservoir Overflow Hose(1) @ Engine Coolant Fan Upper Shroud - Install - Coolant Recovery Reservoir Overflow Hose Replacement (L96, LC8, LV1)
Air Cleaner Resonator Outlet Duct - Install - Air Cleaner Resonator Outlet Duct Replacement
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

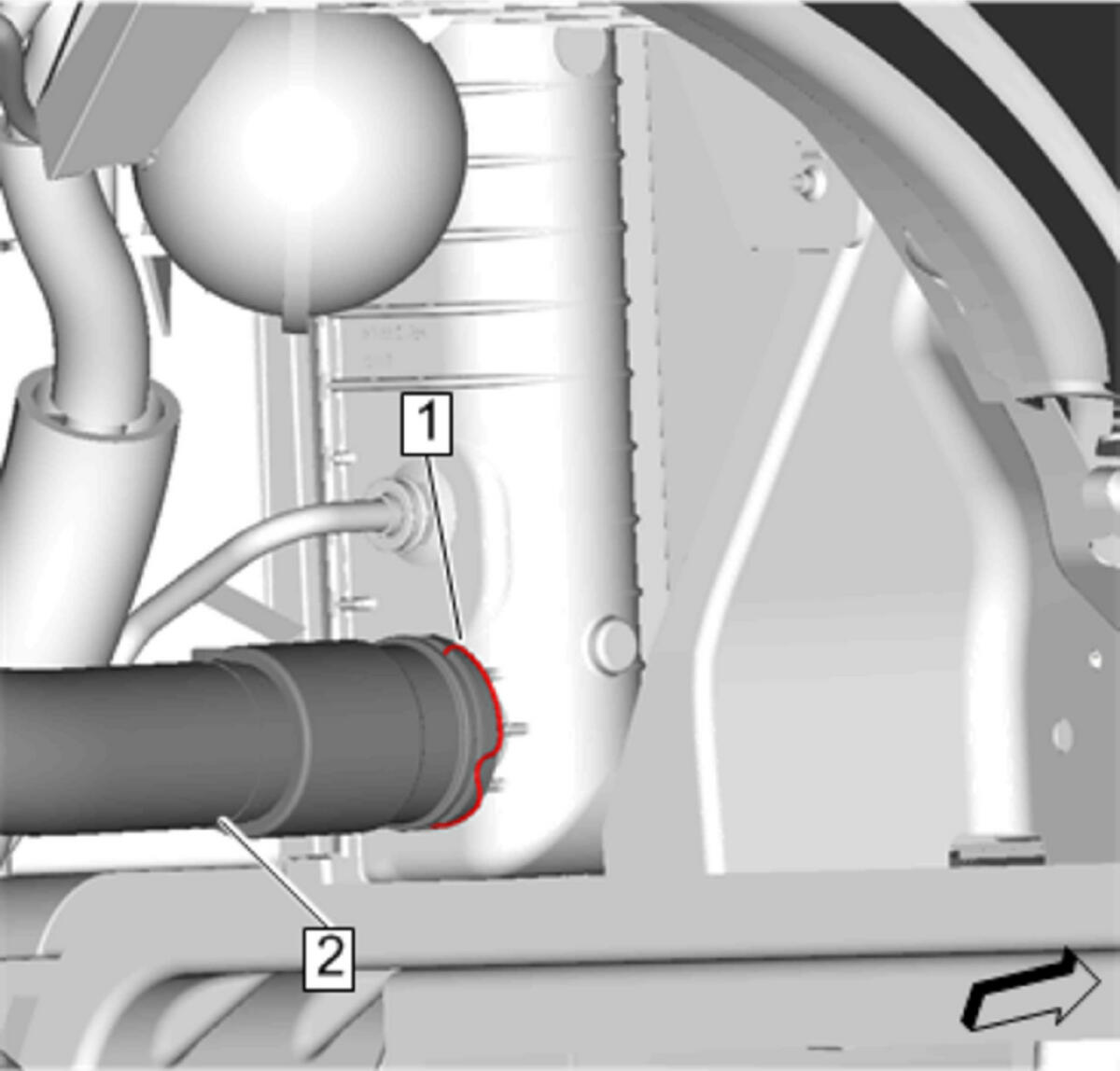

Radiator Outlet Hose(2) @ Radiator - Install - Radiator Outlet Hose Replacement (LWN) , or Radiator Outlet Hose Replacement (LV1) , or Radiator Outlet Hose Replacement (L96, LC8)
Lower the vehicle.
Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Start the engine and check for coolant leaks.
