Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

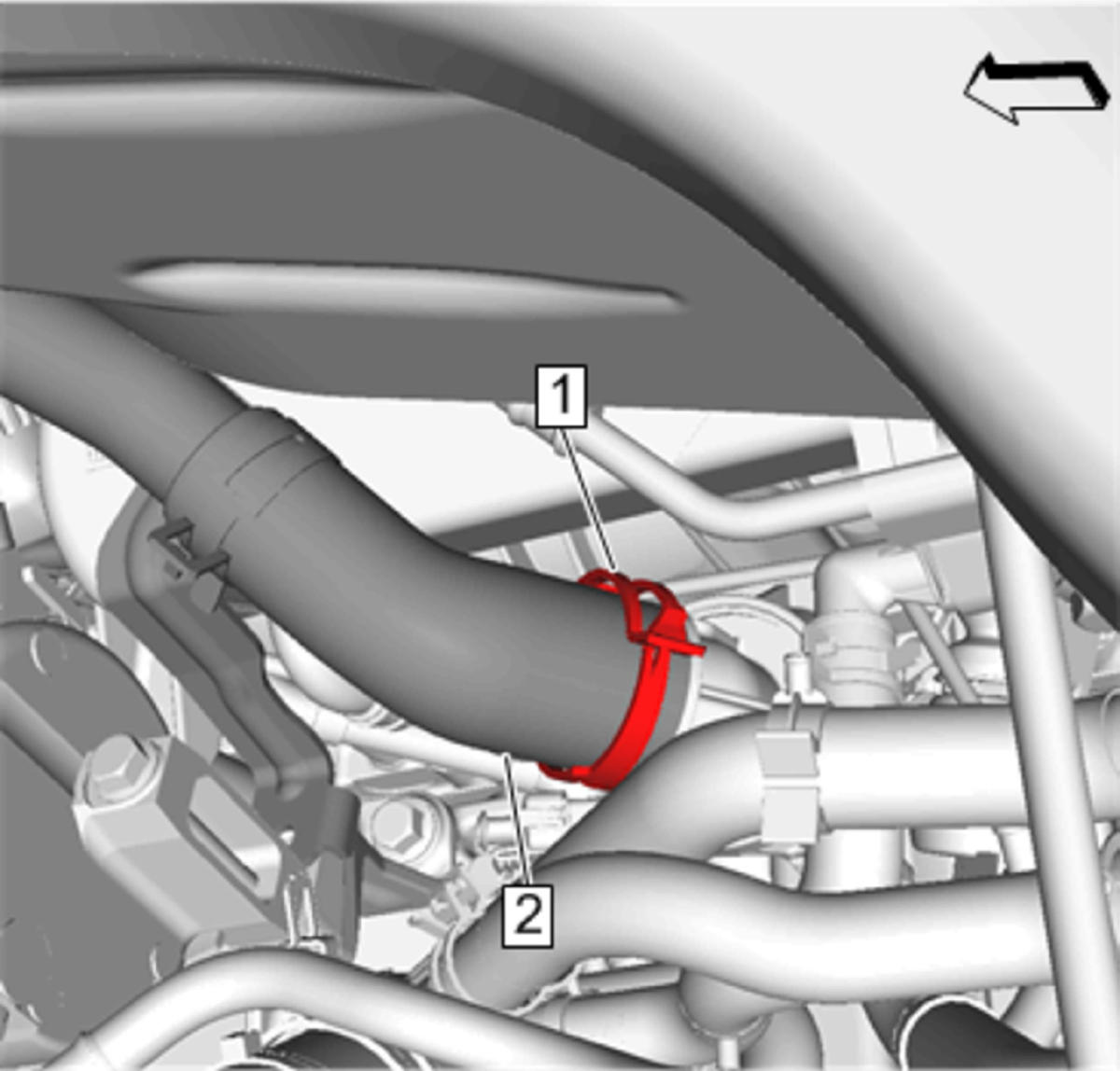

Radiator Inlet Hose(2) @ Radiator - Install
- Radiator Inlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
Radiator Inlet Hose(2) @ Engine Coolant Thermostat Housing - Install
- Radiator Inlet Hose Clamp(1) - Engage - Hose Clamp Replacement Guidelines - Spring Type
- CAUTION:
Refer to Fastener Caution .

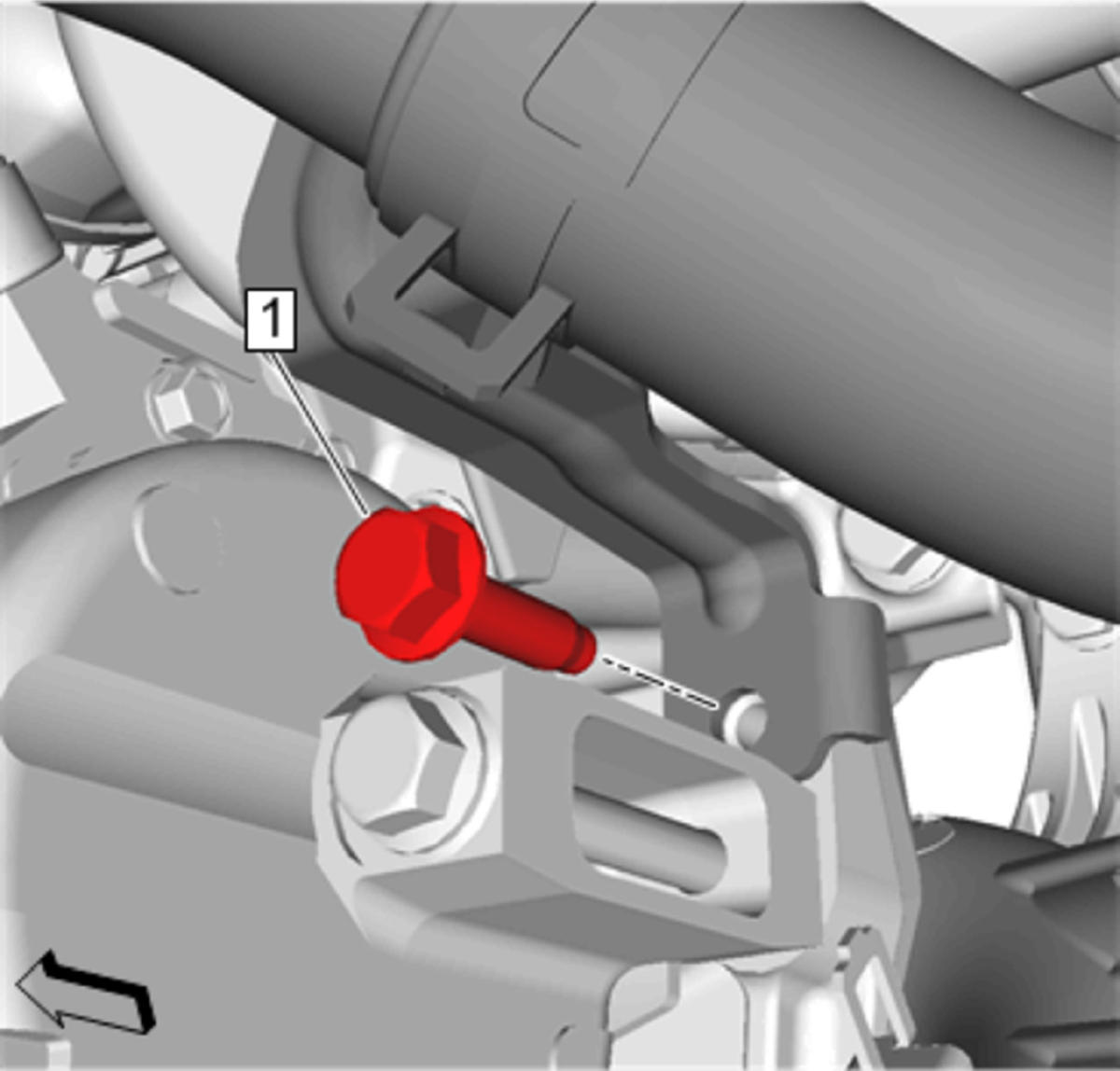

Radiator Inlet Hose Bracket Bolt(1) - Install and tighten22 N.m (16 lb ft)

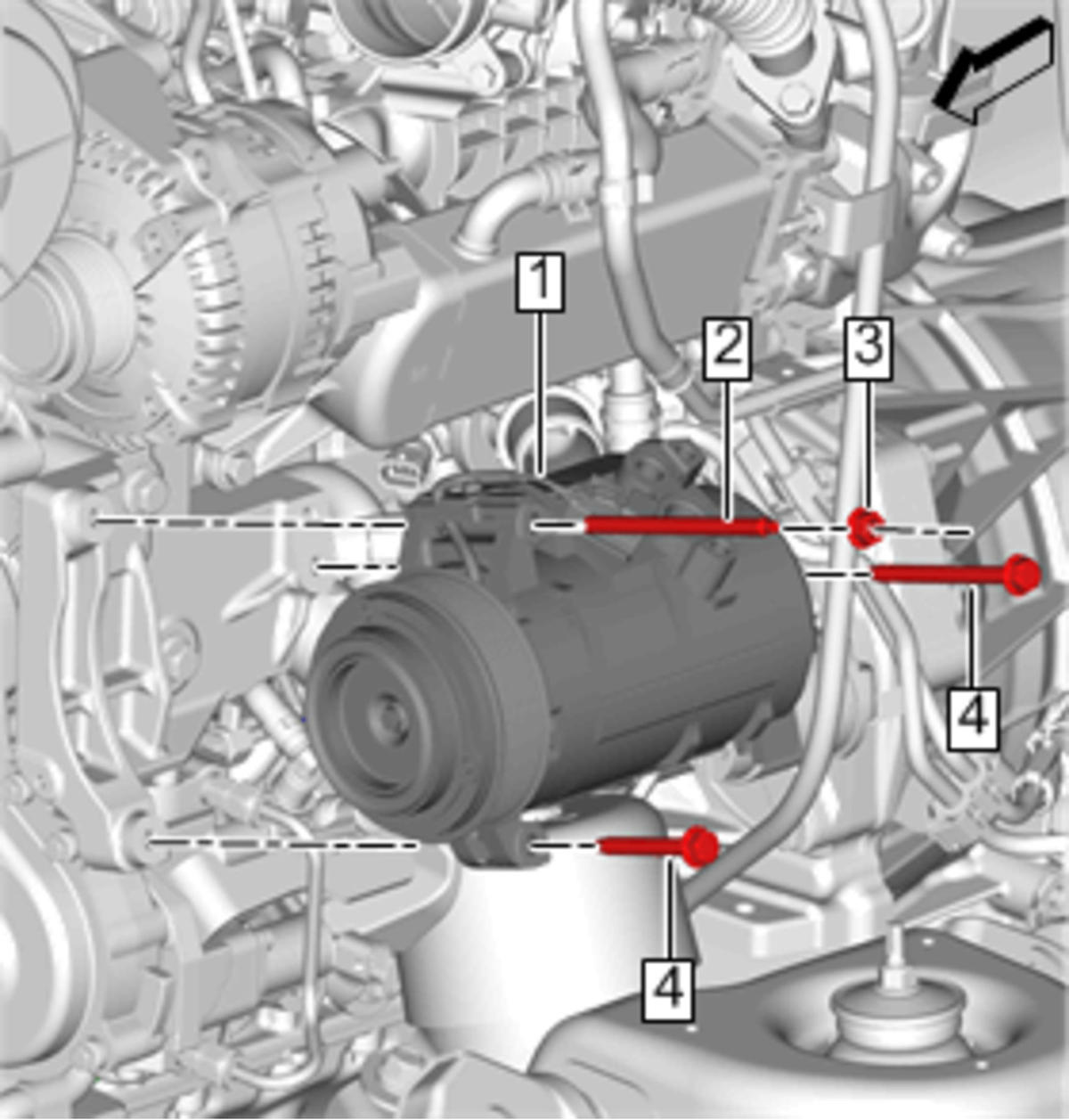

Install the air conditioning compressor (1) to the vehicle.
- Air Conditioning Compressor Stud(2) @ Air Conditioning Compressor(1) - Install and tighten - Air Conditioning Compressor Replacement (LWN) , or Air Conditioning Compressor Replacement (LV1) , or Air Conditioning Compressor Replacement (L96, LC8)
- Air Conditioning Compressor Bolt(4) @ Air Conditioning Compressor(1) - Install and tighten - Air Conditioning Compressor Replacement (LWN) , or Air Conditioning Compressor Replacement (LV1) , or Air Conditioning Compressor Replacement (L96, LC8)
- Air Conditioning Compressor Nut(3) @ Air Conditioning Compressor(1) - Install and tighten - Air Conditioning Compressor Replacement (LWN) , or Air Conditioning Compressor Replacement (LV1) , or Air Conditioning Compressor Replacement (L96, LC8)

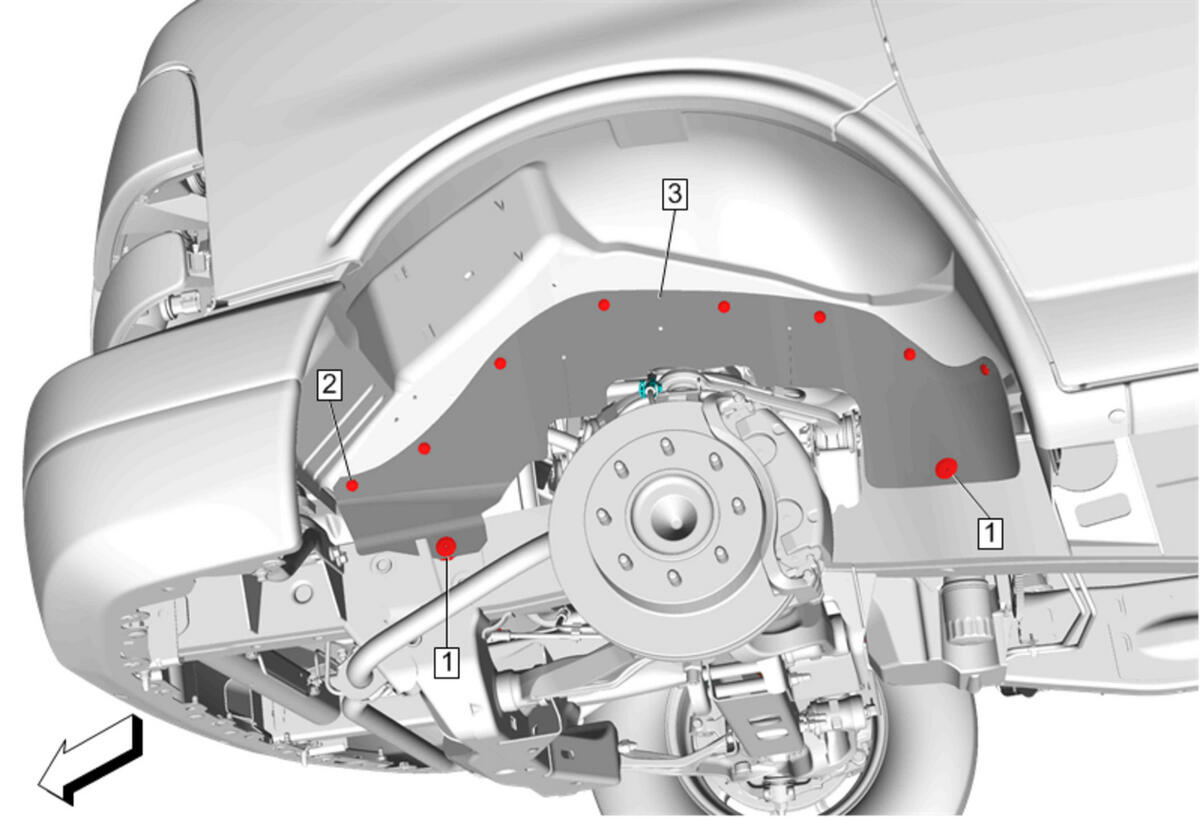

Front Wheelhouse Splash Shield-Left Side(3) - Install - Wheelhouse Splash Shield Replacement (Left Side) , or Wheelhouse Splash Shield Replacement (Right Side)
- Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and check for coolant leaks.
