Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

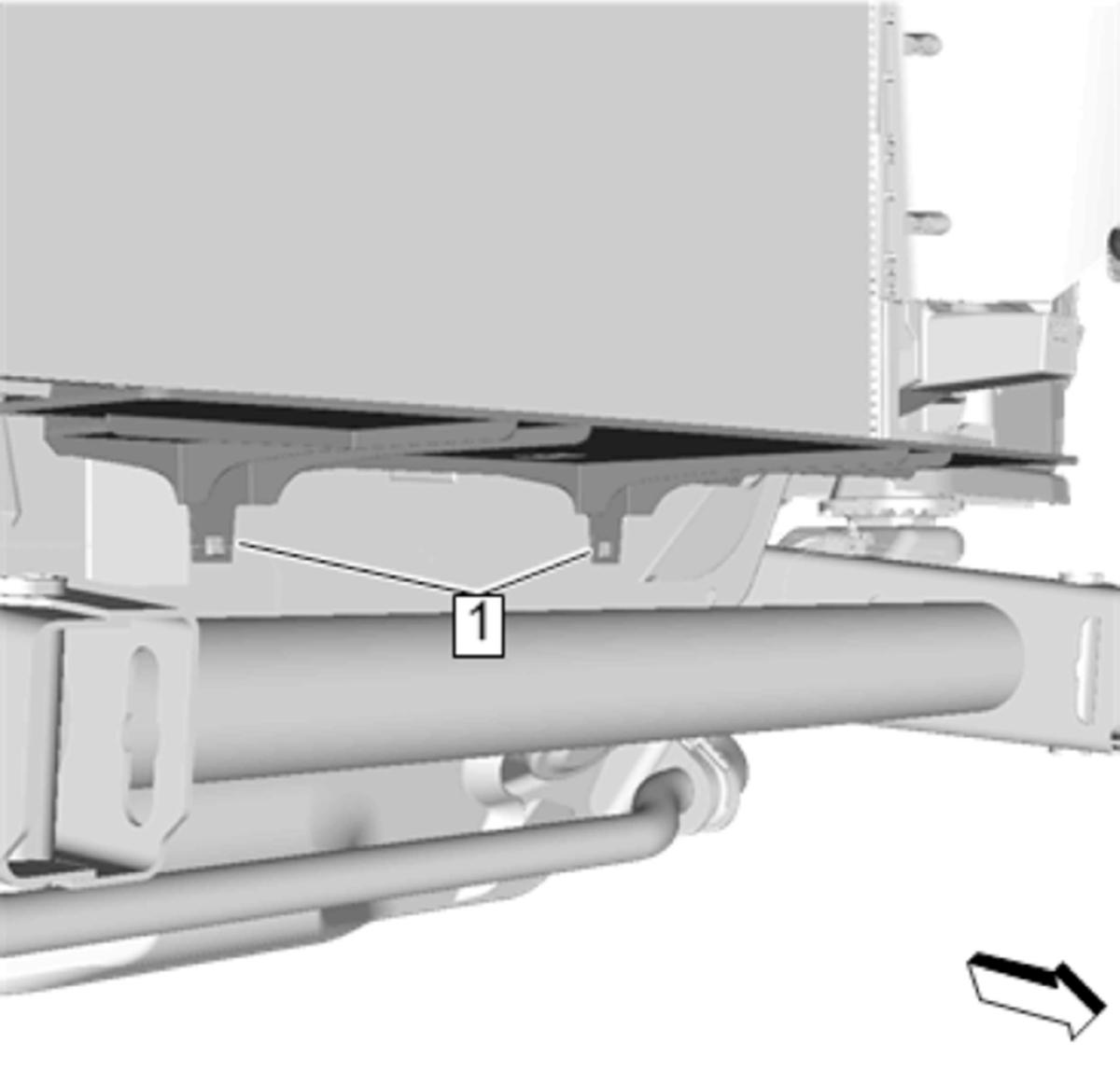

Attach Radiator Air Lower Baffle (1) on and into the radiator lower support.
Push in on the radiator air lower baffle retaining tabs (1) at the radiator lower support to secure.[2x]
Front Bumper Impact Bar (2) - Install - Front Bumper Impact Bar Replacement
