Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
  2. GM4590223Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  3. Heater Water Bypass Outlet Hose(2) @ Radiator Surge Tank - Remove
  4. Engine Cover - Remove - Engine Cover Replacement

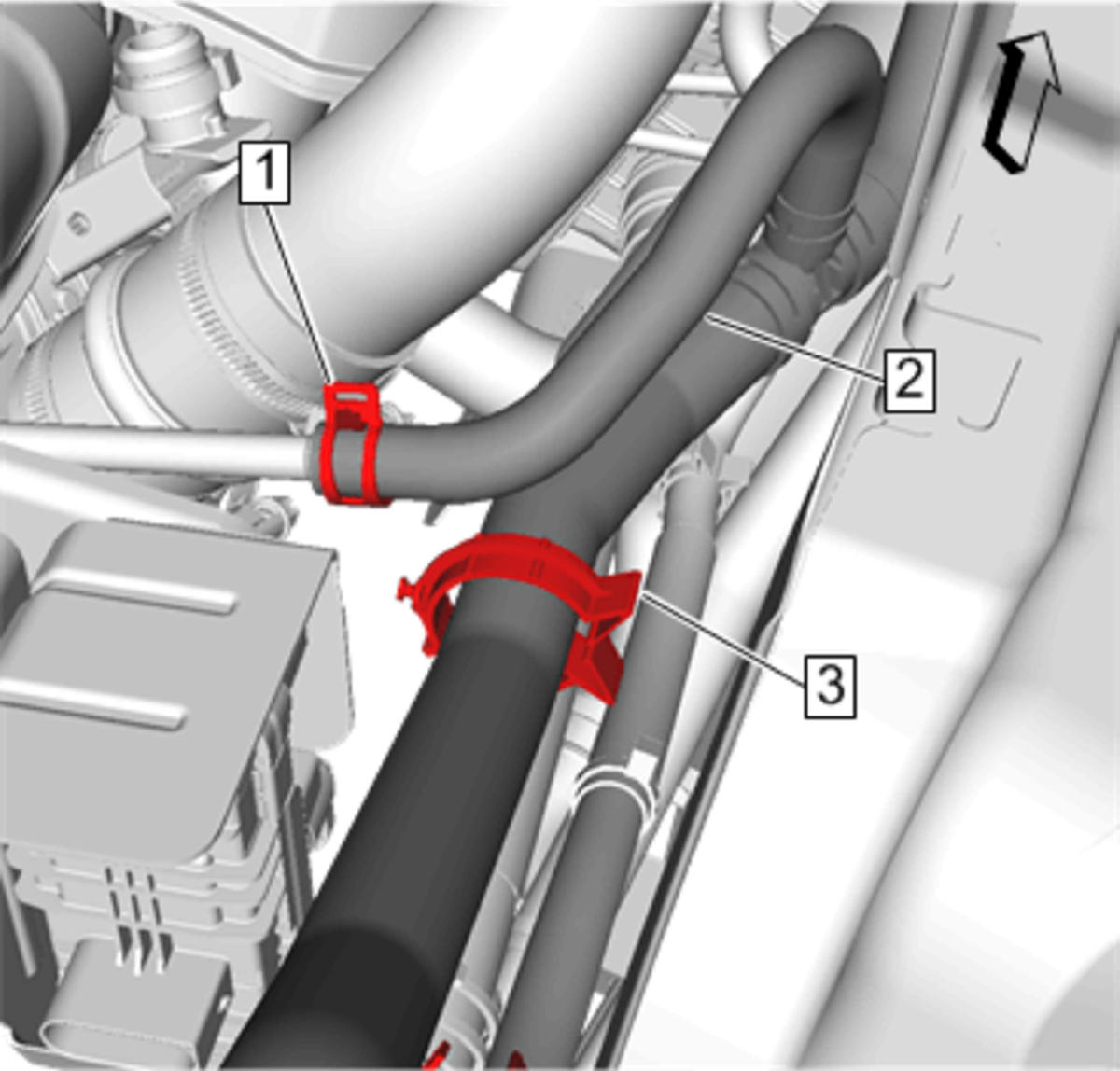

  5. GM4590669Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  6. Heater Water Bypass Outlet Hose(2) @ Turbocharger Coolant Return Pipe - Remove
  7. Hose Clip(3) @ Heater Water Bypass Outlet Hose - Remove

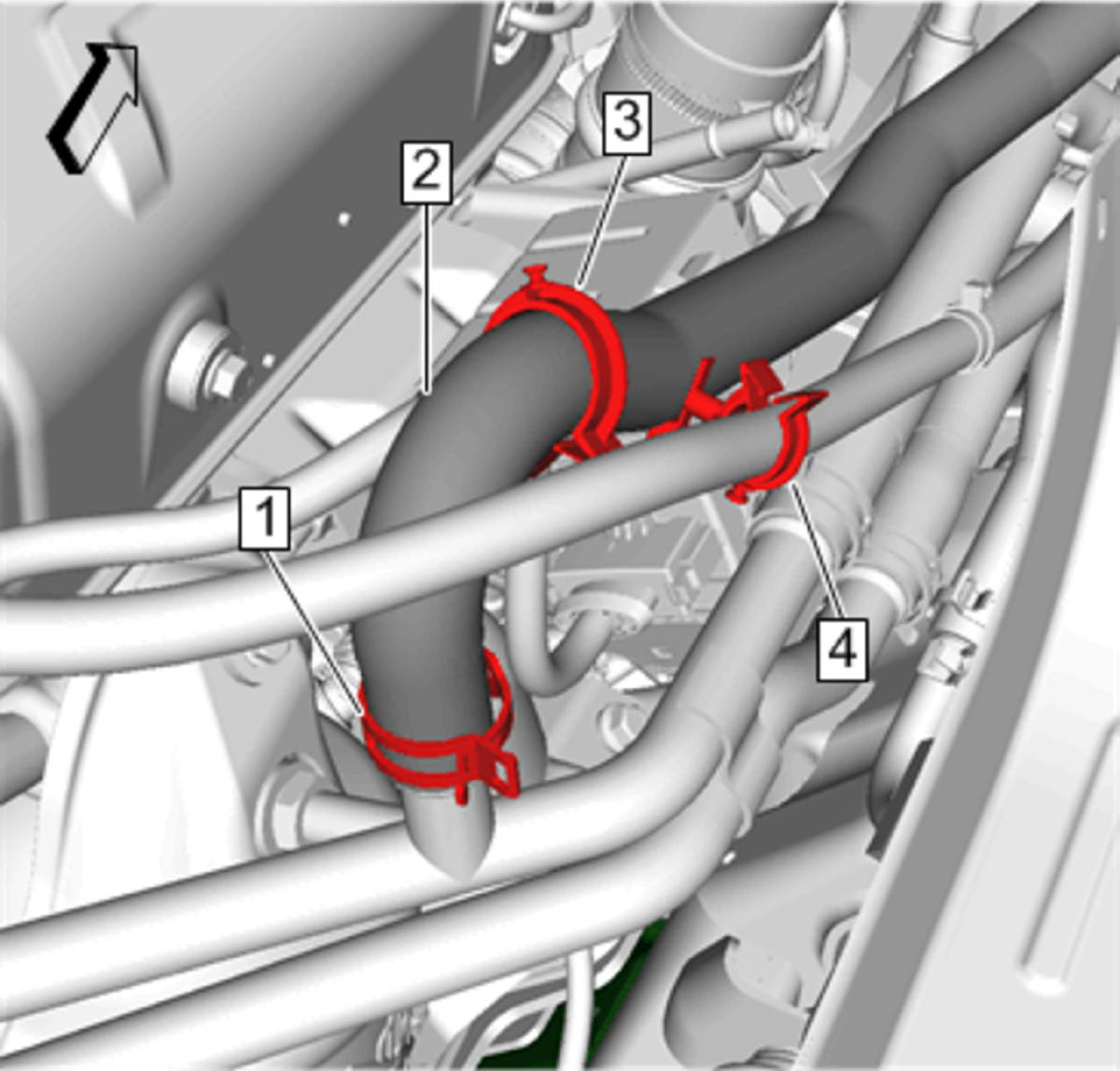

  8. GM4590673Courtesy of GENERAL MOTORS COMPANY

    Hose Clamp(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

  9. Heater Water Bypass Outlet Hose(2) @ Heater Inlet and Outlet Hose - Remove
  10. Wiring Harness Clip(3) @ Heater Water Bypass Outlet Hose - Remove
  11. Hose Clip(4) @ Vacuum Hose - Remove
  12. Heater Water Bypass Outlet Hose(2) - Remove
