Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

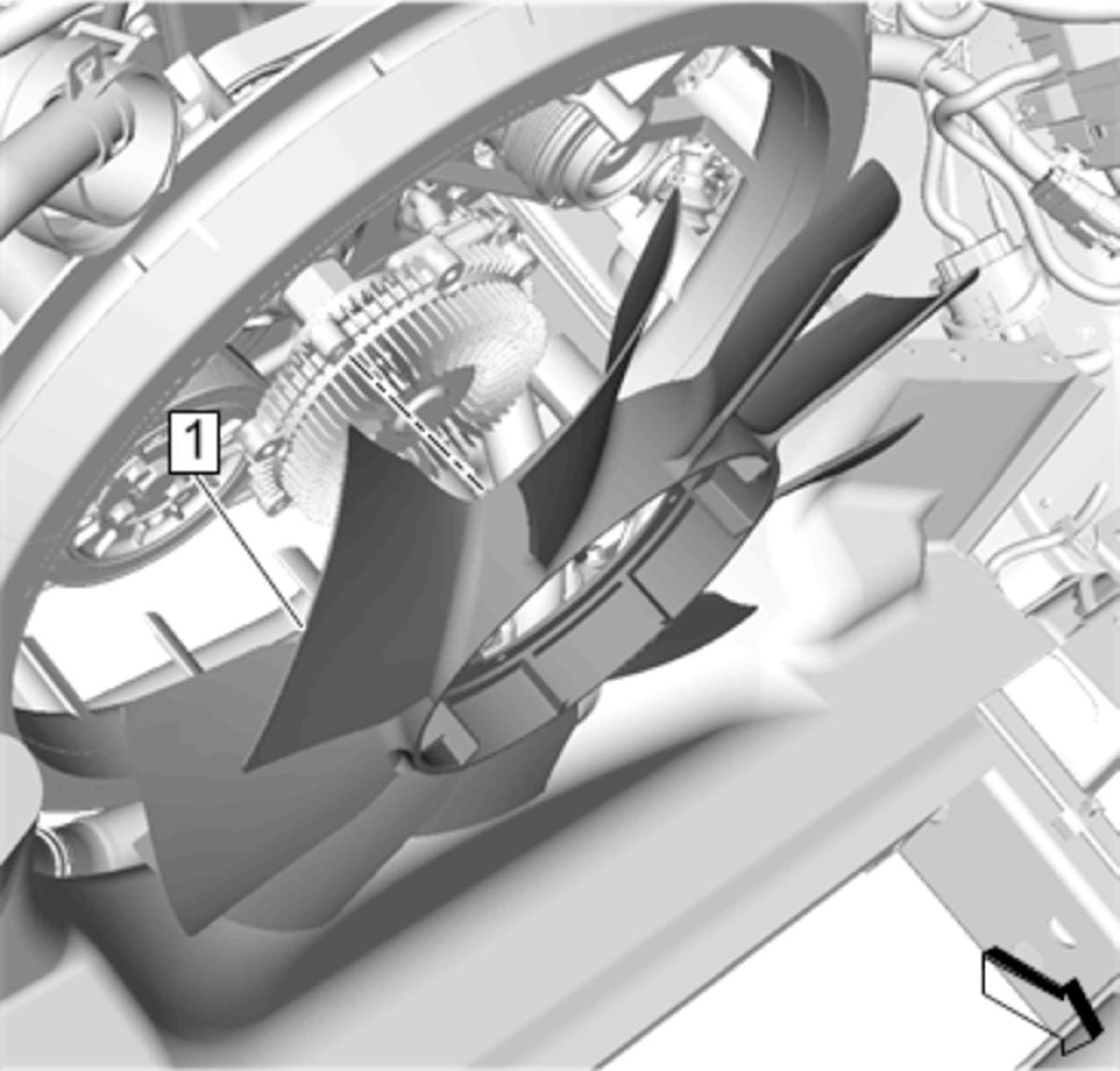

Fan Blade(1) @ Fan Blade Clutch - Install
- CAUTION:
Refer to Fastener Caution .

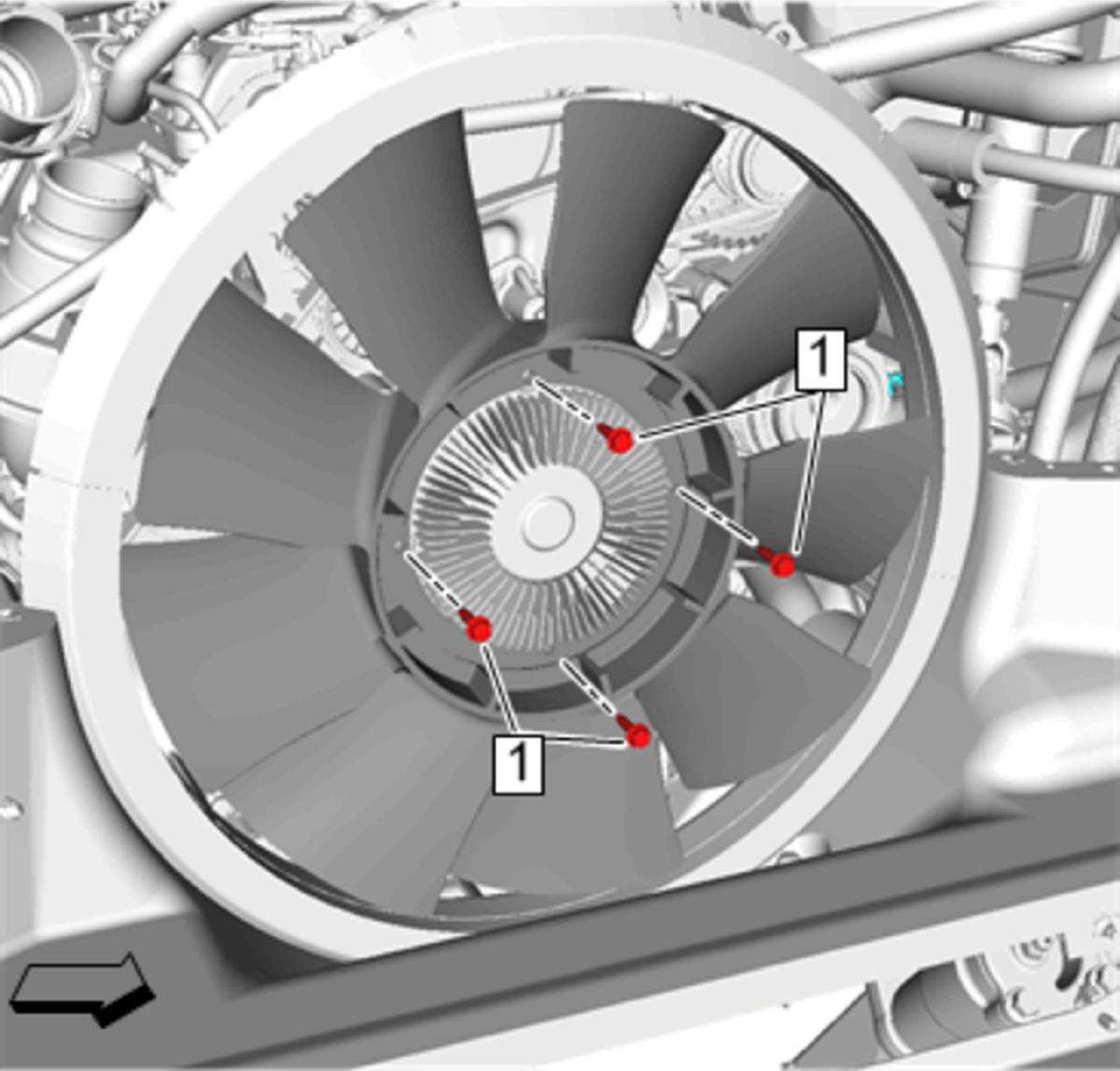

Fan Blade Bolt(1) - Install and tighten[4x]9 N.m (80 lb in)

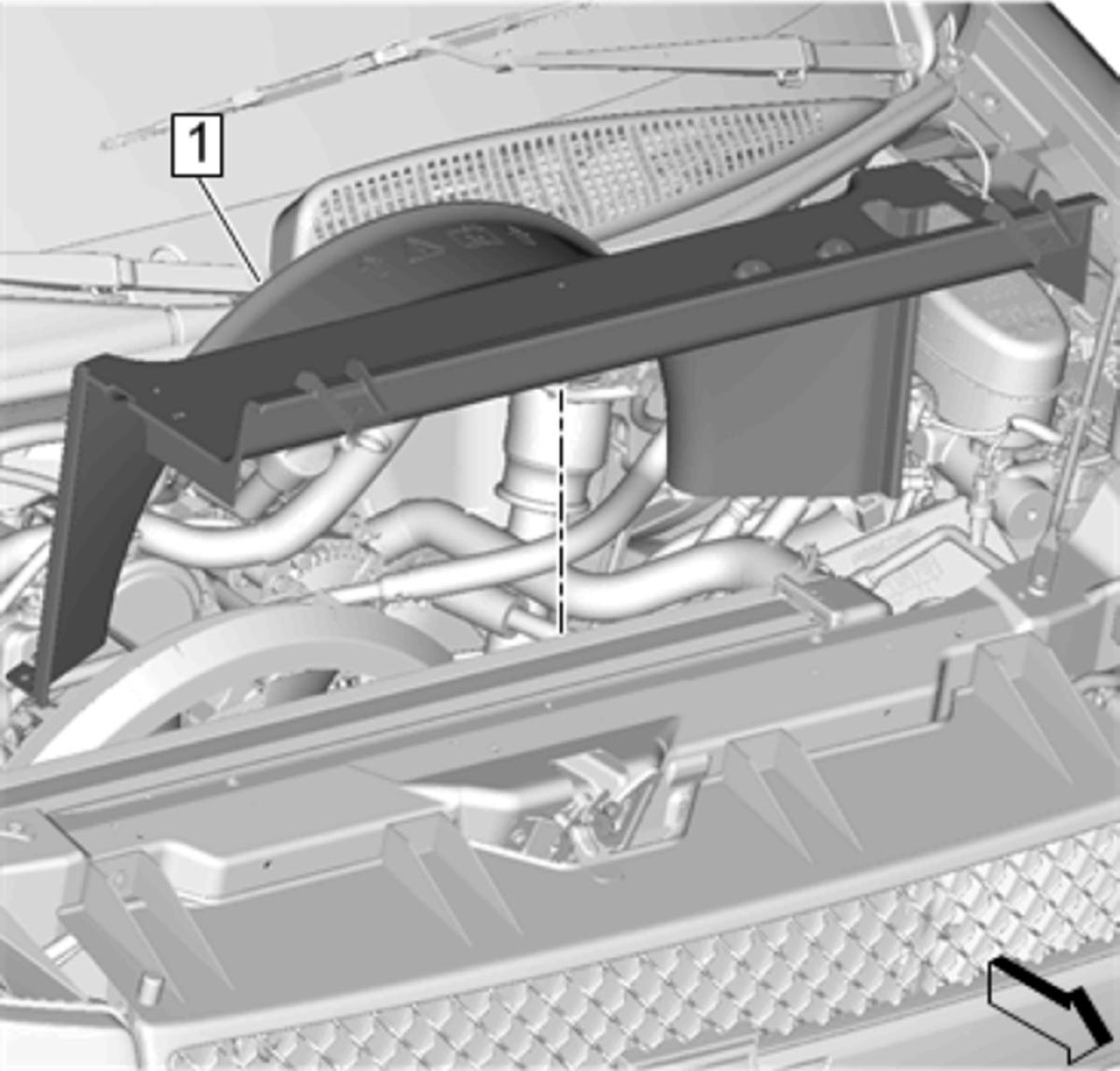

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
