Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

WARNING:

Do not use or attempt to repair a damaged cooling fan assembly. Replace damaged fans with new assemblies. An unbalanced cooling fan could fly apart causing personal injury and property damage.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Fan blade clutch and water pump pulley threads must be wiped with a clean cloth before reassembly.

Fan Blade(2) - Install

CAUTION:

Refer to Fastener Caution .

Fan Blade Bolt(1) - Install and tighten[4x]9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

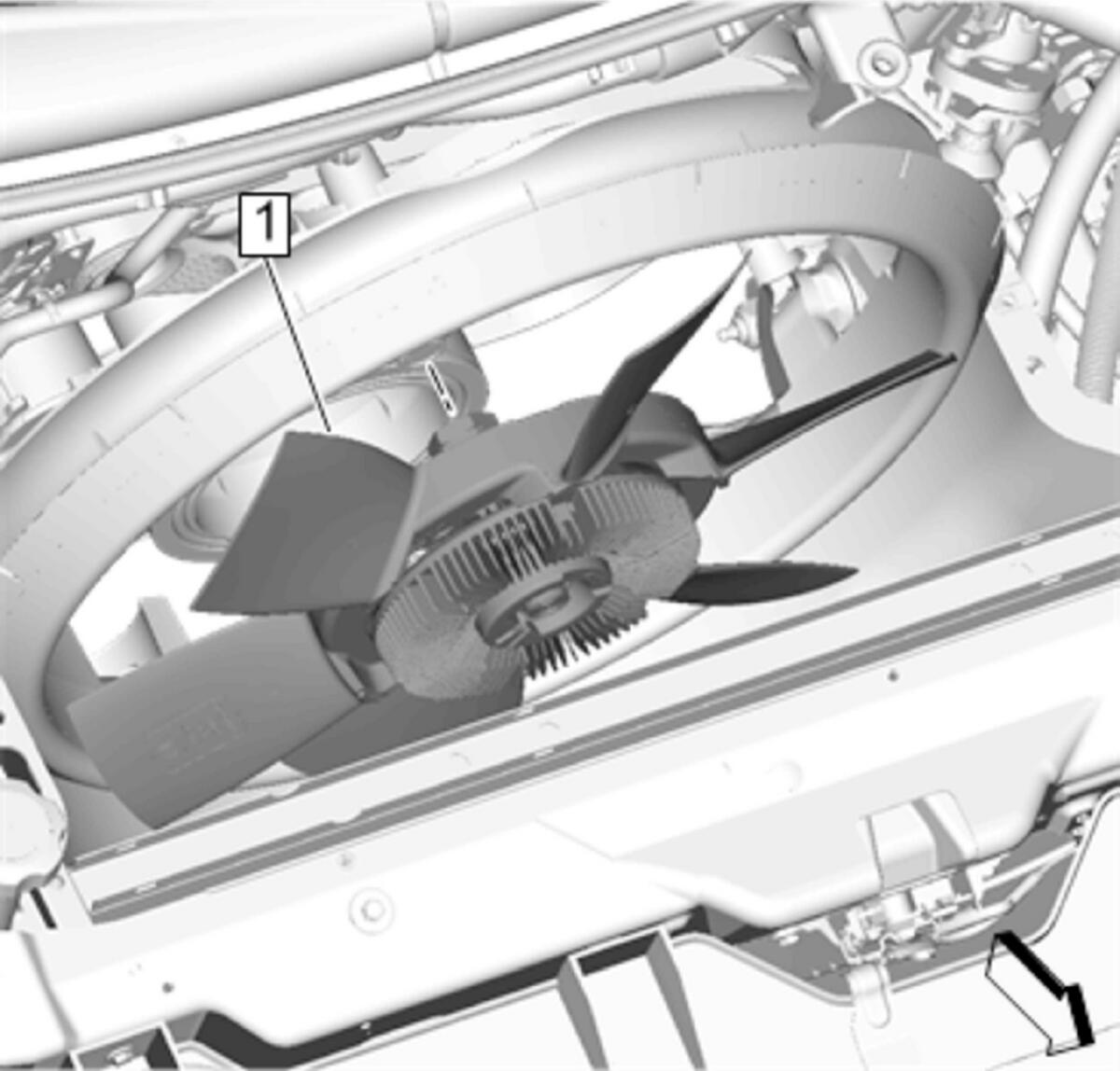

Install the fan blade and fan blade clutch as an assembly (1) to the water pump pulley.
Courtesy of GENERAL MOTORS COMPANY

Install J-46406-1 Fan Clutch Holding Wrench (2) into the fan and water pump pulley.
Install EN-41240-2 Fan Clutch Wrench (1) with the long breaker bar (3) onto the fan blade clutch.
Turn the fan blade clutch clockwise and tighten to 100 N.m (74 lb ft)
Remove EN-41240-2 Fan Clutch Wrench (1) and long breaker bar (3) from the fan blade clutch.
Remove J-46406-1 Fan Clutch Holding Wrench (2) from the fan and water pump pulley.
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
