Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Coolant Fan Upper Shroud(1) - Remove - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)

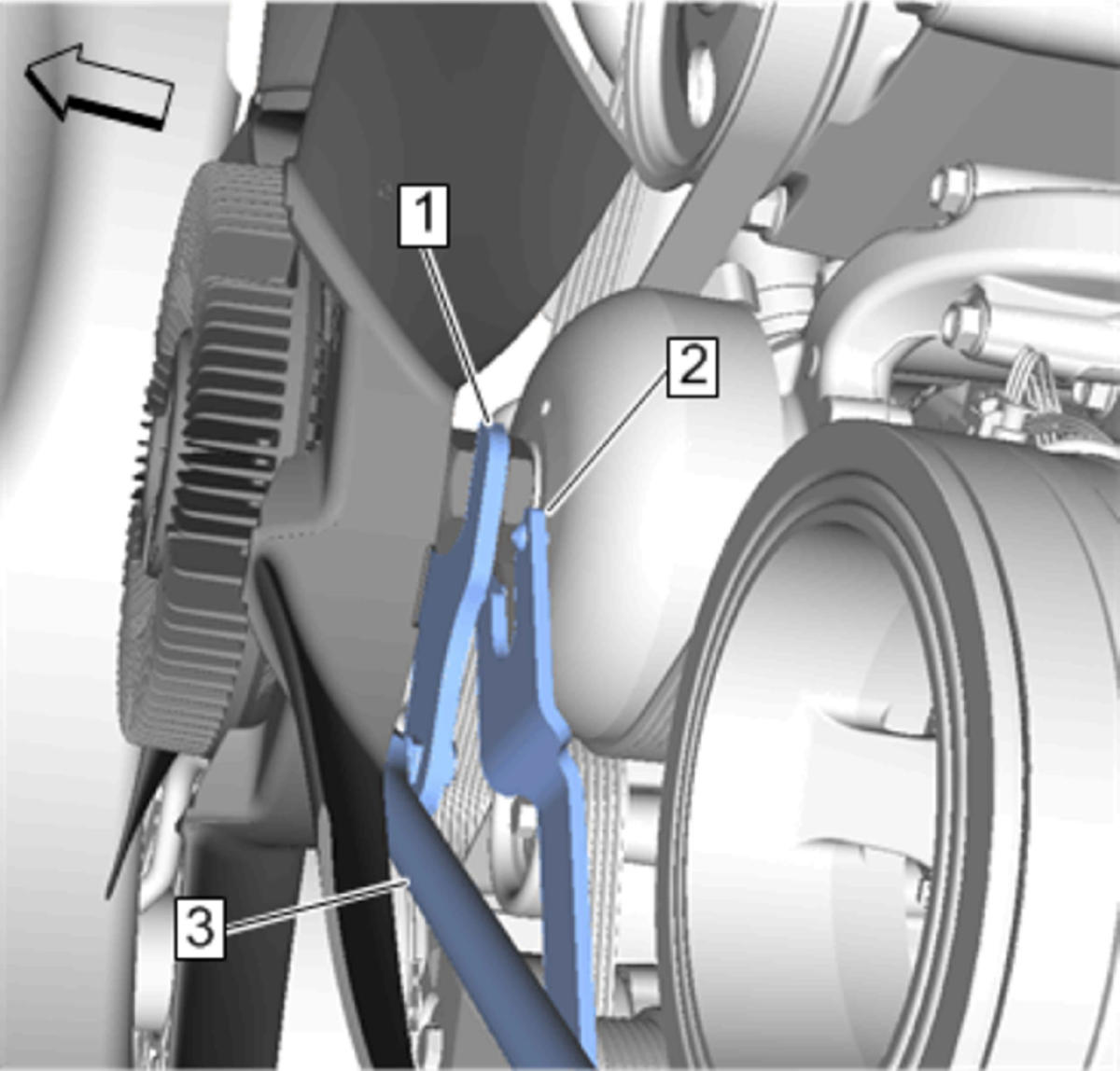

Install J-41240 fan clutch remover and installer (2) into the fan and water pump pulley.
- Install J-41240-5A fan clutch wrench (1) with a long breaker bar (3) onto the fan blade clutch.
- Turn the fan blade clutch counterclockwise to remove the fan blade and fan blade clutch as an assembly.
- Remove J-41240-5A fan clutch wrench (1) and long breaker bar (3) from the fan blade clutch.
- Remove J-41240 fan clutch remover and installer (2) from the fan and water pump pulley.

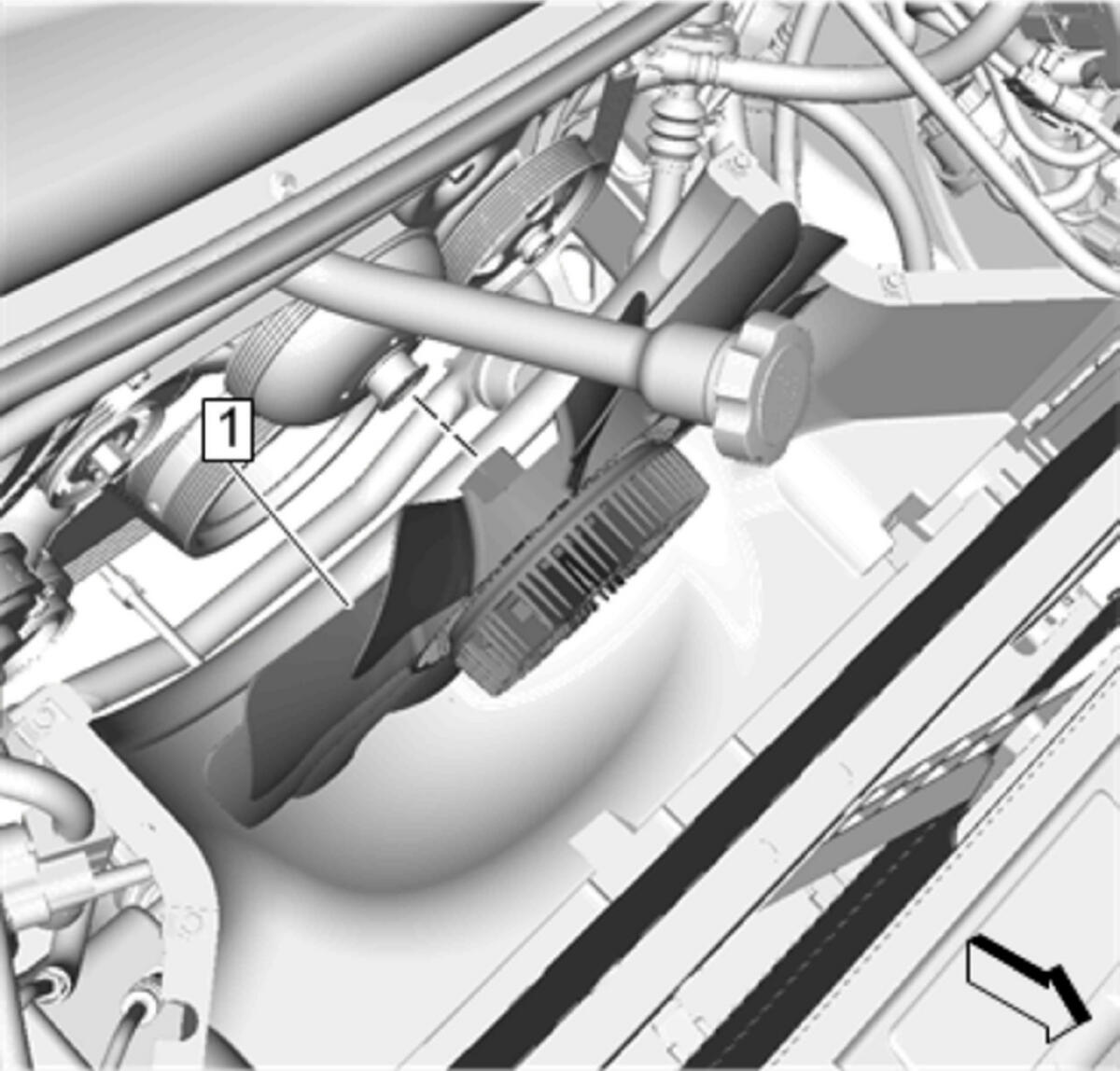

Remove the fan blade and fan blade clutch as an assembly (1).

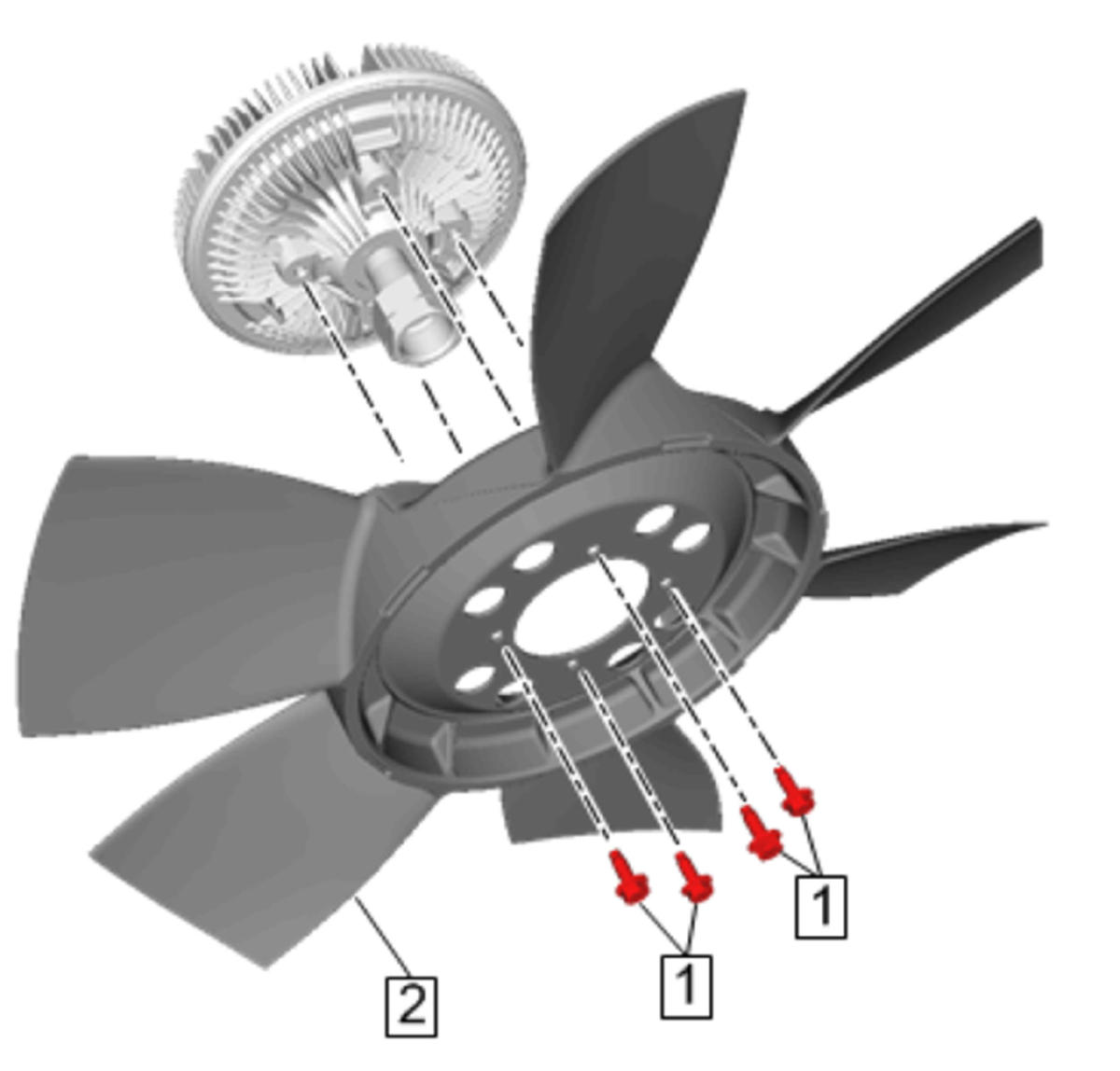

Fan Blade Bolt(1) - Remove[4x]
- Fan Blade(2) @ Fan Blade Clutch - Remove
