Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Coolant Fan Upper Shroud(1) - Remove - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Fan Blade(1) - Remove - Fan Blade Replacement (LWN) , or Fan Blade Replacement (LV1) , or Fan Blade Replacement (L96, LC8)
Engine Coolant Fan Rear Shroud(1) - Remove - Engine Coolant Fan Rear Shroud Replacement (LWN) , or Engine Coolant Fan Rear Shroud Replacement (LV1)

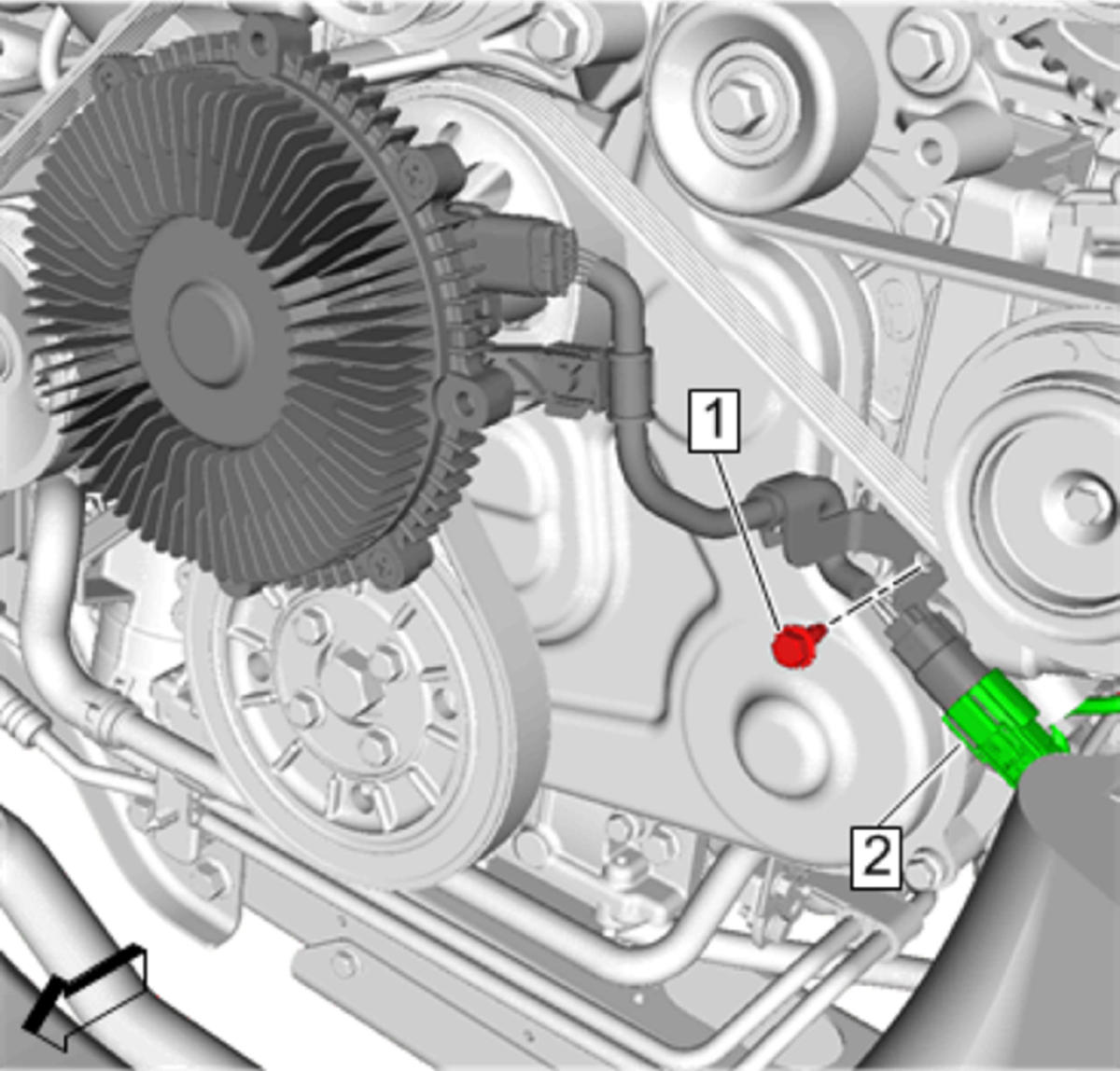

Fan Blade Clutch Bolt(1) - Remove
- Engine Wiring Harness(2) @ Fan Blade Clutch - Disconnect

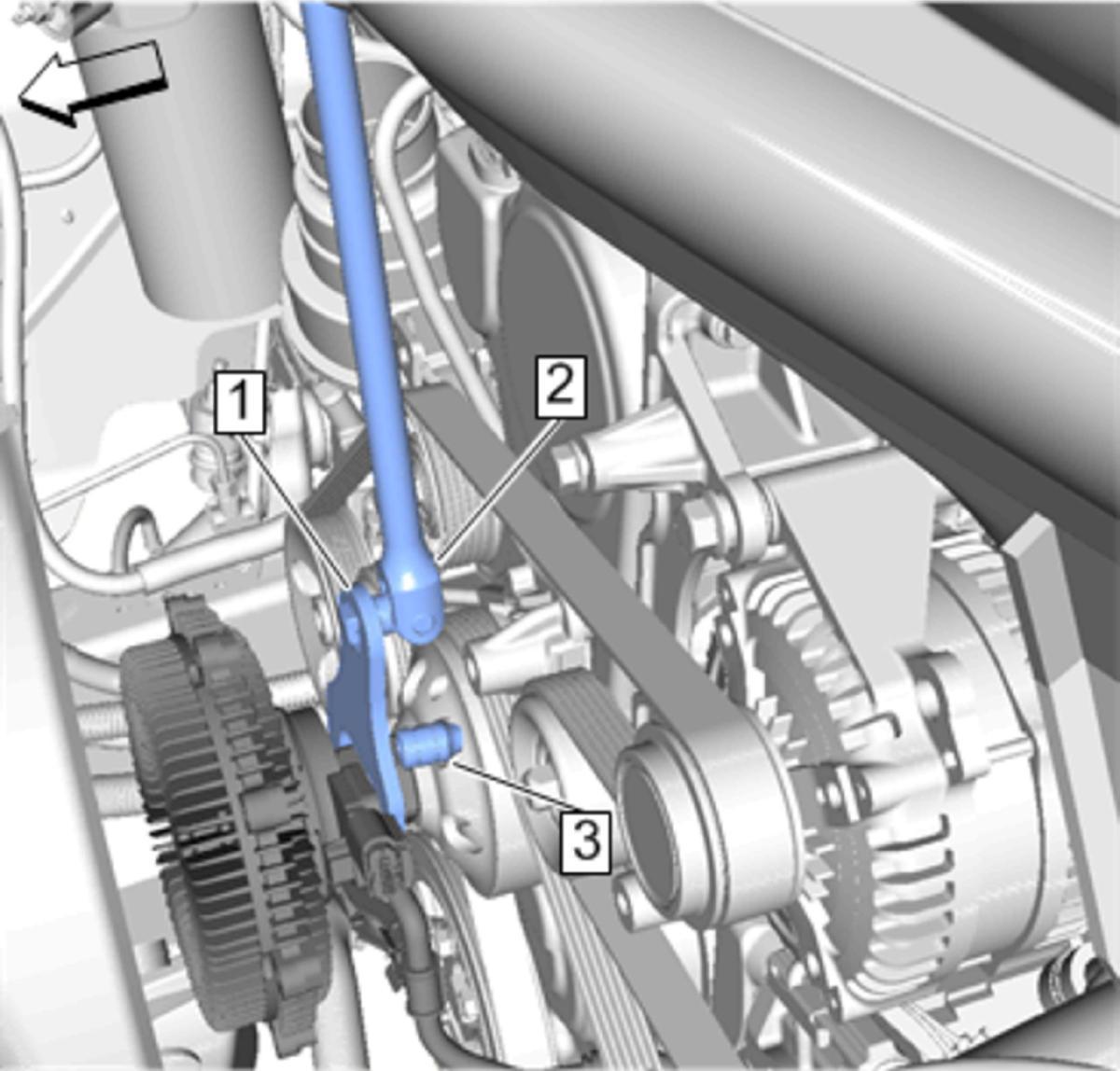

Install a suitable blunt end tool (3) into one of the holes in the fan pulley preventing the pulley from turning allowing the fan clutch to be removed.
- Install J-41240-2 fan clutch wrench (1) with a long breaker bar (2) onto the fan hub nut.
- Turn the fan blade clutch nut counterclockwise to remove the fan pulley.
- Remove J-41240-2 fan clutch wrench (1) with a long breaker bar (2) from the fan hub nut.
- Remove the suitable blunt end tool (3) from the fan pulley.

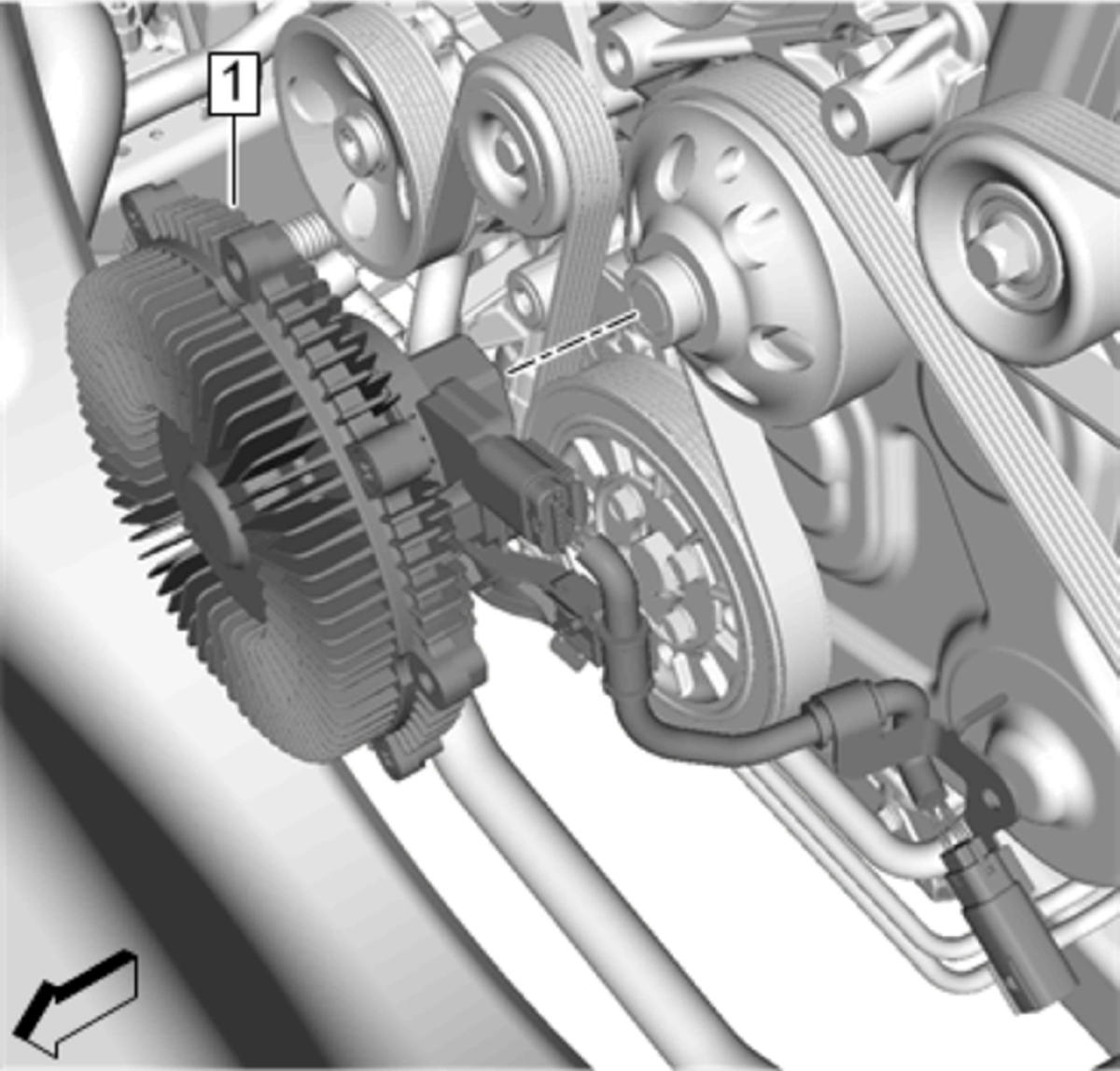

Fan Blade Clutch(1) @ Fan Pulley - Remove
