Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Component Fastener Tightening Caution .

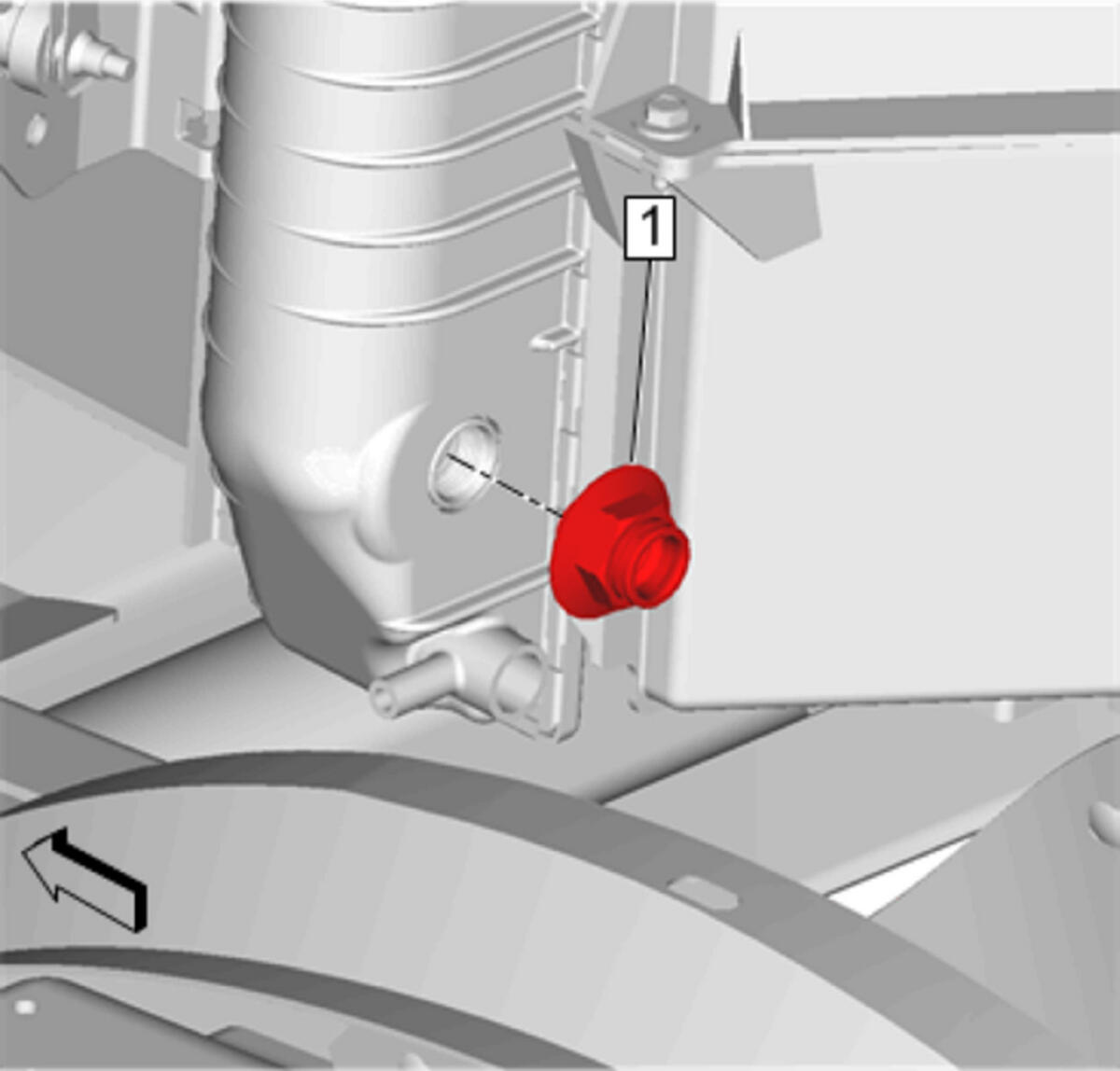

Engine Oil Cooler Connector(1) - Install and tighten 20 N.m (15 lb ft)
Courtesy of GENERAL MOTORS COMPANY

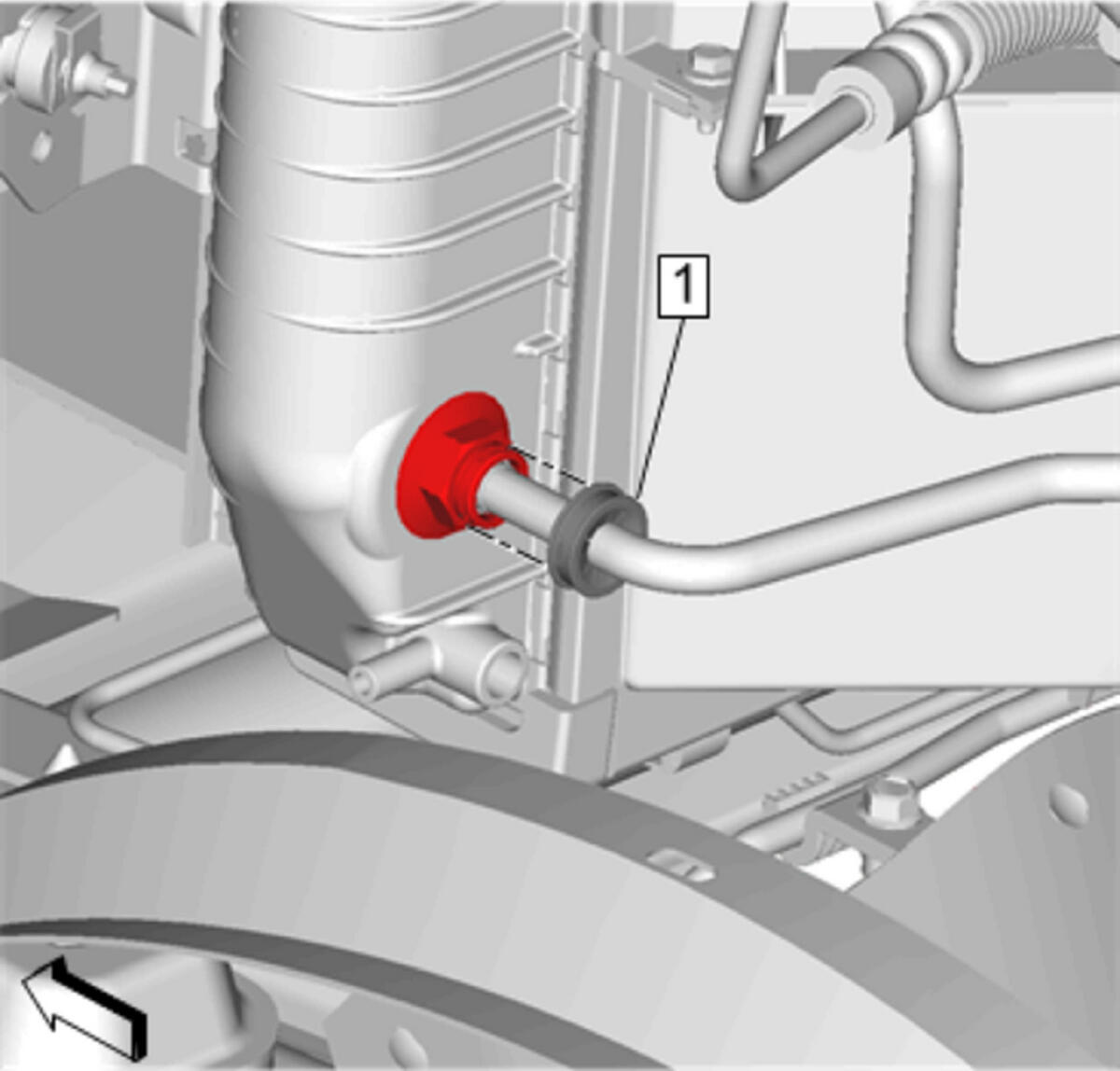

Engine Oil Cooler Pipe(1) @ Engine Oil Cooler Connector - Connect
Courtesy of GENERAL MOTORS COMPANY

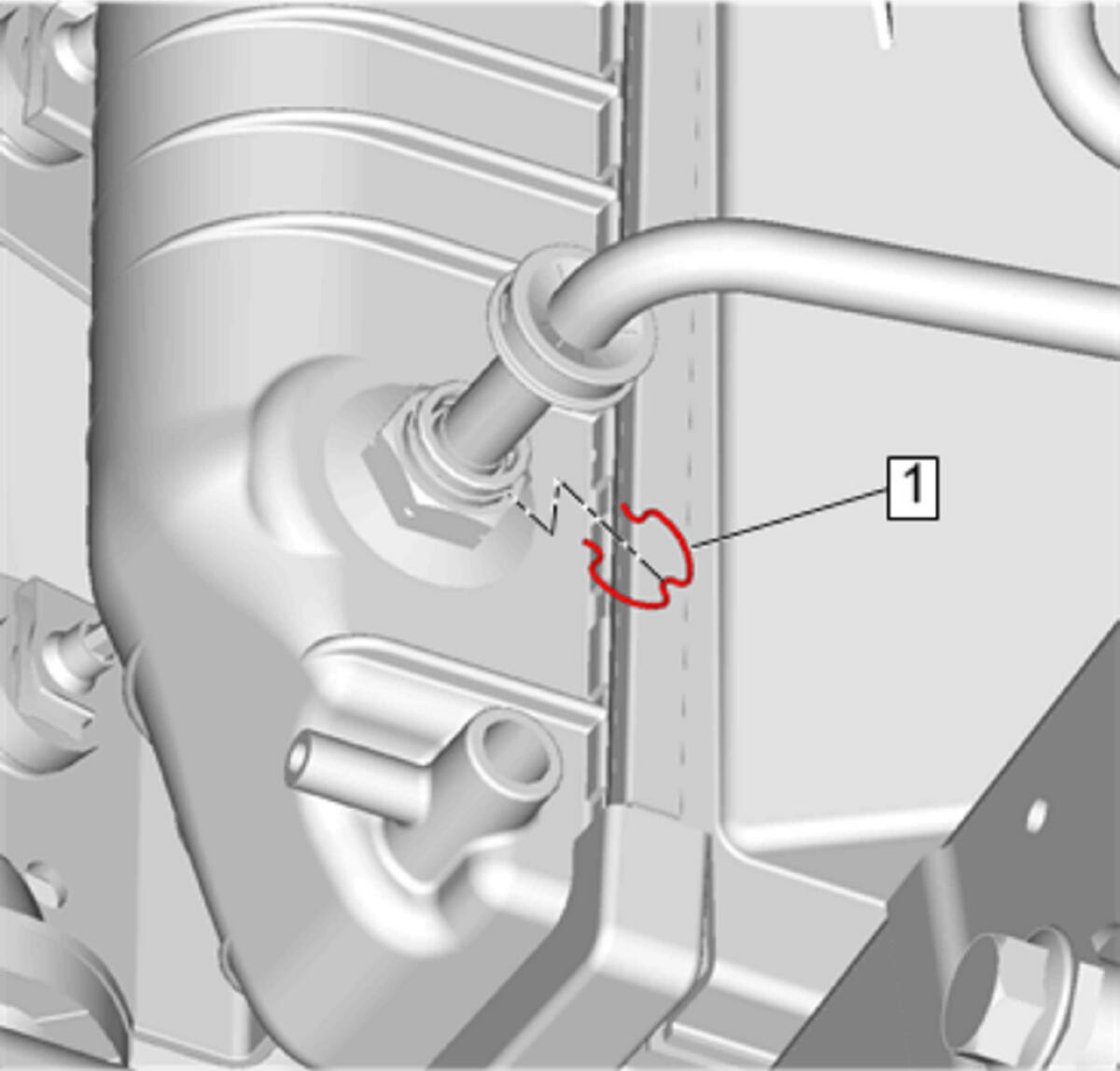

Engine Oil Cooler Connector Retainer (1) - Install a NEW retainer.
Courtesy of GENERAL MOTORS COMPANY

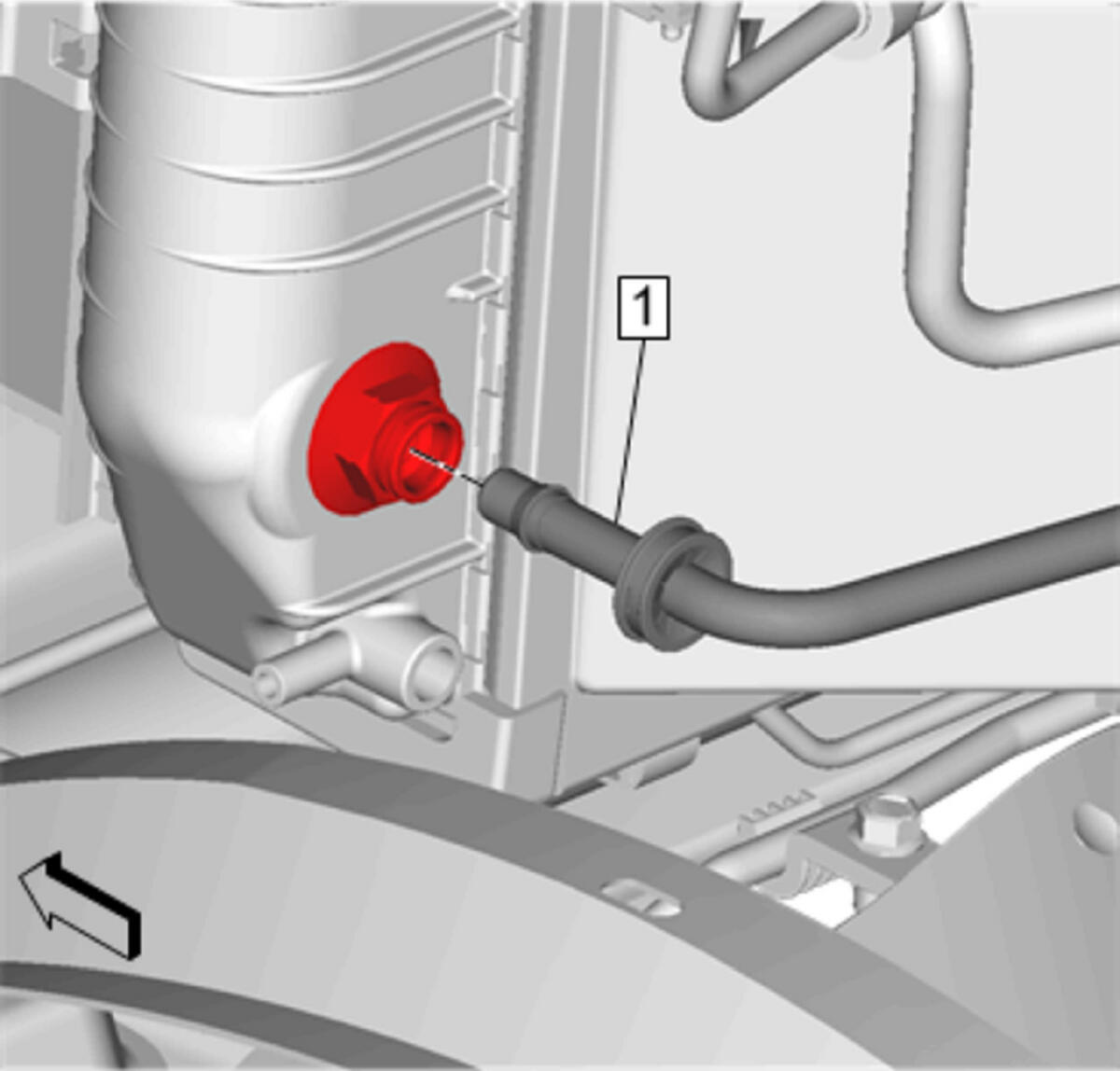

Engine Oil Cooler Hose Connector Cap (1) - Engage
