Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Drain the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Drain the engine oil. Engine Oil and Oil Filter Replacement

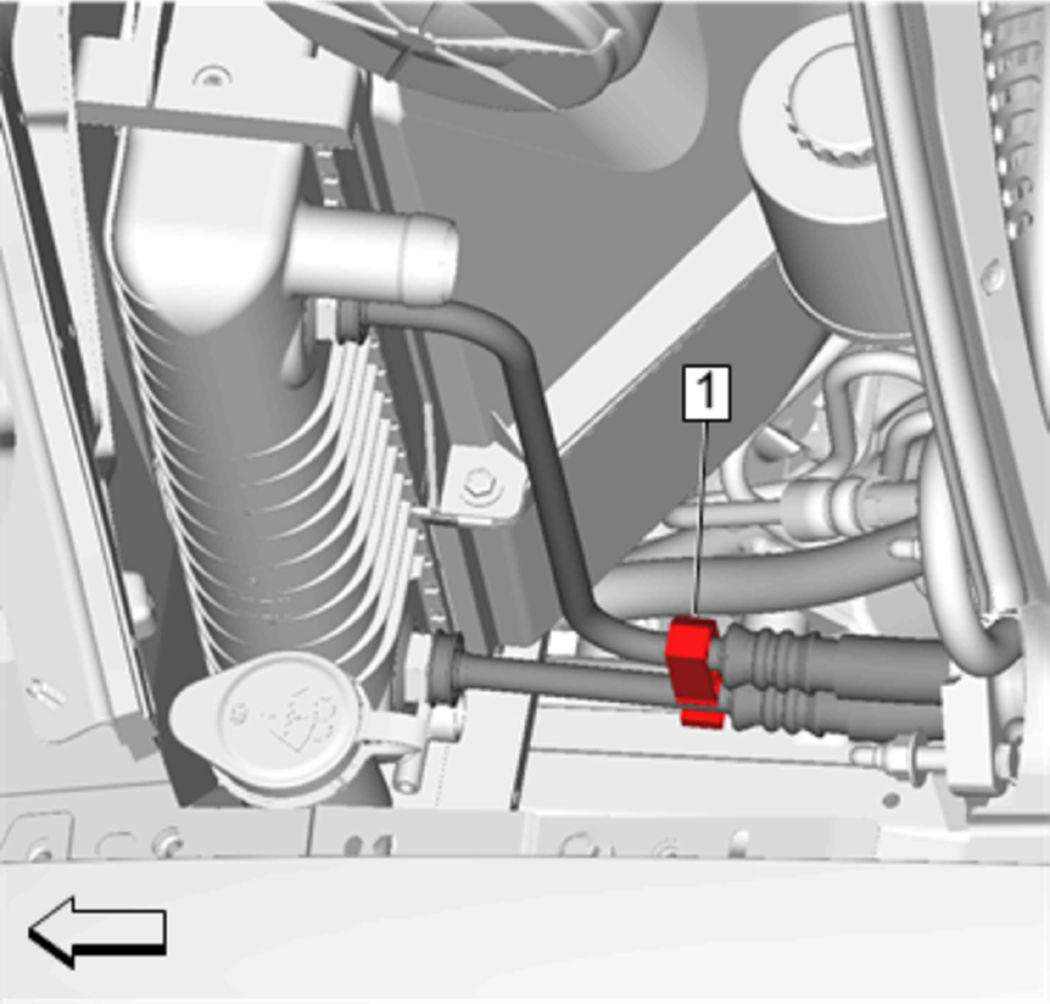

Engine Oil Cooler Hose(1) @ Engine Oil Cooler Connector - Disconnect - Engine Oil Cooler Pipe/Hose Quick Connect Fitting Replacement
- Engine Oil Cooler Hose(2) @ - Engine Oil Cooler Connector Disconnect - Engine Oil Cooler Pipe/Hose Quick Connect Fitting Replacement

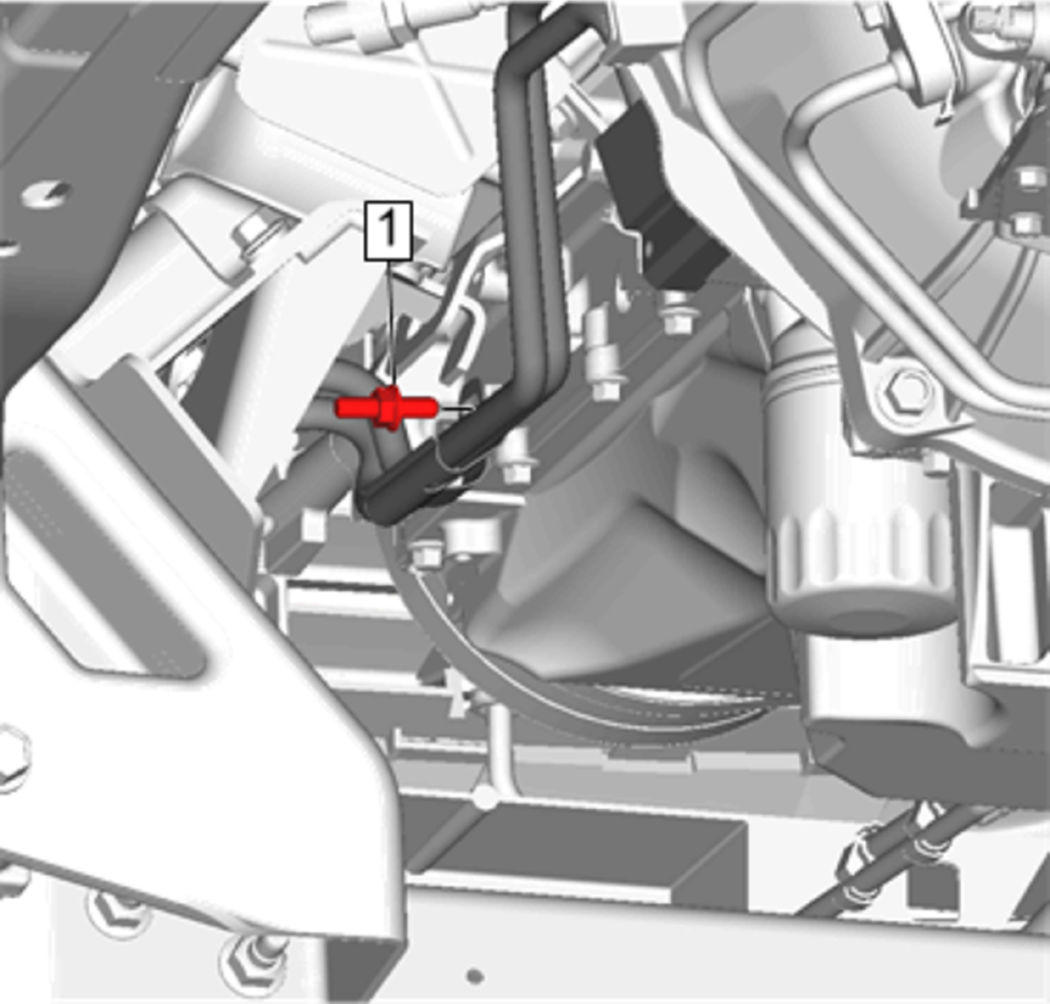

Engine Oil Cooler Hose Clip (1) - Remove
Remove the engine wiring harness from the engine oil cooler hose bracket bolt (1).
- Engine Oil Cooler Hose Bracket Bolt (1) - Remove
- {If equipped} Disconnect the engine coolant heater cord from the engine coolant heater.

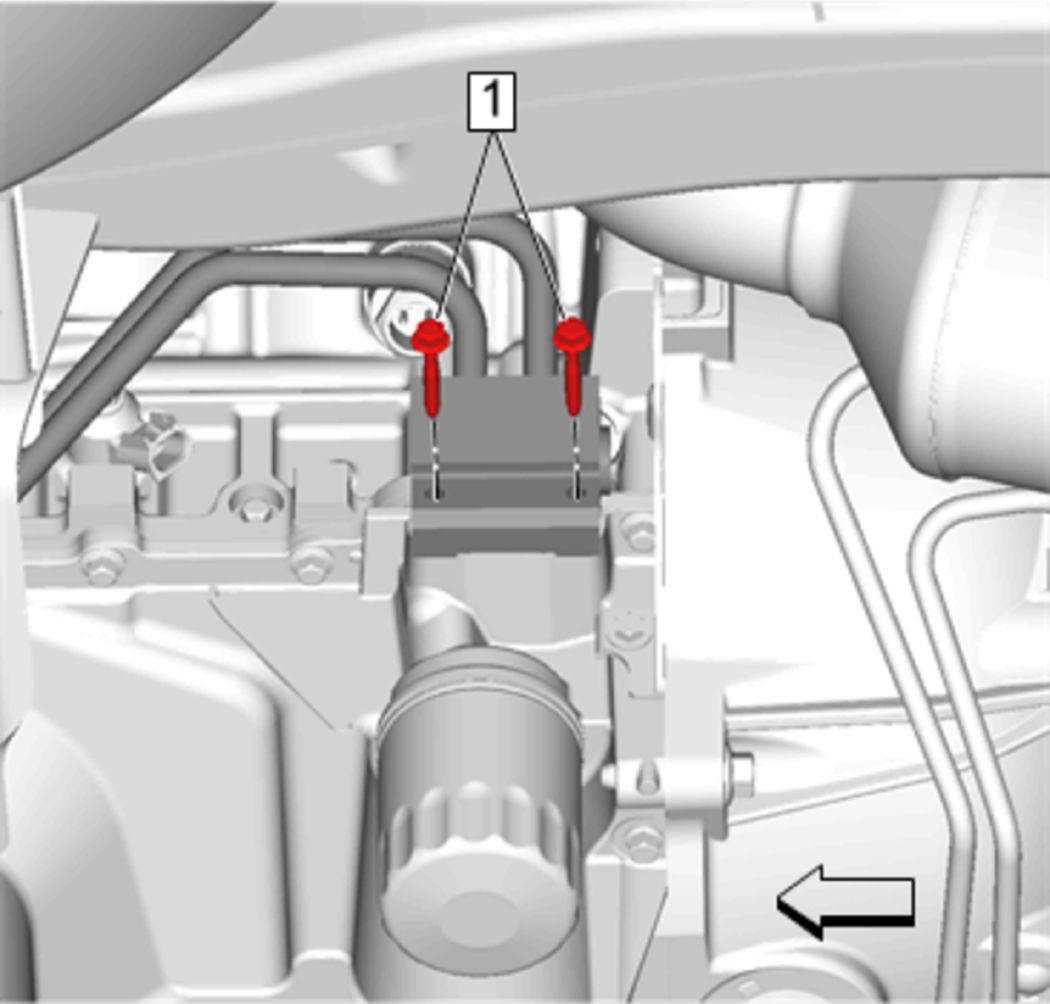

Engine Oil Cooler Hose Bolt(1) - Remove[2x]
Engine Oil Cooler Hose(1) - Remove
- Oil Pan Cover Gasket(2) - Remove and DISCARD
