Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

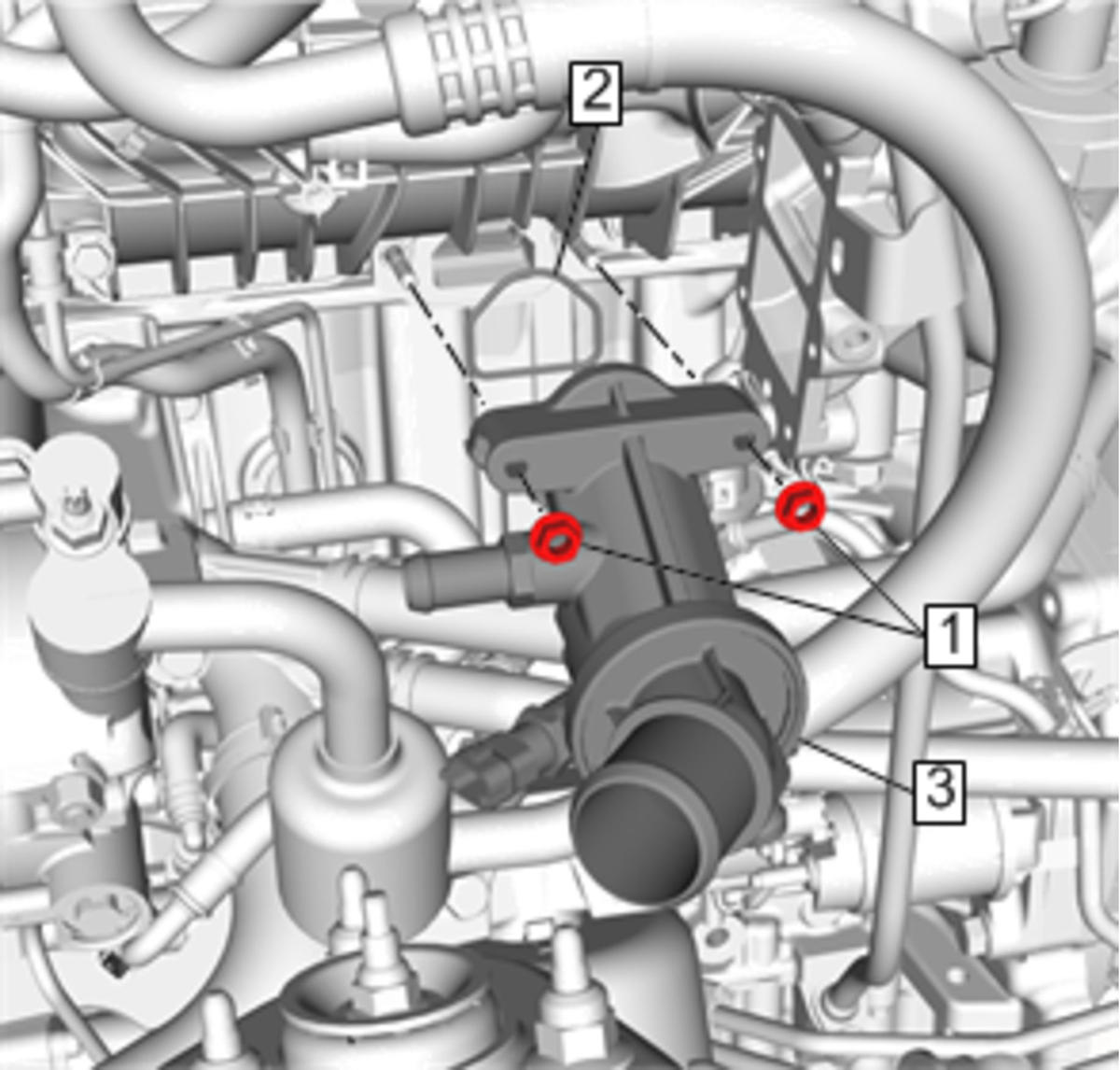

Engine Coolant Thermostat Seal(2) - Install a NEW seal.
- Engine Coolant Thermostat(3) - Install
- Engine Coolant Thermostat Nut(1) - Install and tighten[2x]9 N.m (80 lb in)

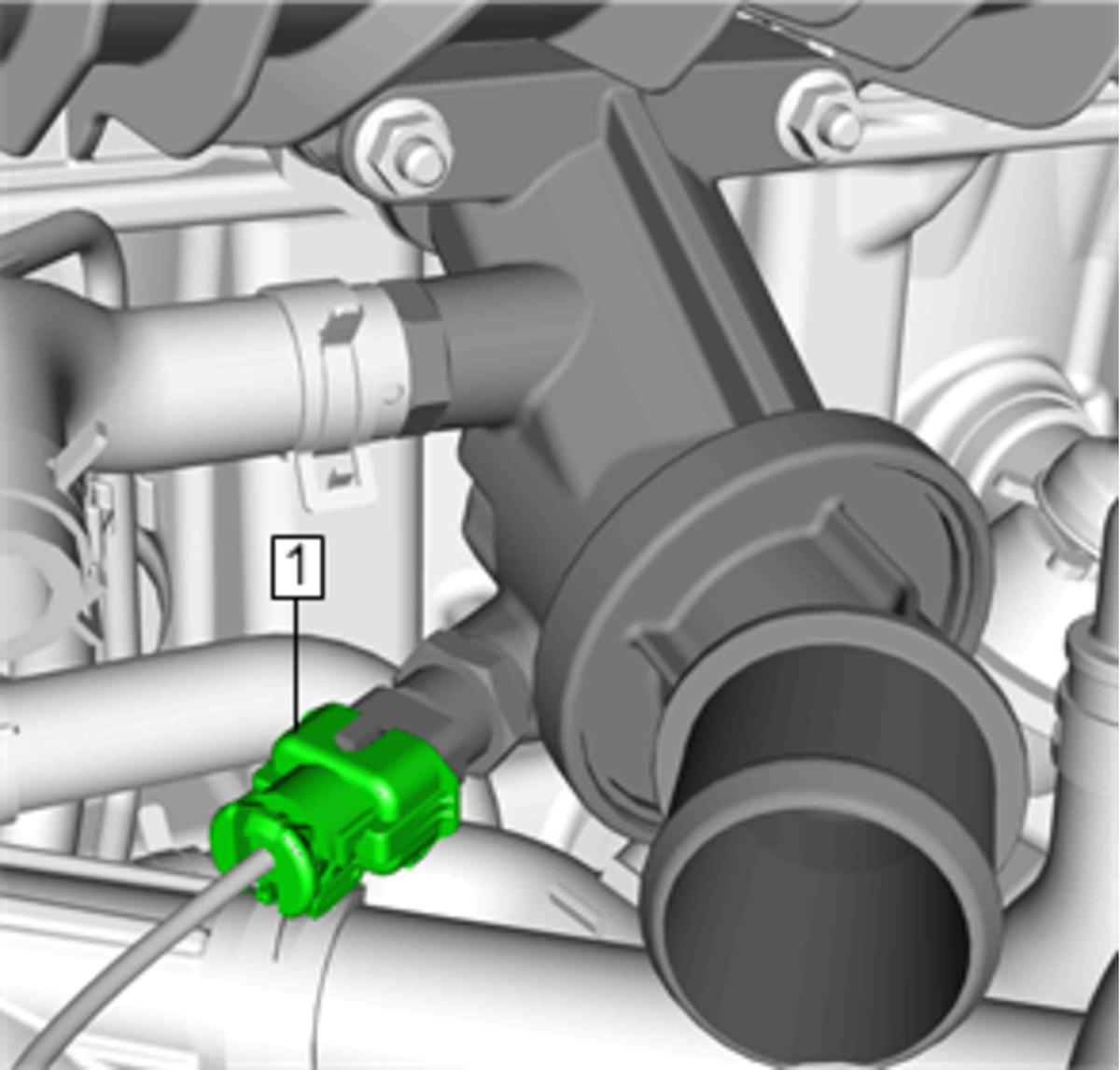

Engine Coolant Temperature Sensor Electrical Connector(1) - Connect

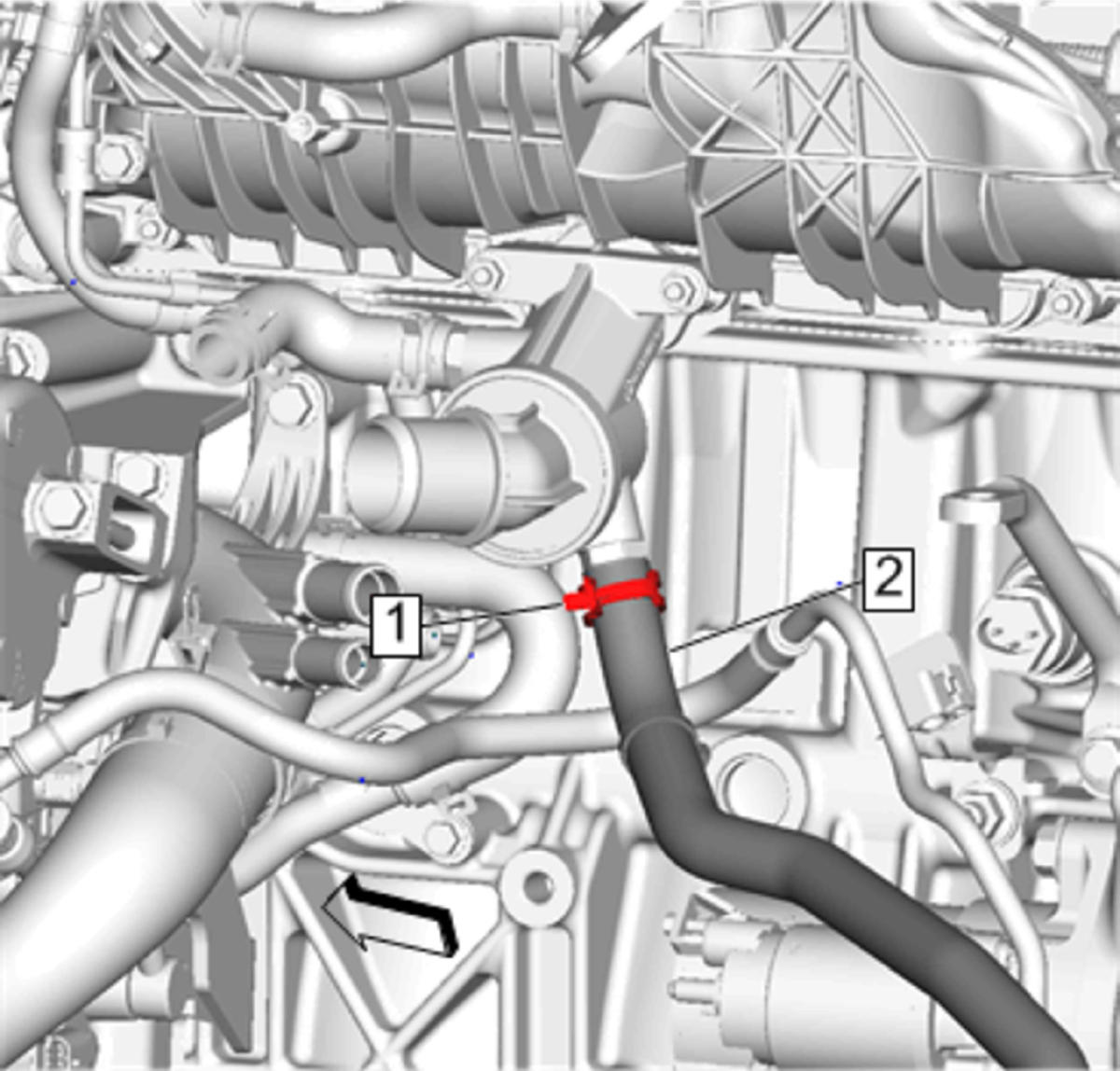

Fuel Heater Inlet Hose @ Engine Coolant Thermostat(2) - Remove
- Fuel Heater Inlet Hose Clamp @ Engine Coolant Thermostat(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type

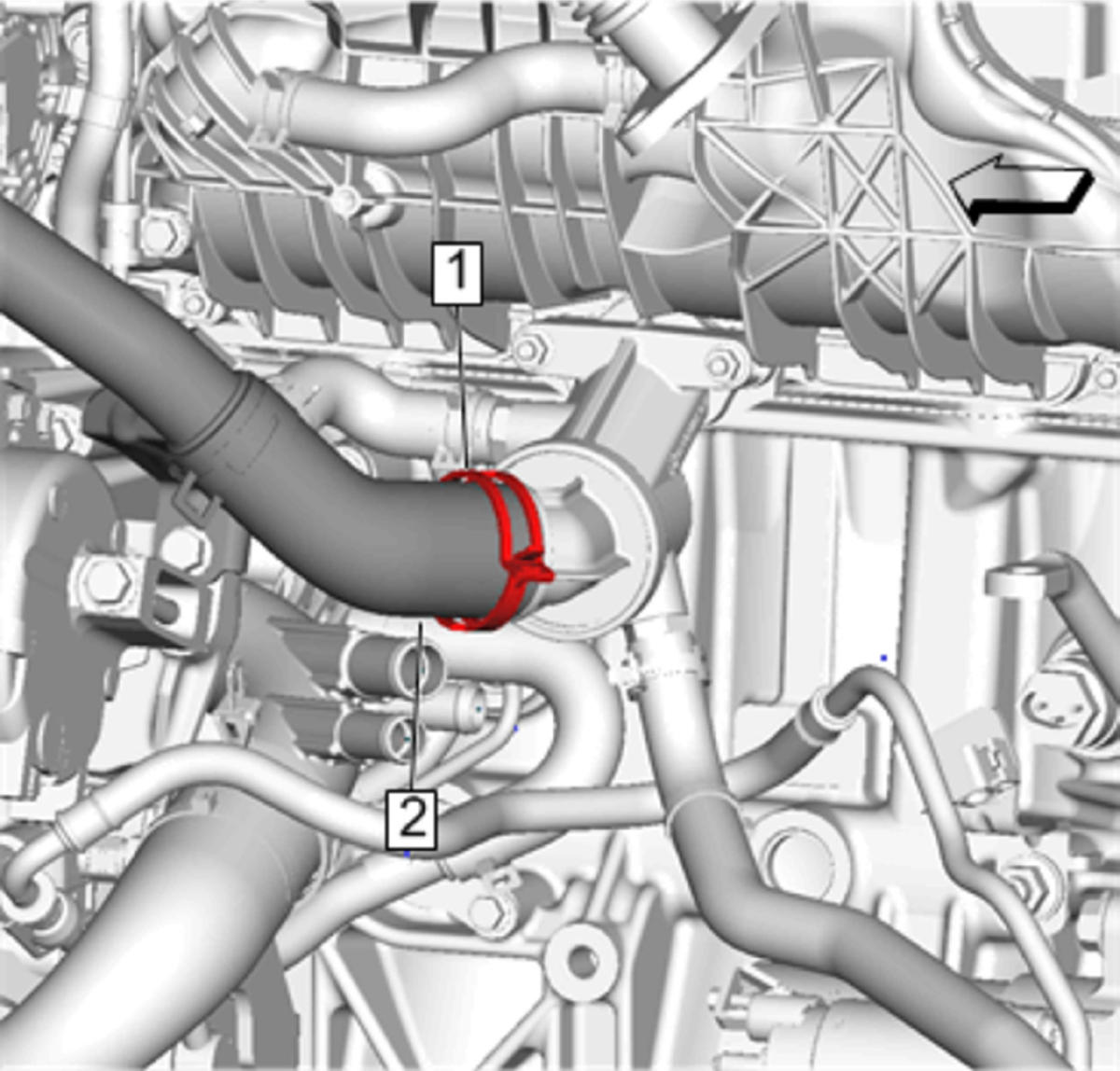

Radiator Inlet Hose @ Engine Coolant Thermostat(2) - Remove
- Radiator Inlet Hose Clamp @ Engine Coolant Thermostat(1) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Exhaust Gas Recirculation Valve - Install - Exhaust Gas Recirculation Valve Replacement
CAUTION:
Refer to Fastener Caution .
