Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- CAUTION:
Refer to Component Fastener Tightening Caution .

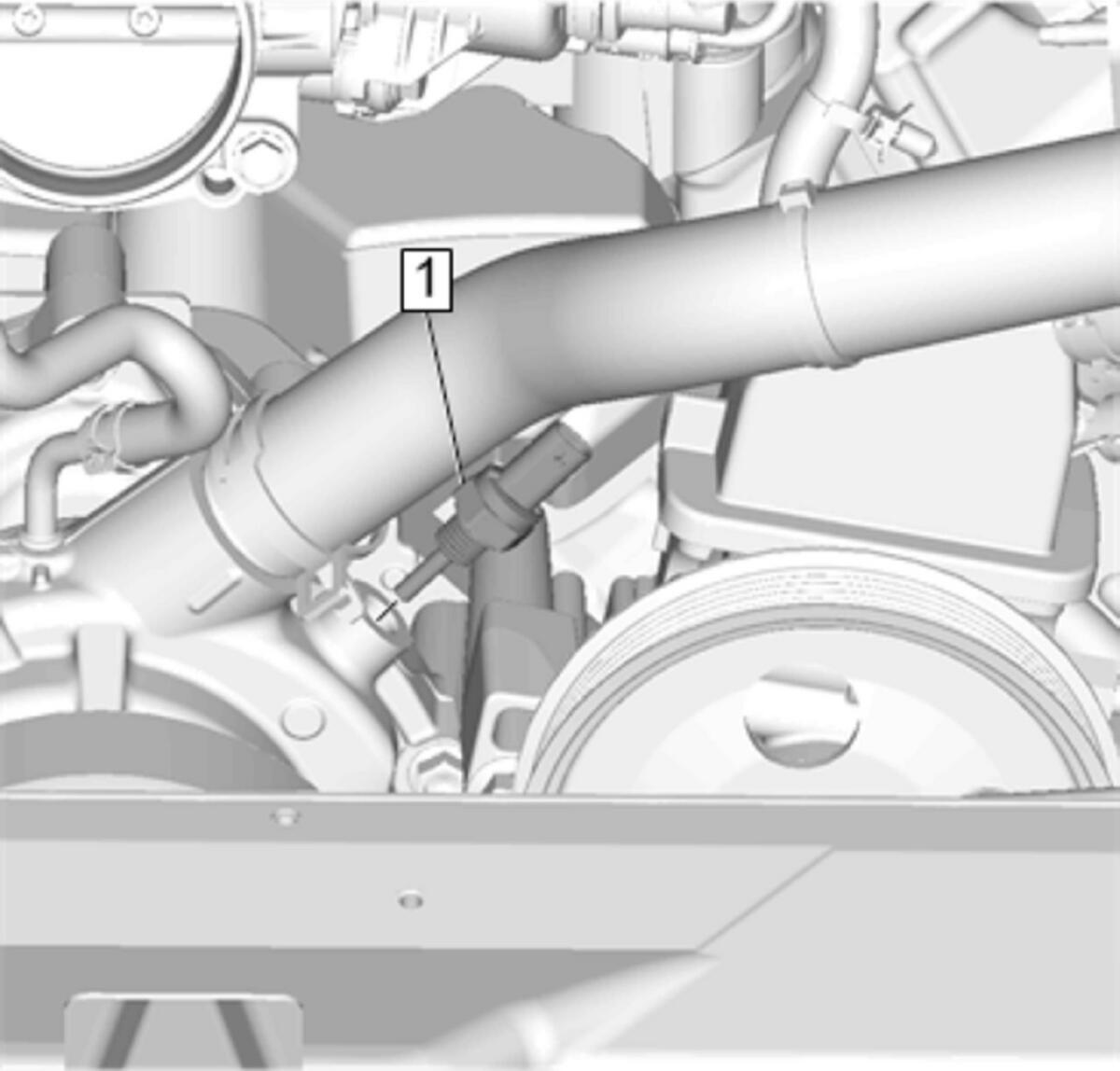

Engine Coolant Temperature Sensor(1) - Install and tighten 20 N.m (15 lb ft)

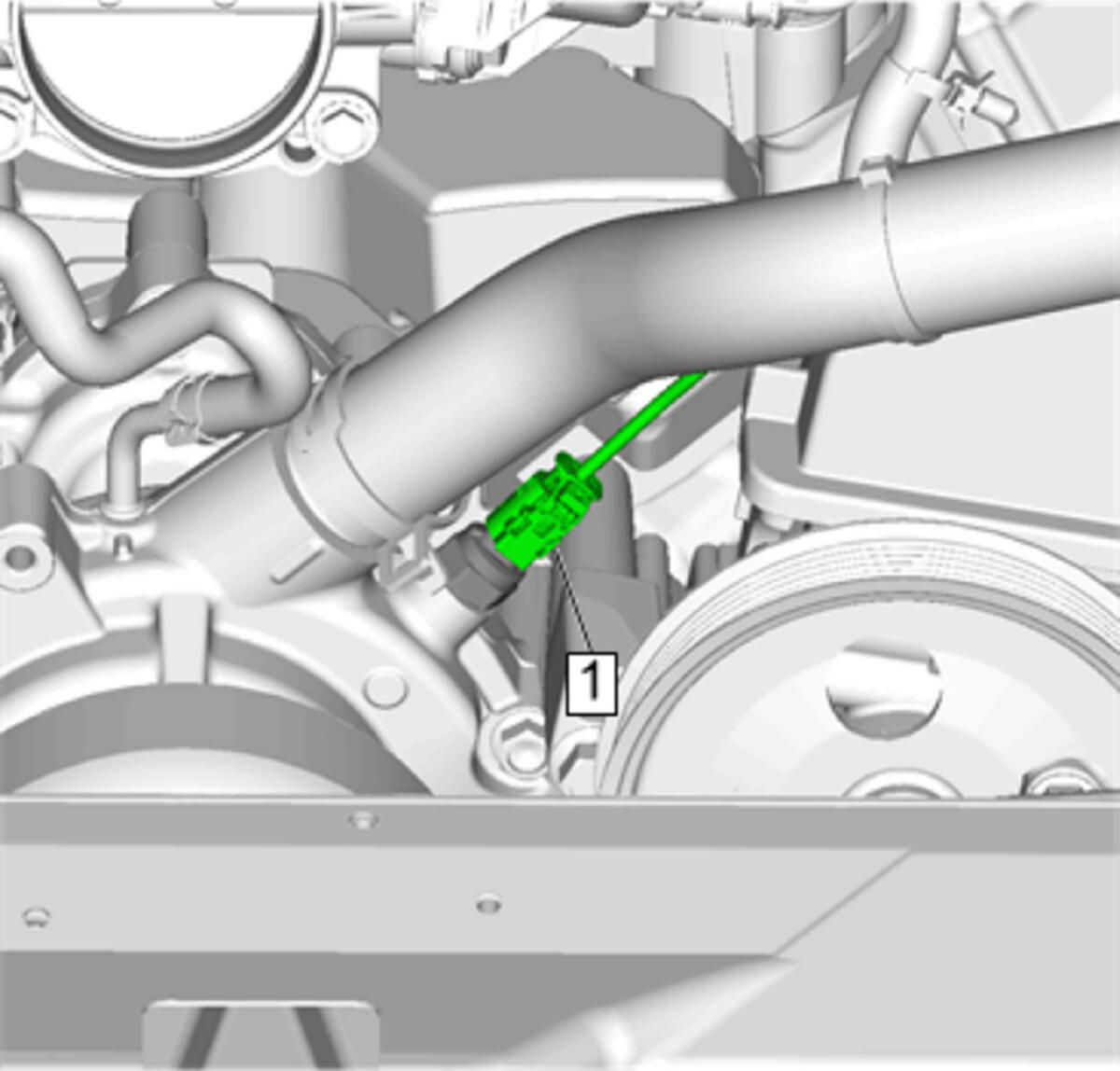

Electrical Connector(1) @ Engine Coolant Temperature Sensor - Connect
- Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and check for coolant leaks.
