Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Coolant Fan Upper Shroud(1) - Install
- CAUTION:
Refer to Fastener Caution .

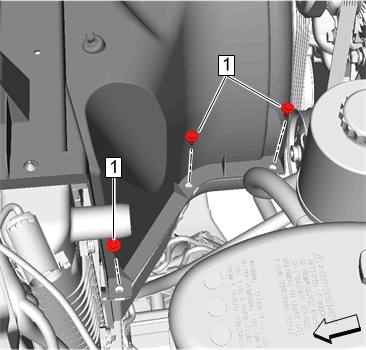

Engine Coolant Fan Shroud Bolt-Left Side(1) - Install and tighten[3x]9 N.m (80 lb in)

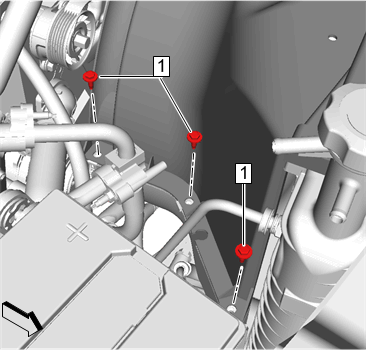

Engine Coolant Fan Shroud Bolt-Right Side(1) - Install and tighten[3x]9 N.m (80 lb in)

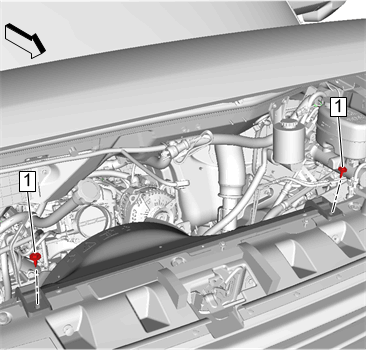

Engine Coolant Fan Shroud Bolt- Upper(1) - Install and tighten[2x]13.5 N.m (119 lb in)
- Engine Oil Cooler Pipe @ Radiator - Install - Engine Oil Cooler Pipe Replacement (LWN) , or Engine Oil Cooler Pipe Replacement (LV1)
- Engine Oil Cooler Pipe @ Engine Coolant Fan Upper Shroud - Install
- Oil Level Indicator Tube - Install - Oil Level Indicator Tube Replacement (Upper) , or Oil Level Indicator Tube Replacement (Lower)
- Transmission Fluid Filler Tube - Install - Transmission Fluid Filler Tube and Seal Replacement
- Air Conditioning Compressor and Condenser Hose - Install - Air Conditioning Compressor and Condenser Hose Replacement (LWN) , or Air Conditioning Compressor and Condenser Hose Replacement (L96, LC8)
- Battery Positive Cable @ Engine Coolant Fan Upper Shroud - Reposition - Battery Positive Cable Replacement (L96/LC8 with K4B) , or Battery Positive Cable Replacement (L96/LC8 without K4B) , or Battery Positive Cable Replacement (LWN) , or Battery Positive Cable Replacement (LV1 with K68 and K4B) , or Battery Positive Cable Replacement (LV1 with KG4/KW5 and K4B) , or Battery Positive Cable Replacement (LV1 with K68) , or Battery Positive Cable Replacement (LV1 with KG4/KW5)
- Radiator Inlet Hose - Install - Radiator Inlet Hose Replacement (LWN) , or Radiator Inlet Hose Replacement (LV1) , or Radiator Inlet Hose Replacement (L96, LC8)
Coolant Recovery Reservoir Overflow Hose(1) @ Engine Coolant Fan Upper Shroud - Install - Coolant Recovery Reservoir Overflow Hose Replacement (L96, LC8, LV1)
- Air Cleaner Resonator Outlet Duct - Install - Air Cleaner Resonator Outlet Duct Replacement
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
- Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
- Start the engine and inspect for leaks.
