Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
Engine Coolant Fan Rear Shroud - Install

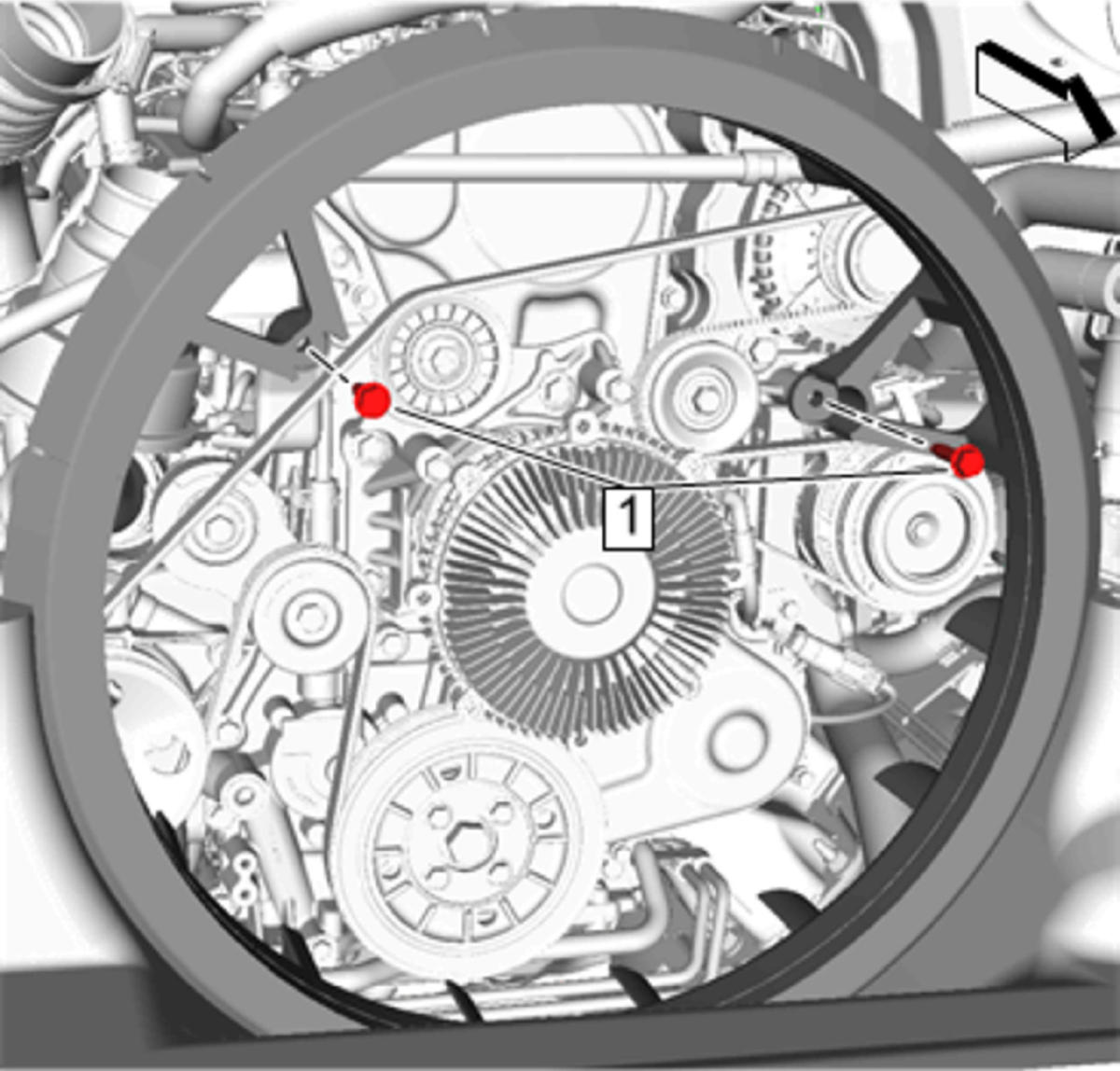

Engine Coolant Fan Rear Shroud Bolt(1) - Install and tighten[2x]22 N.m (16 lb ft)
- Raise and support the vehicle. Lifting and Jacking the Vehicle

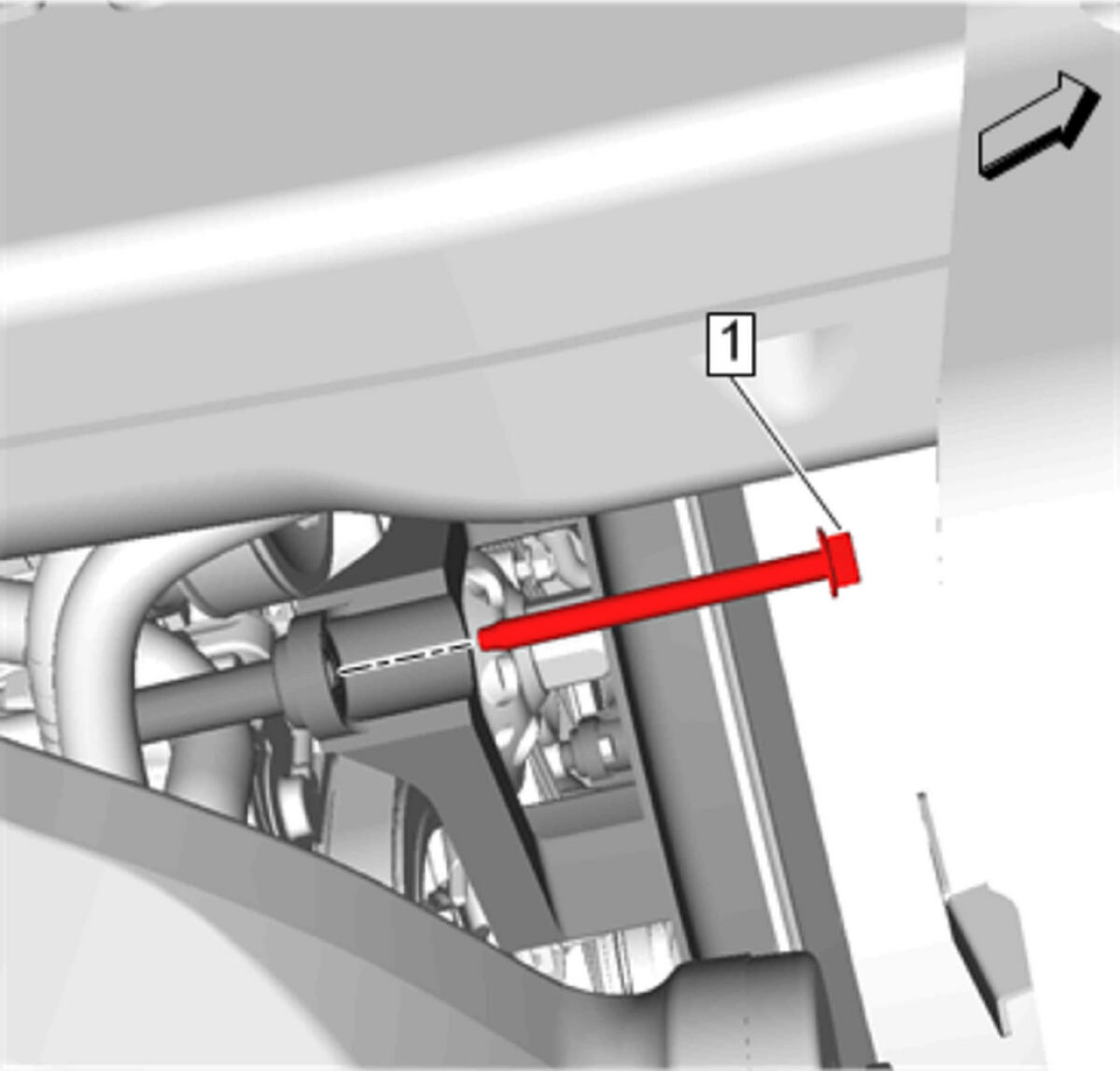

Engine Coolant Fan Rear Shroud Bolt(1) - Install and tighten22 N.m (16 lb ft)
- Lower the vehicle.

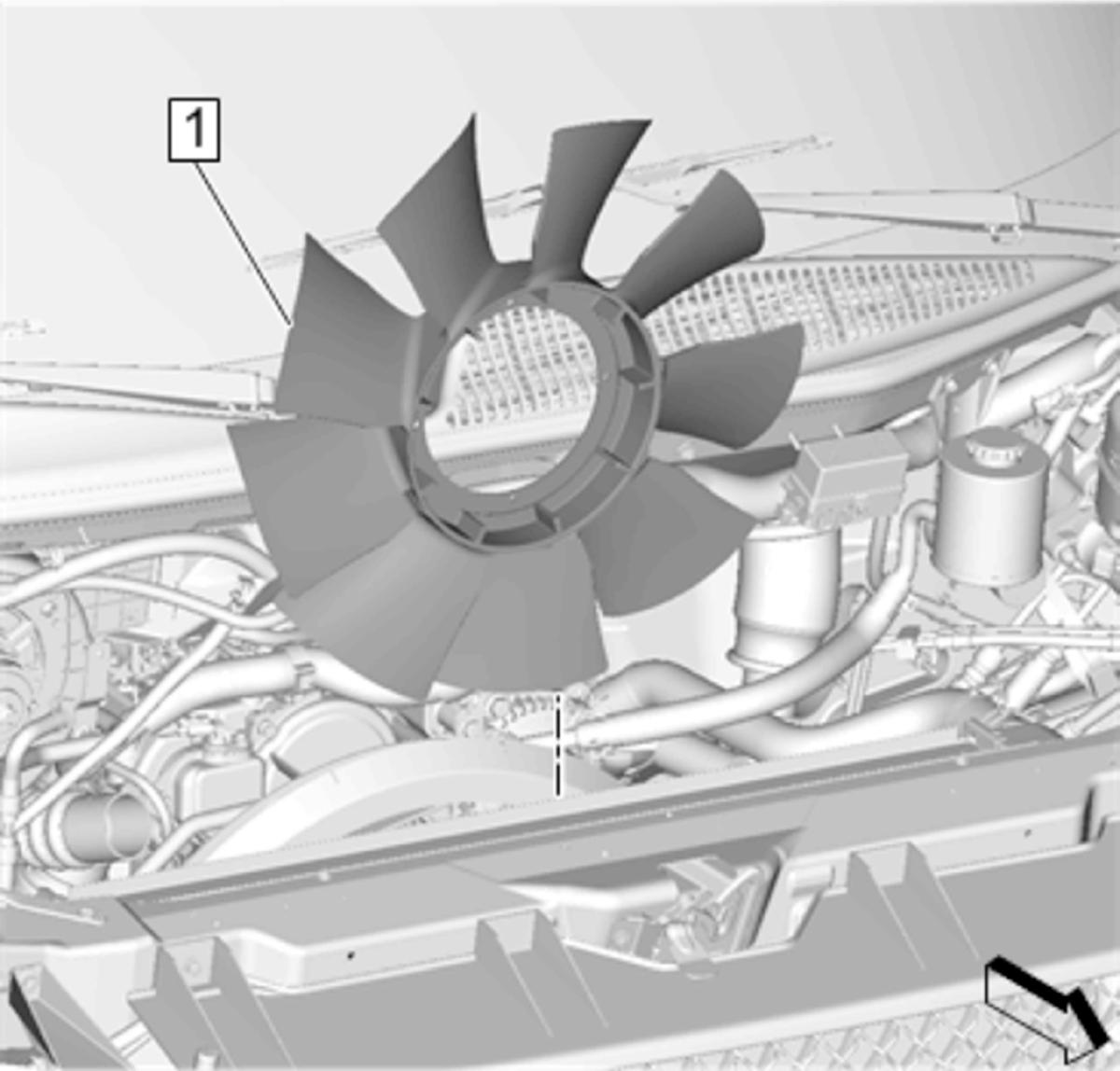

Fan Blade(1) - Install - Fan Blade Replacement (LWN) , or Fan Blade Replacement (LV1) , or Fan Blade Replacement (L96, LC8)
Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
