Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Lower Shroud(1) - Install
Raise and support the vehicle. Lifting and Jacking the Vehicle
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

Engine Coolant Fan Lower Shroud Bolt-Left Side(1) - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Lower Shroud Bolt-Right Side(1) - Install and tighten9 N.m (80 lb in)
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose Clip(1) @ Engine Coolant Fan Lower Shroud - Install
Courtesy of GENERAL MOTORS COMPANY

Radiator Outlet Hose Clip(1) @ Radiator Outlet Hose Bracket - Install - Radiator Outlet Hose Replacement (LWN) , or Radiator Outlet Hose Replacement (LV1) , or Radiator Outlet Hose Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

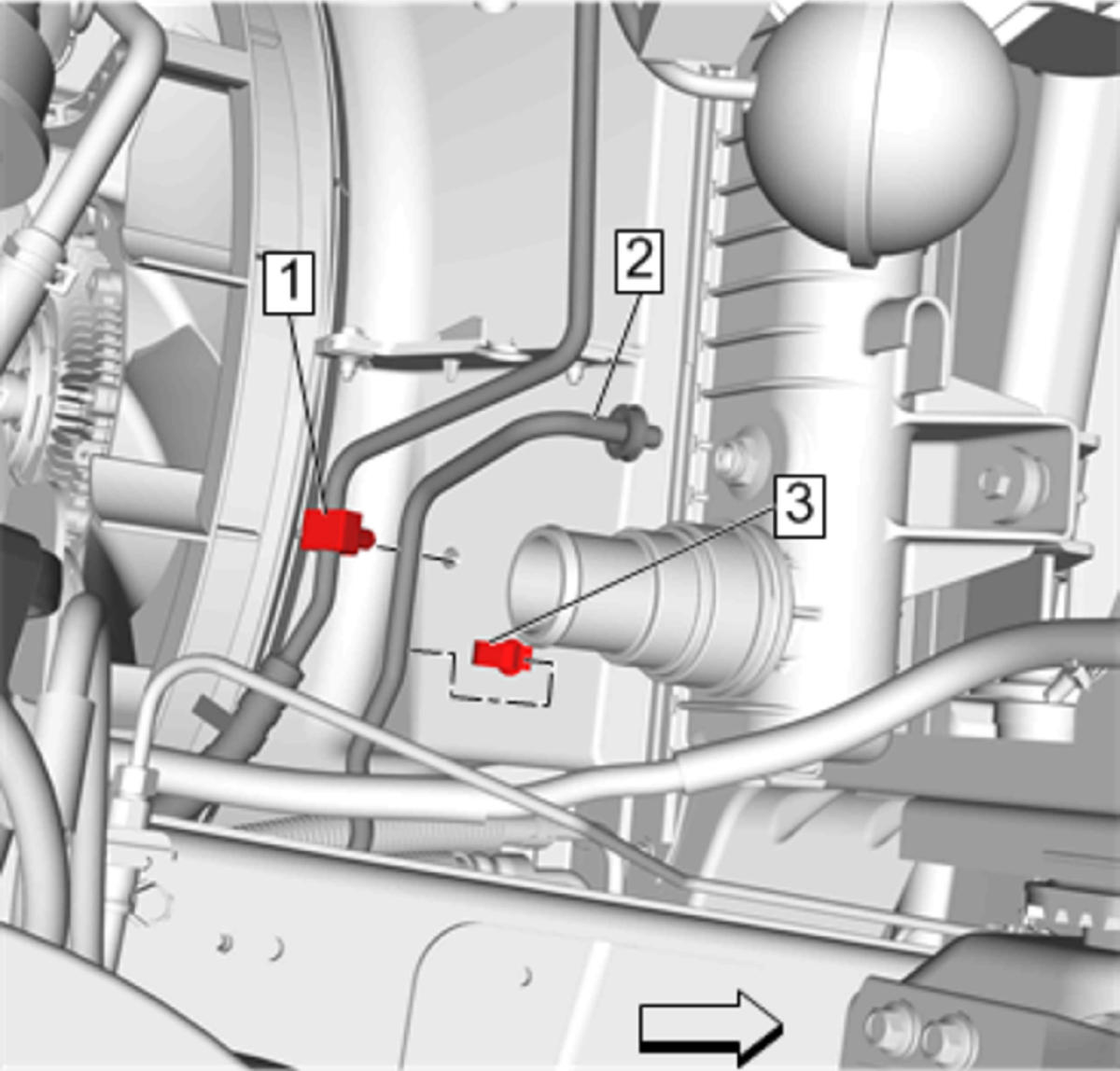

Transmission Fluid Cooler Pipe(2) @ Transmission Fluid Cooler Pipe Clip(3) - Install
Transmission Fluid Cooler Pipe Clip(1) @ Engine Coolant Fan Lower Shroud - Install
Lower the vehicle.
Courtesy of GENERAL MOTORS COMPANY

Radiator(1) - Install - Radiator Replacement (LWN) , or Radiator Replacement (LV1) , or Radiator Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Fan Blade Clutch(1) - Install - Fan Blade Clutch Replacement (LWN) , or Fan Blade Clutch Replacement (LV1) , or Fan Blade Clutch Replacement (L96, LC8)
Courtesy of GENERAL MOTORS COMPANY

Engine Coolant Fan Rear Shroud(1) - Install - Engine Coolant Fan Rear Shroud Replacement (LWN) , or Engine Coolant Fan Rear Shroud Replacement (LV1)
Courtesy of GENERAL MOTORS COMPANY

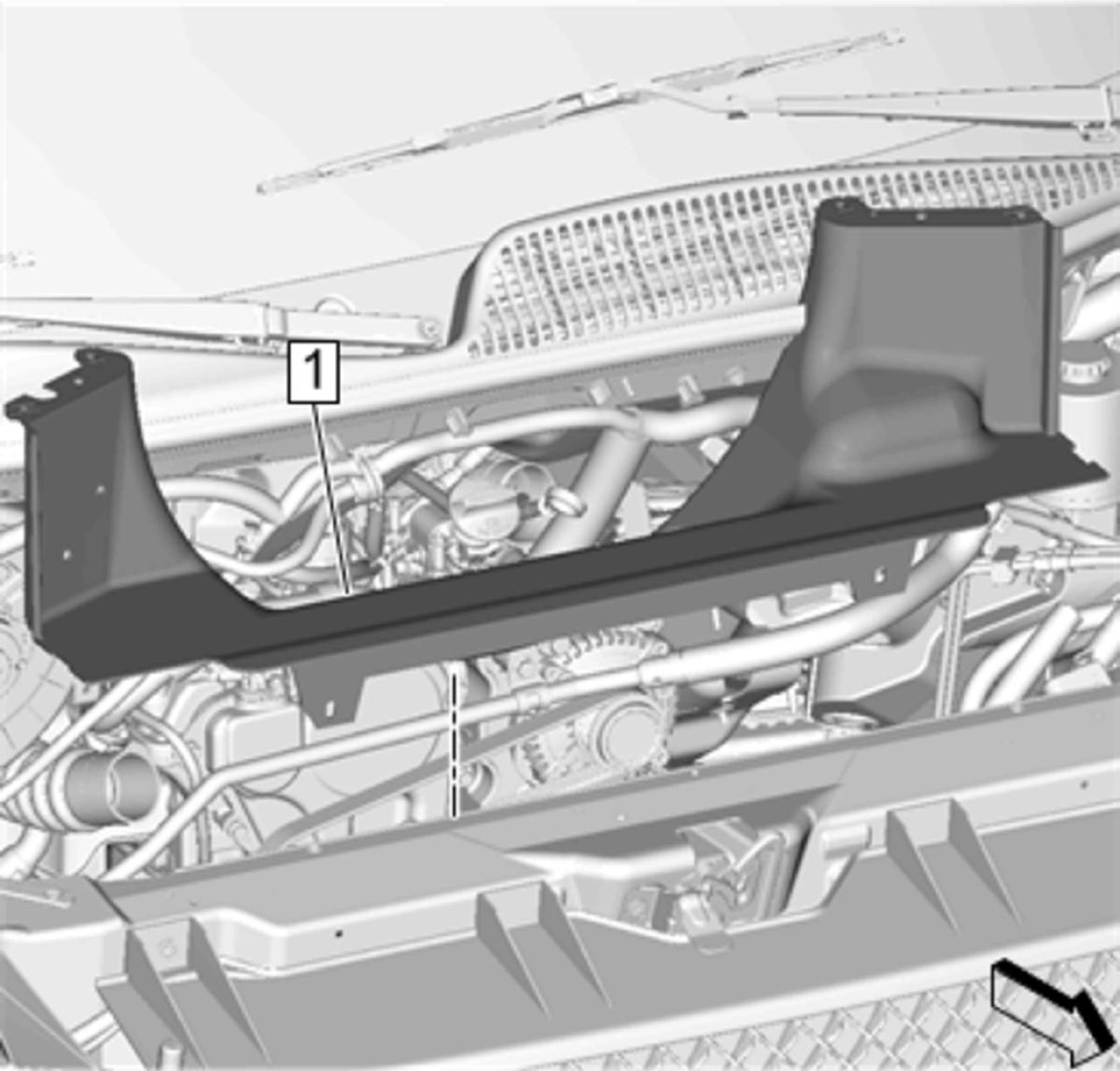

Engine Coolant Fan Upper Shroud(1) - Install - Engine Coolant Fan Upper Shroud Replacement (LWN) , or Engine Coolant Fan Upper Shroud Replacement (LV1) , or Engine Coolant Fan Upper Shroud Replacement (L96, LC8)
Fill the cooling system. Cooling System Draining and Filling (Static Fill LWN) , or Cooling System Draining and Filling (GE 47716 LWN) , or Cooling System Draining and Filling (Static LC8, LV1, L96) , or Cooling System Draining and Filling (GE47716 LC8, LV1, L96)
Start the engine and check for coolant leaks.
