Removal Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
- Generator and Power Steering Pump Bracket - Remove - Generator and Power Steering Pump Bracket Replacement (L96, LC8)
Engine Coolant Air Bleed Hose Clamp(1) @ Engine Coolant Air Bleed Pipe(3) - Disengage - Hose Clamp Replacement Guidelines - Spring Type
- Engine Coolant Air Bleed Hose(2) @ Engine Coolant Air Bleed Pipe(3) - Disconnect

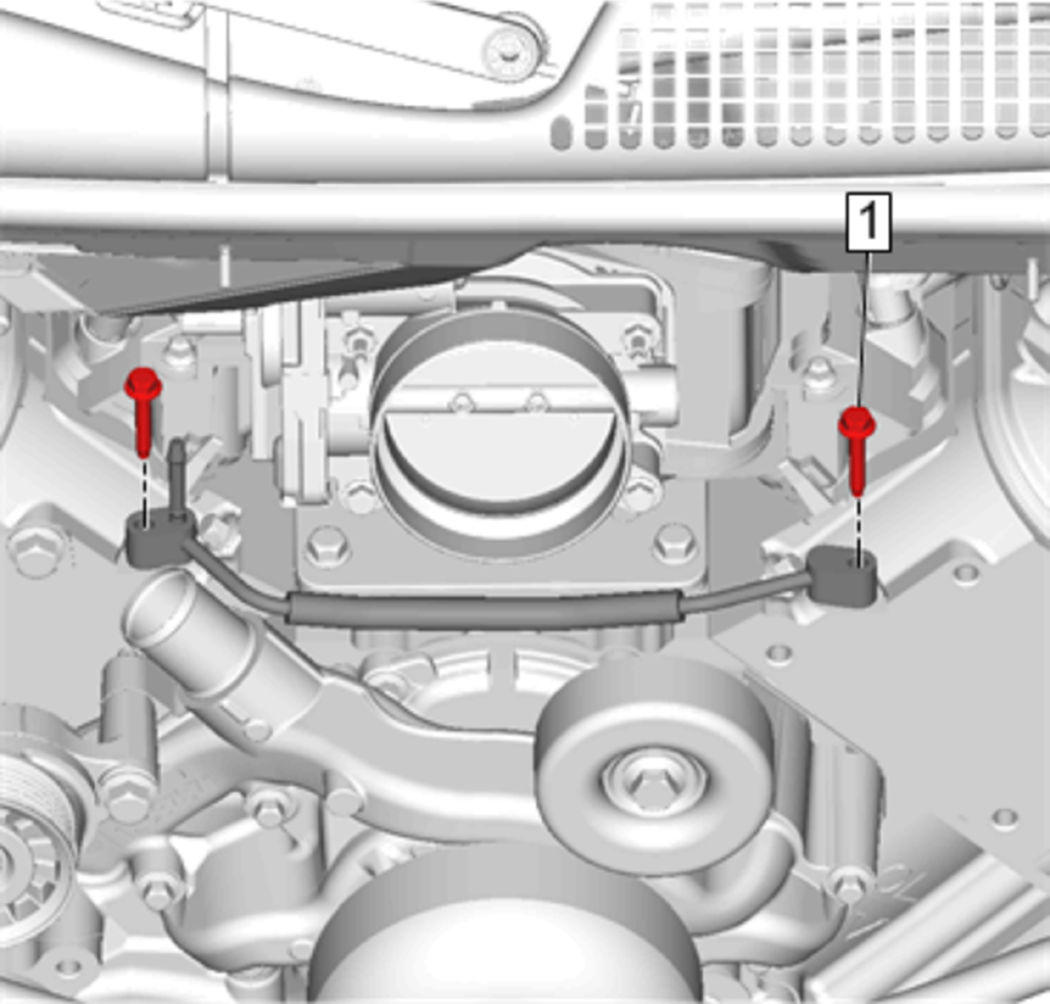

Engine Coolant Air Bleed Pipe Bolt(1) - Remove[2x]
Engine Coolant Air Bleed Pipe(1) - Remove

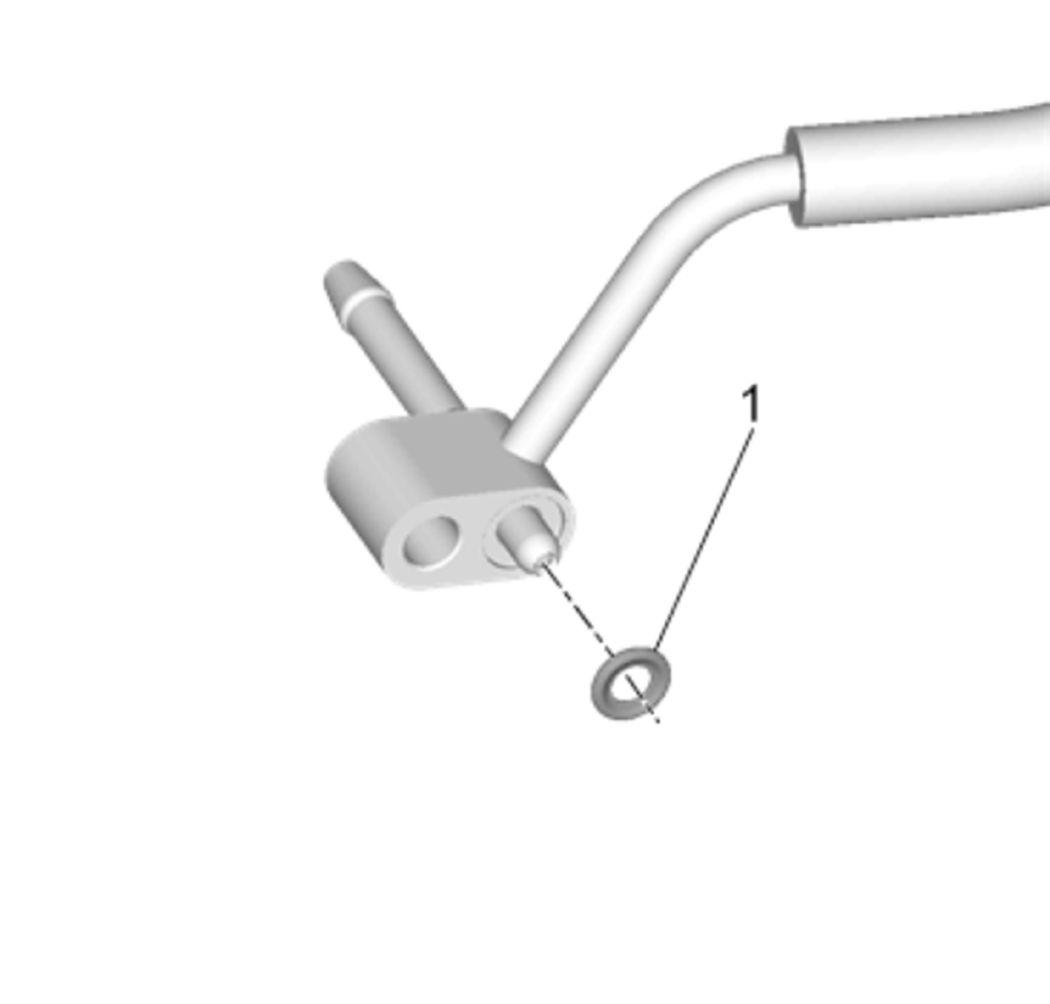

Engine Coolant Air Bleed Pipe O-Ring(1) - Remove and DISCARD[2x]
