Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Engine Cover - Remove - Engine Cover Replacement

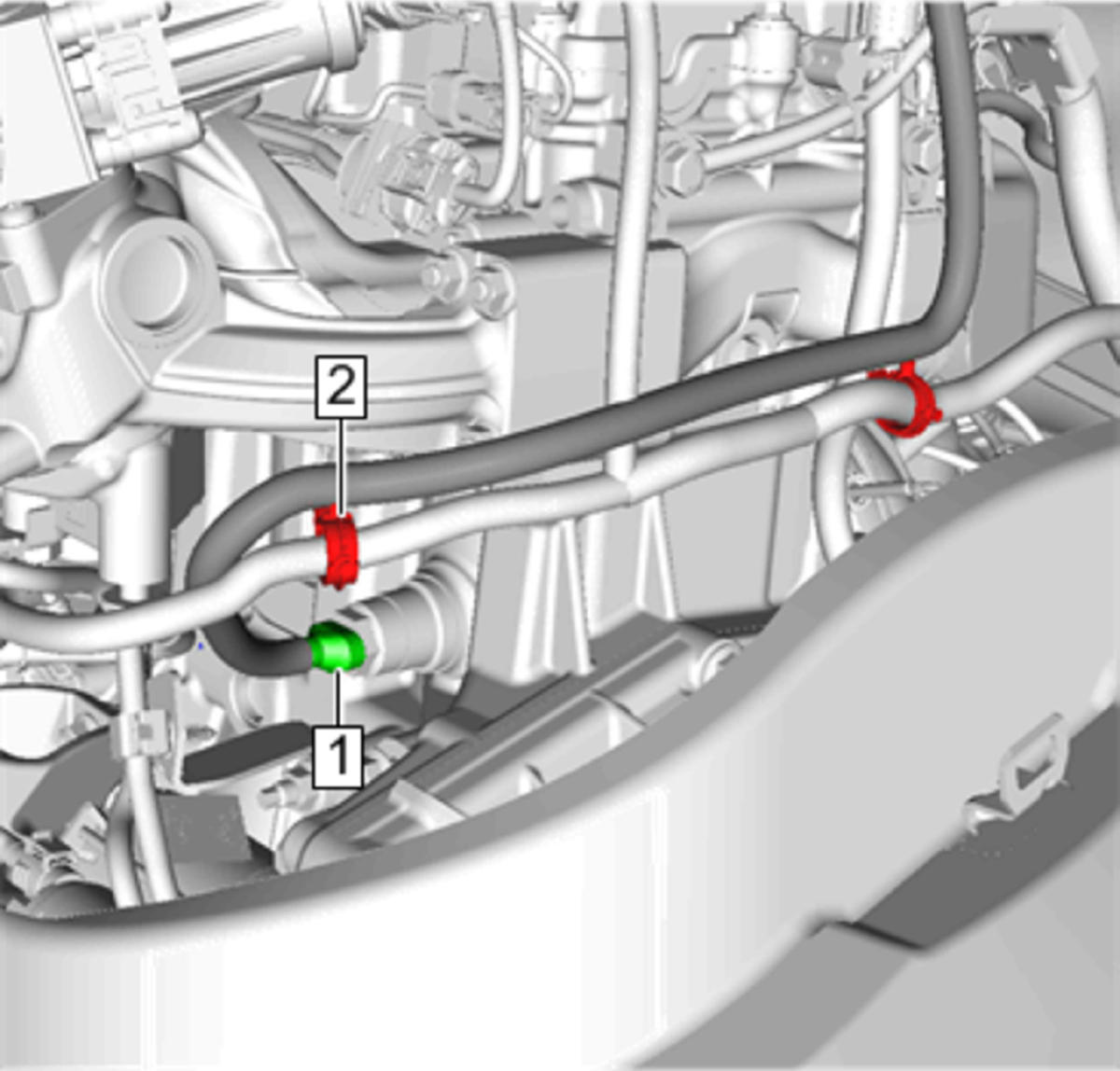

  2. GM4621989Courtesy of GENERAL MOTORS COMPANY

    Coolant Heater Electrical Connector(1) - Disconnect

  3. Coolant Heater Cord Clip(2) - Remove[2x]

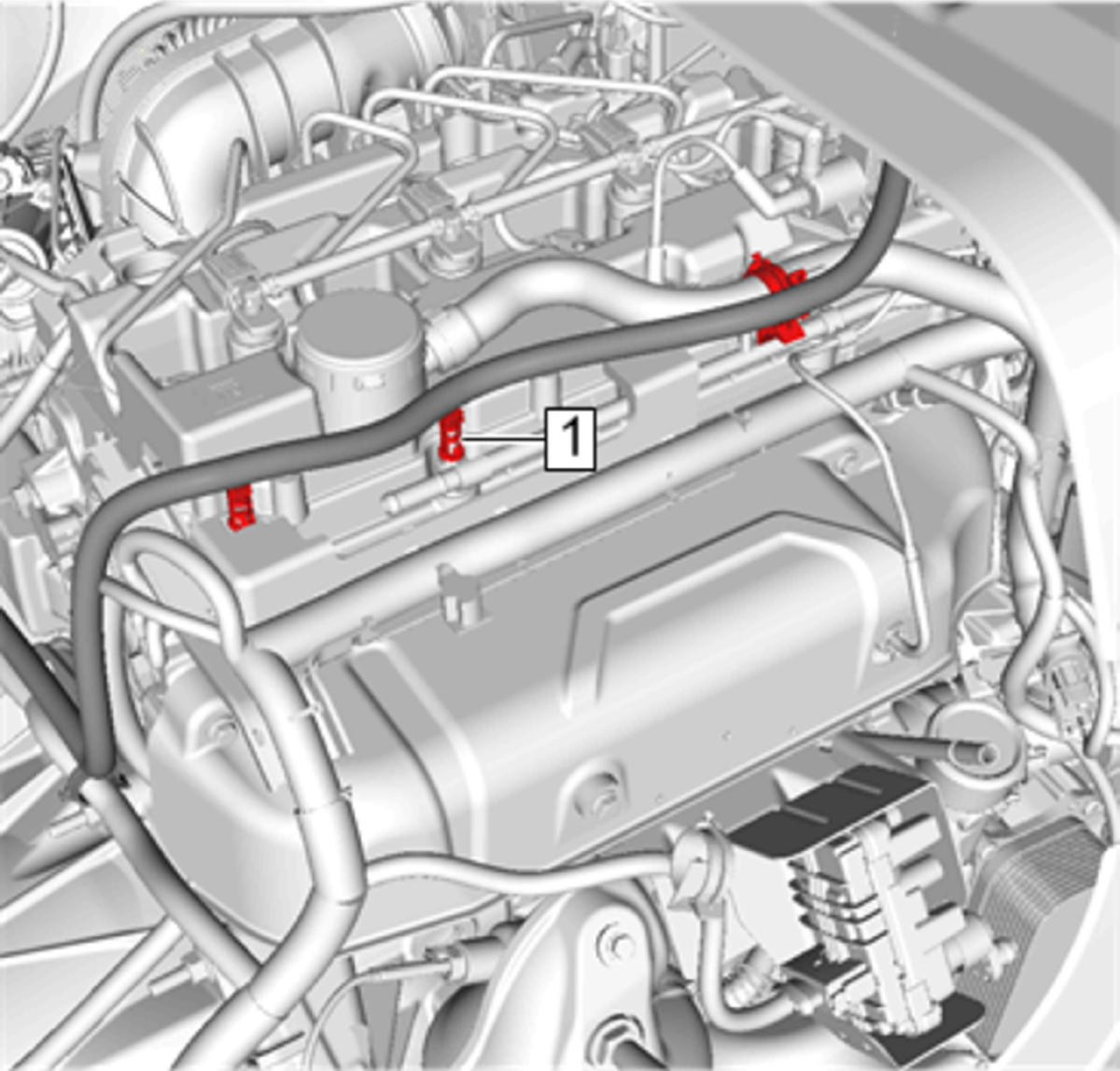

  4. GM4621992Courtesy of GENERAL MOTORS COMPANY

    Coolant Heater Cord Clip(1) - Remove[3x]

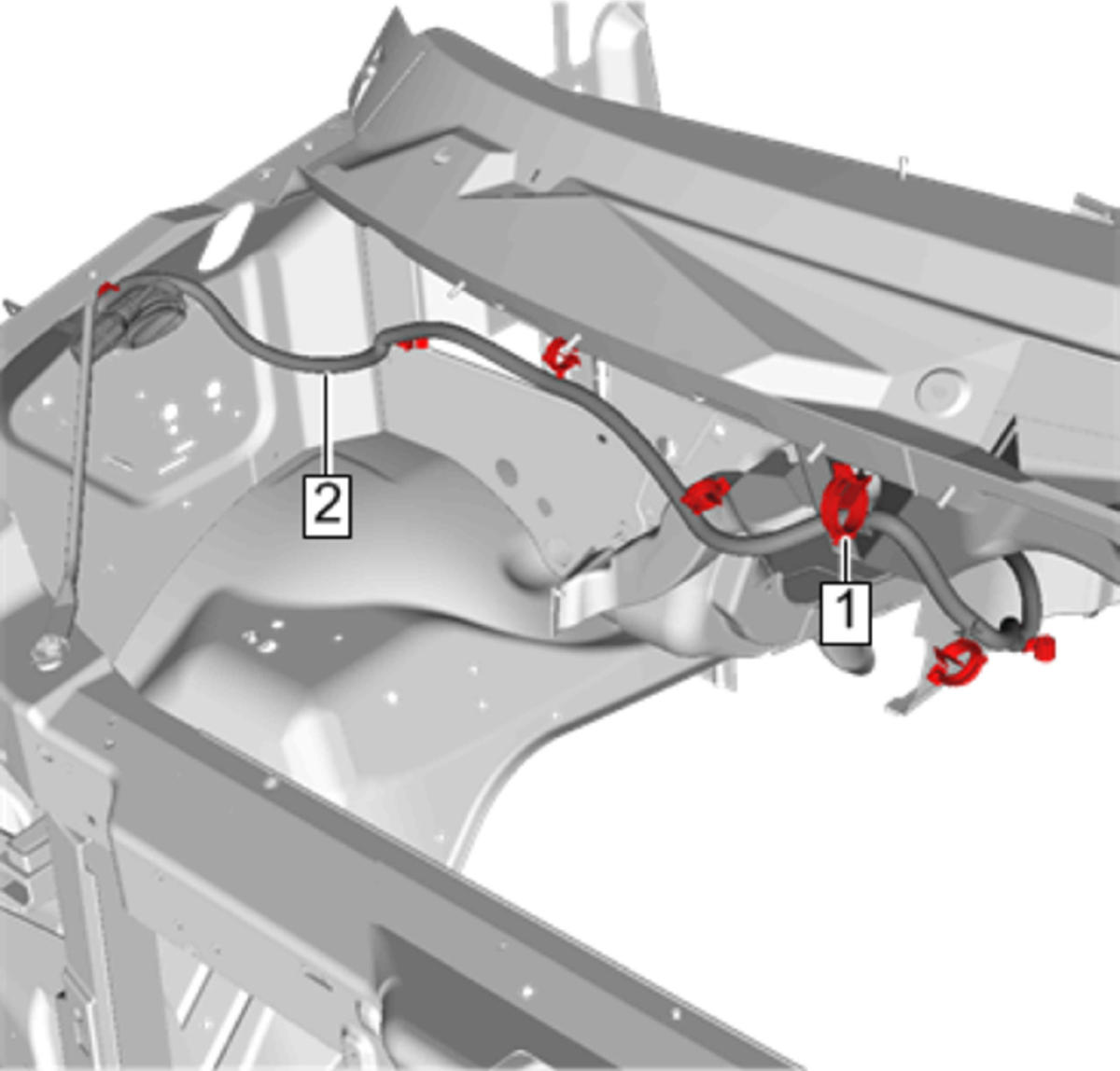

  5. GM4622008Courtesy of GENERAL MOTORS COMPANY

    Coolant Heater Cord Clip(1) - Remove[7x]

  6. Coolant Heater Cord(2) - Remove
