Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
  1. GM4845472Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord(1) @ Engine Coolant Heater(2) - Disconnect

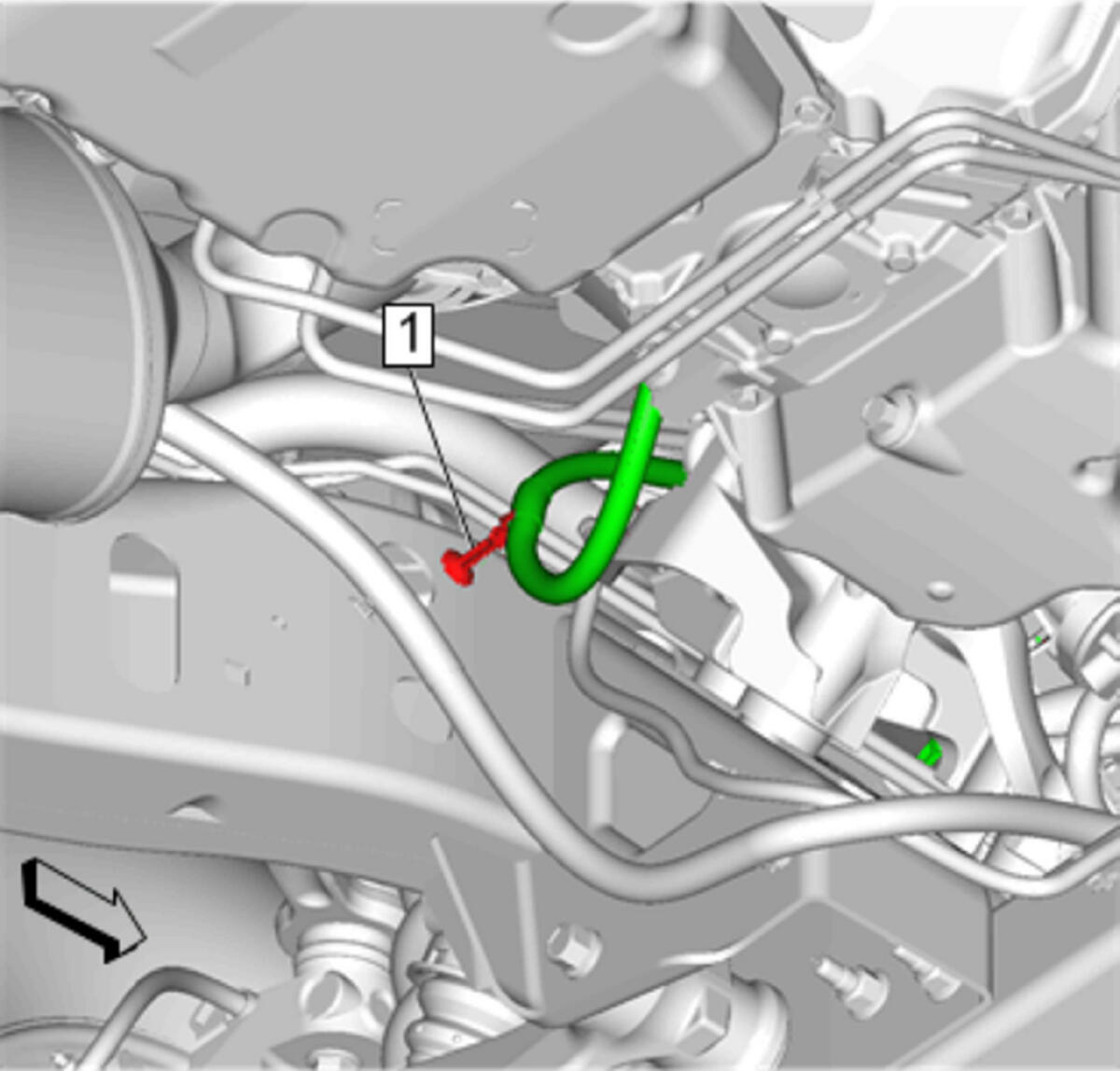

  2. GM4845493Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Retainer (1) @ Frame - Separate

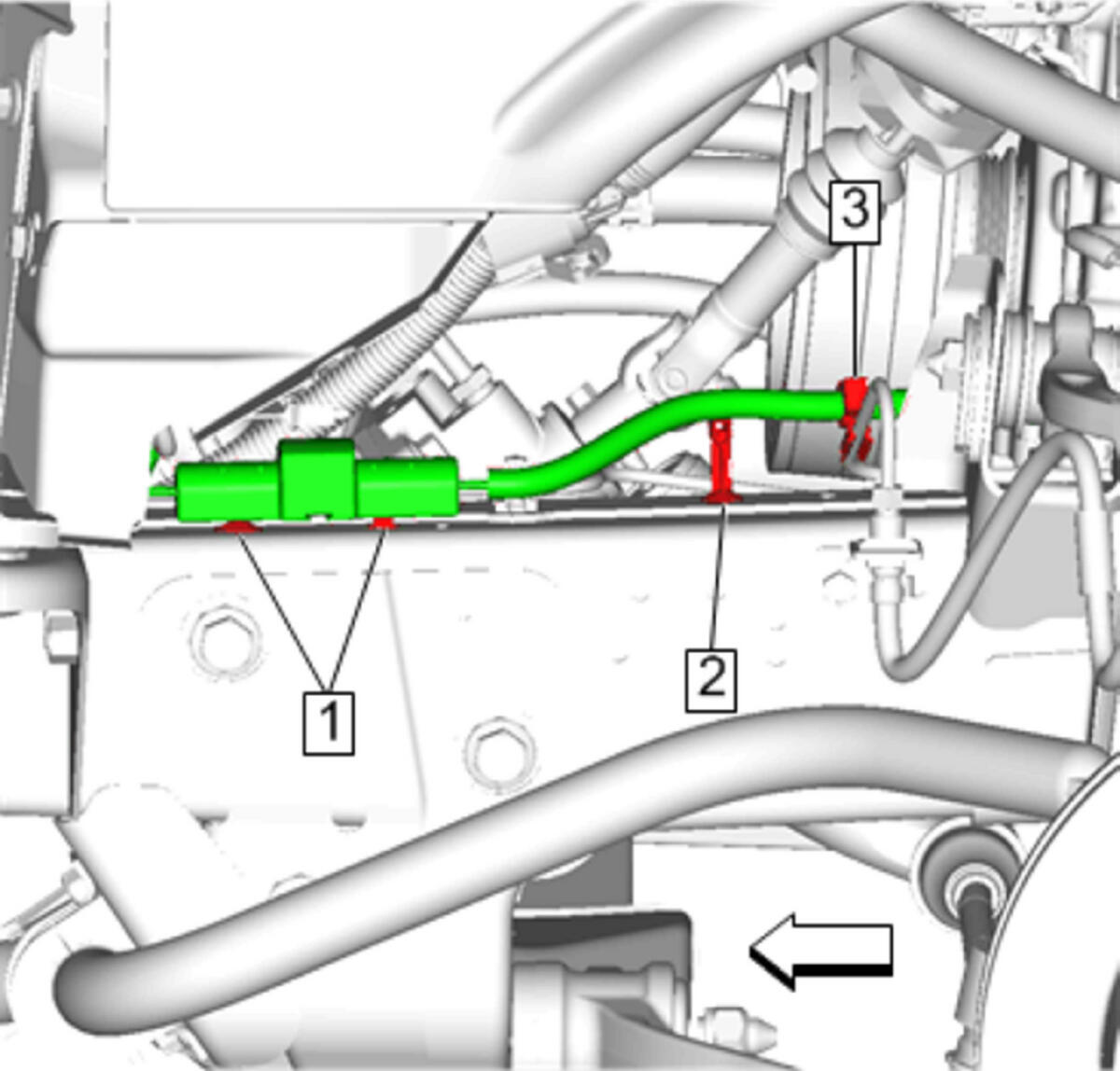

  3. GM4845499Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Thermostat Block Retainer (1) @ Frame - Separate[2x]

  4. Engine Coolant Heater Cord Retainer (2) @ Frame - Separate
  5. Engine Coolant Heater Cord Retainer (3) @ Front Brake Line - Separate

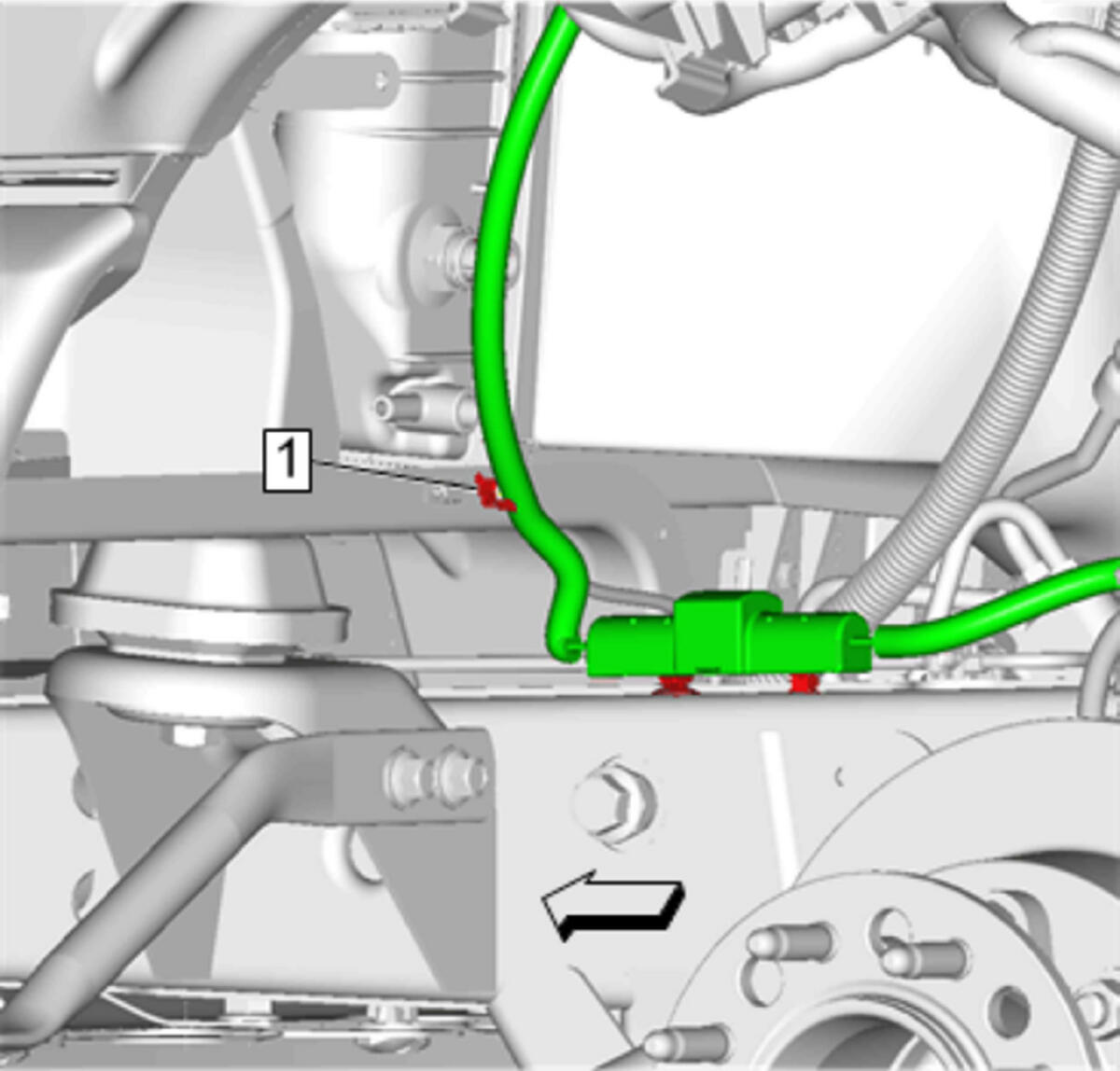

  6. GM4845532Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Retainer (1) @ Front End Lower Tie Bar - Separate

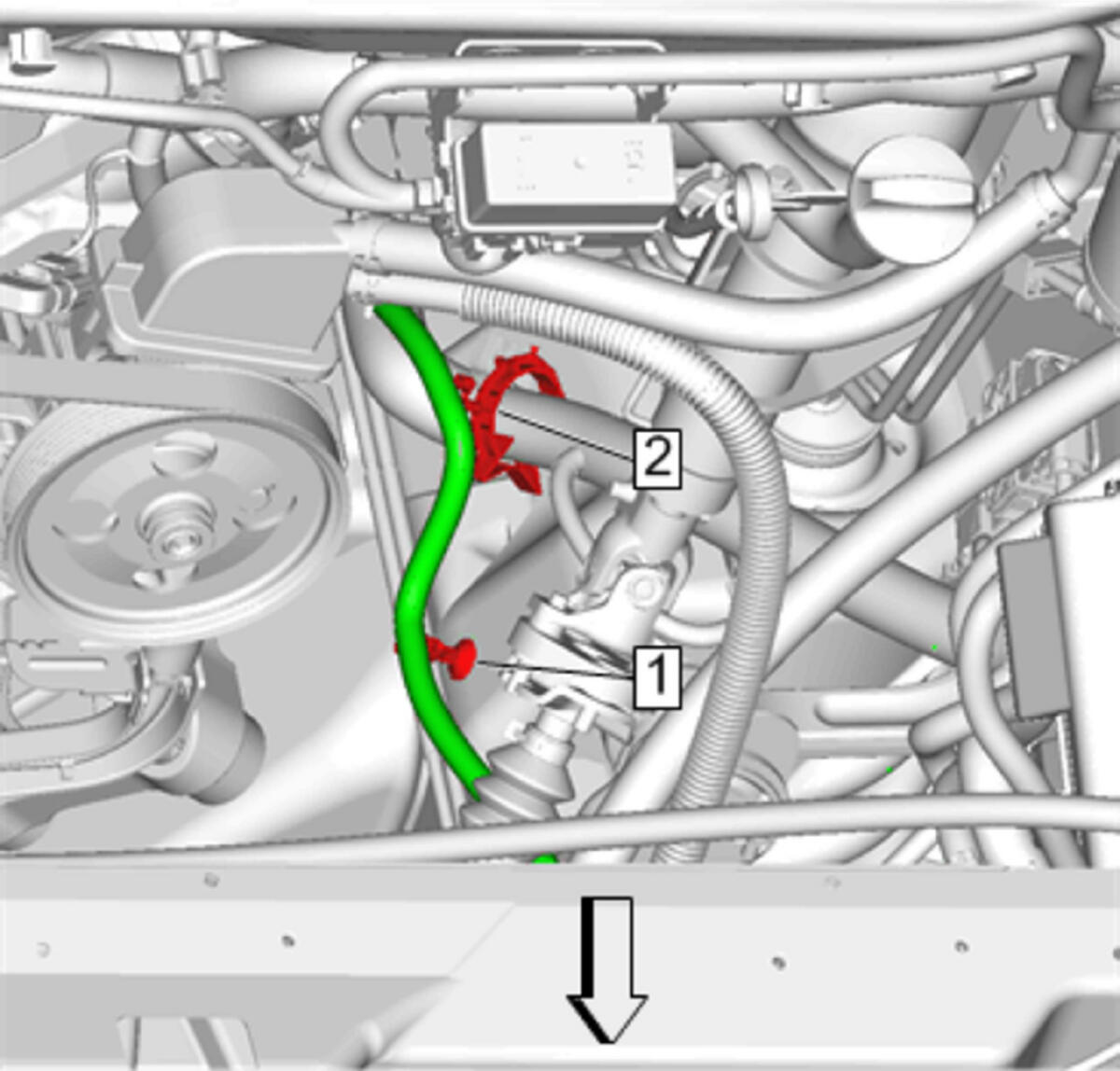

  7. GM4845497Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Retainer (1) @ LH Spring Seat/Shock Bracket - Separate

  8. Engine Coolant Heater Cord Harness Retainer (2) - Separate

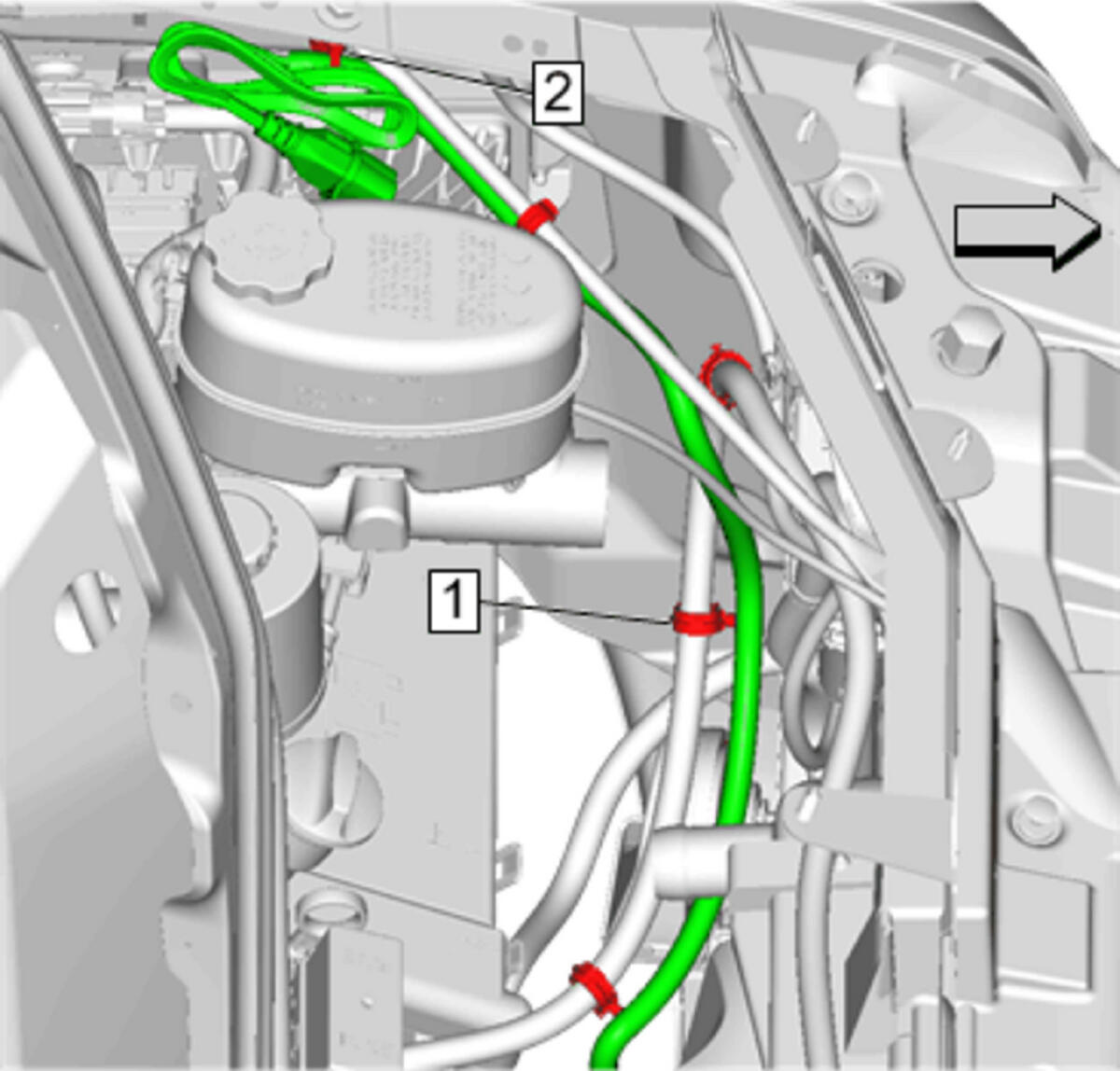

  9. GM4845536Courtesy of GENERAL MOTORS COMPANY

    Engine Coolant Heater Cord Retainer (1) - Separate[4x]

  10. Engine Coolant Heater Cord Retainer (2) @ Front End Inner Side Panel - Separate
  11. Engine Coolant Heater Cord - Remove
