Sliding Door Inside Handle Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

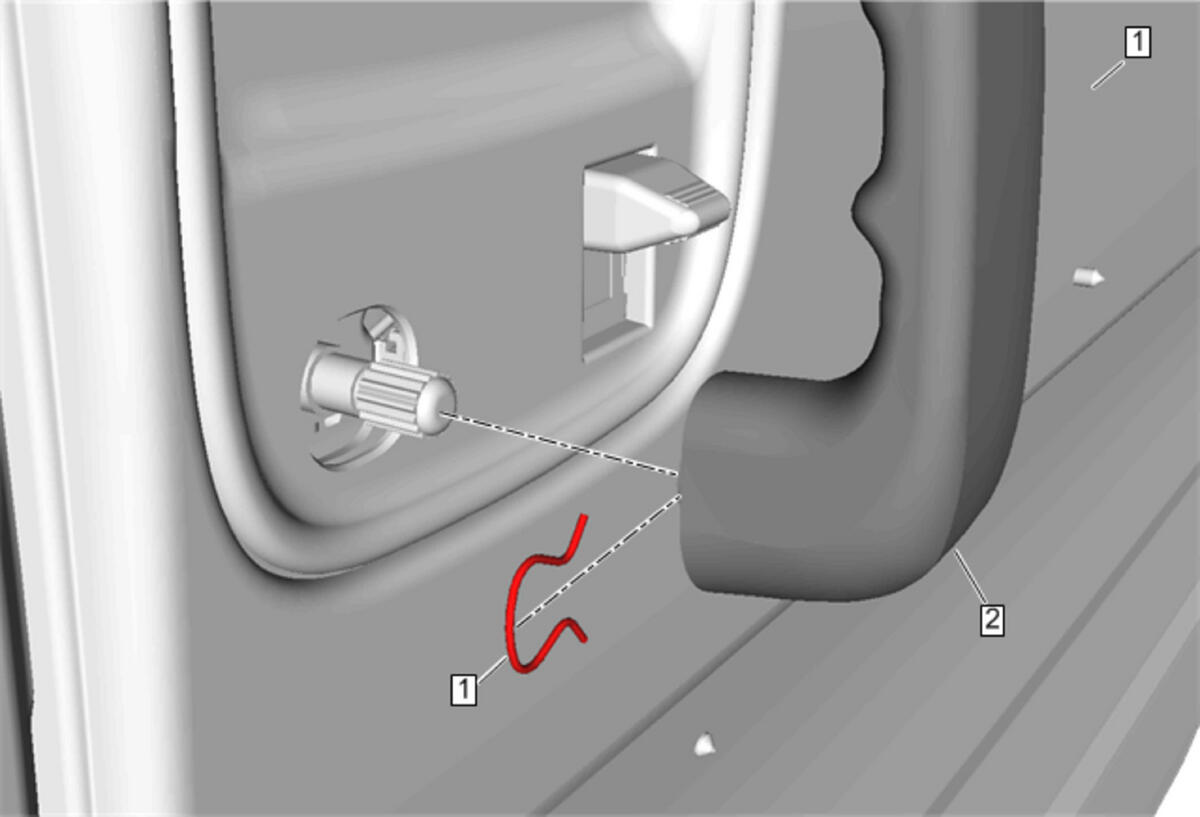

GM4867306Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Inside Handle Clip
Procedure
Using a suitable tool, remove the door window regulator handle clip.
2 Sliding Door Inside Handle
