Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

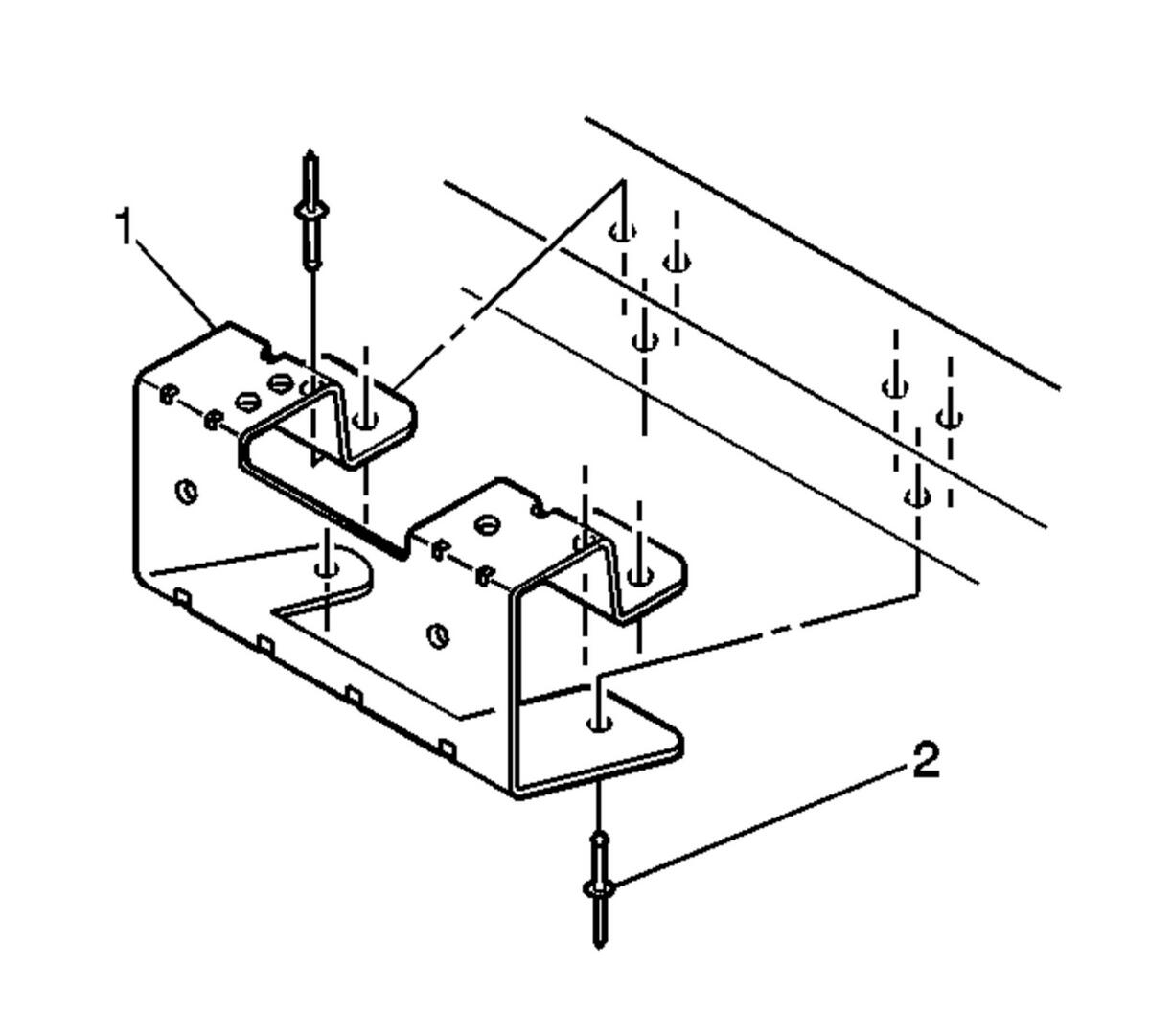

  1. GM834697Courtesy of GENERAL MOTORS COMPANY

    Install the latch brackets (1).

  2. Install the rivets (2).

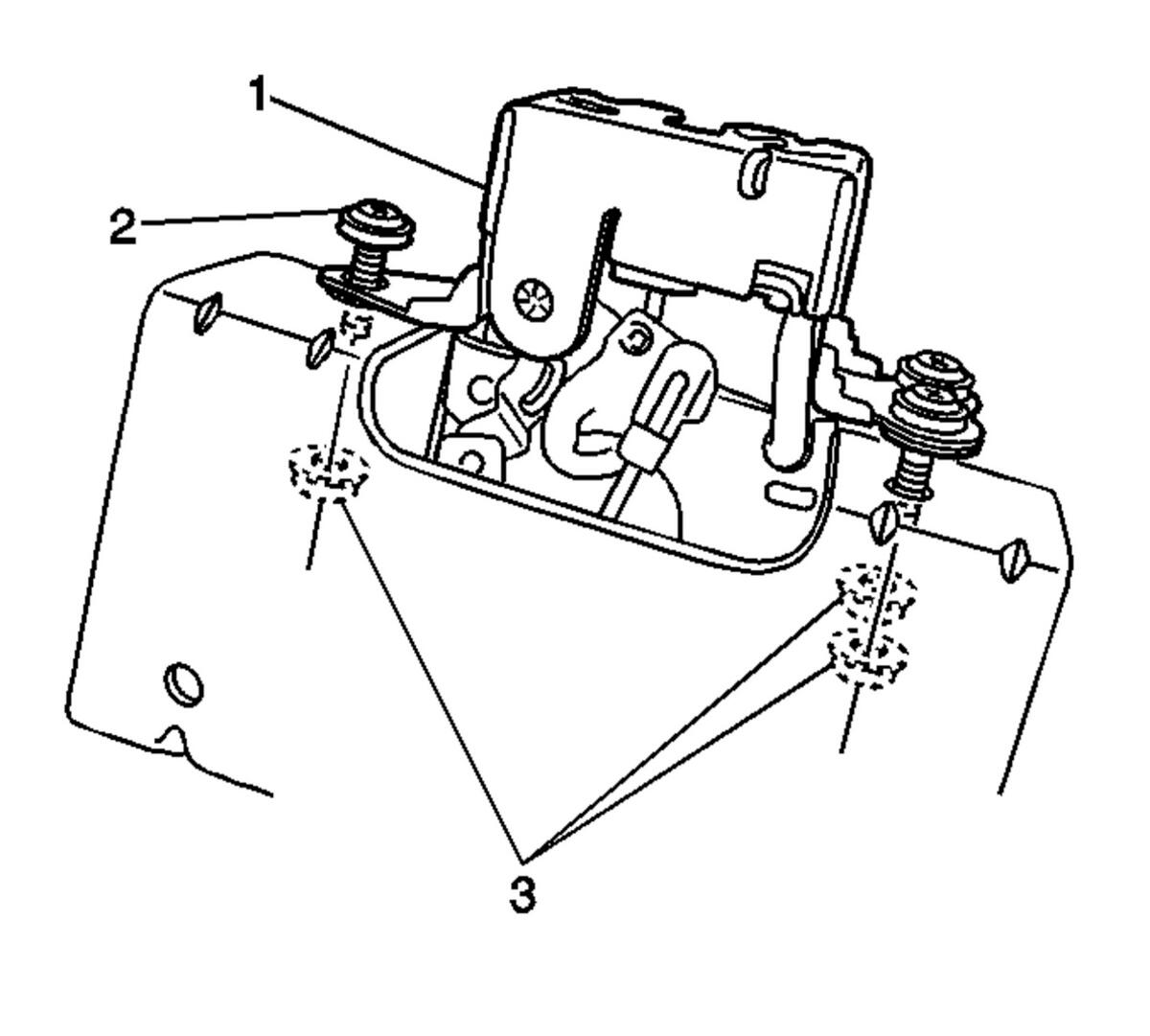

  3. GM834699Courtesy of GENERAL MOTORS COMPANY

    Install the latch (1).

    4. CAUTION:

    Refer to Fastener Caution .

  4. Install the latch bolts (2) and tighten to 10 N.m (89 lb in).
  5. Connect the electrical connection.
