Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

The door ajar switch is contained within the lock of the rear door. Therefore replacement of the lock will include the replacement of the rear door ajar switch.

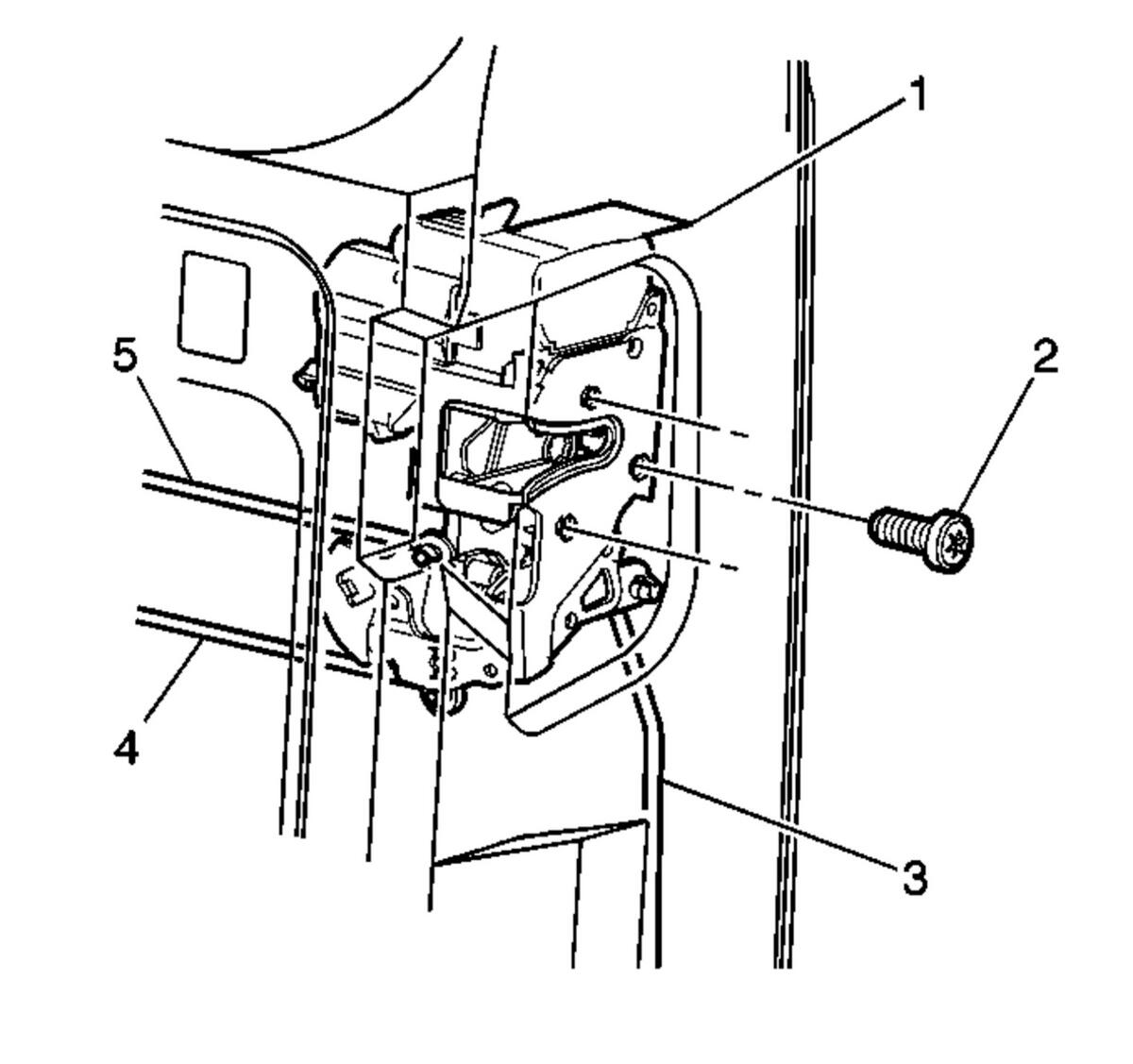

  1. GM334096Courtesy of GENERAL MOTORS COMPANY

    Remove the right side rear door trim panel. Refer to Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) .

  2. Remove the lock rods (3, 4, 5) from the lock (1).
  3. Disconnect the electrical connector from the lock (1).
  4. Remove the 3 screws (2) that retain the lock (1) to the right side rear door.
  5. Remove the lock (1) from the right side rear door.
  6. Remove the lock (1) from the vehicle.
