Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

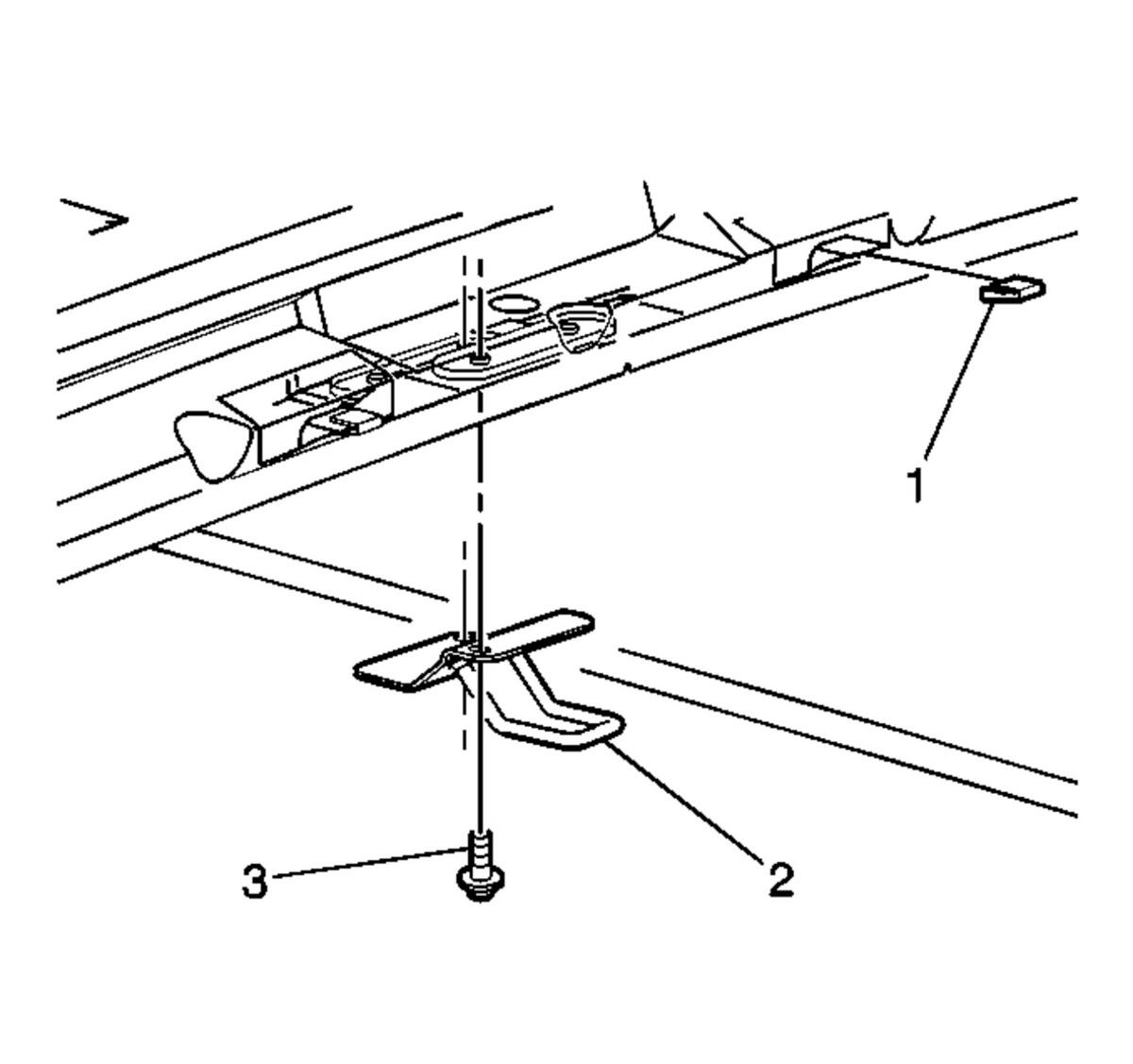

  1. GM334083Courtesy of GENERAL MOTORS COMPANY

    Remove the back body opening garnish molding. Refer to Back Body Opening Garnish Molding Replacement .

  2. Remove the bolts (3) that retain the rear door upper striker (2) to the door opening.
  3. Remove the rear door upper striker (2) from the door opening.
