Installation Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

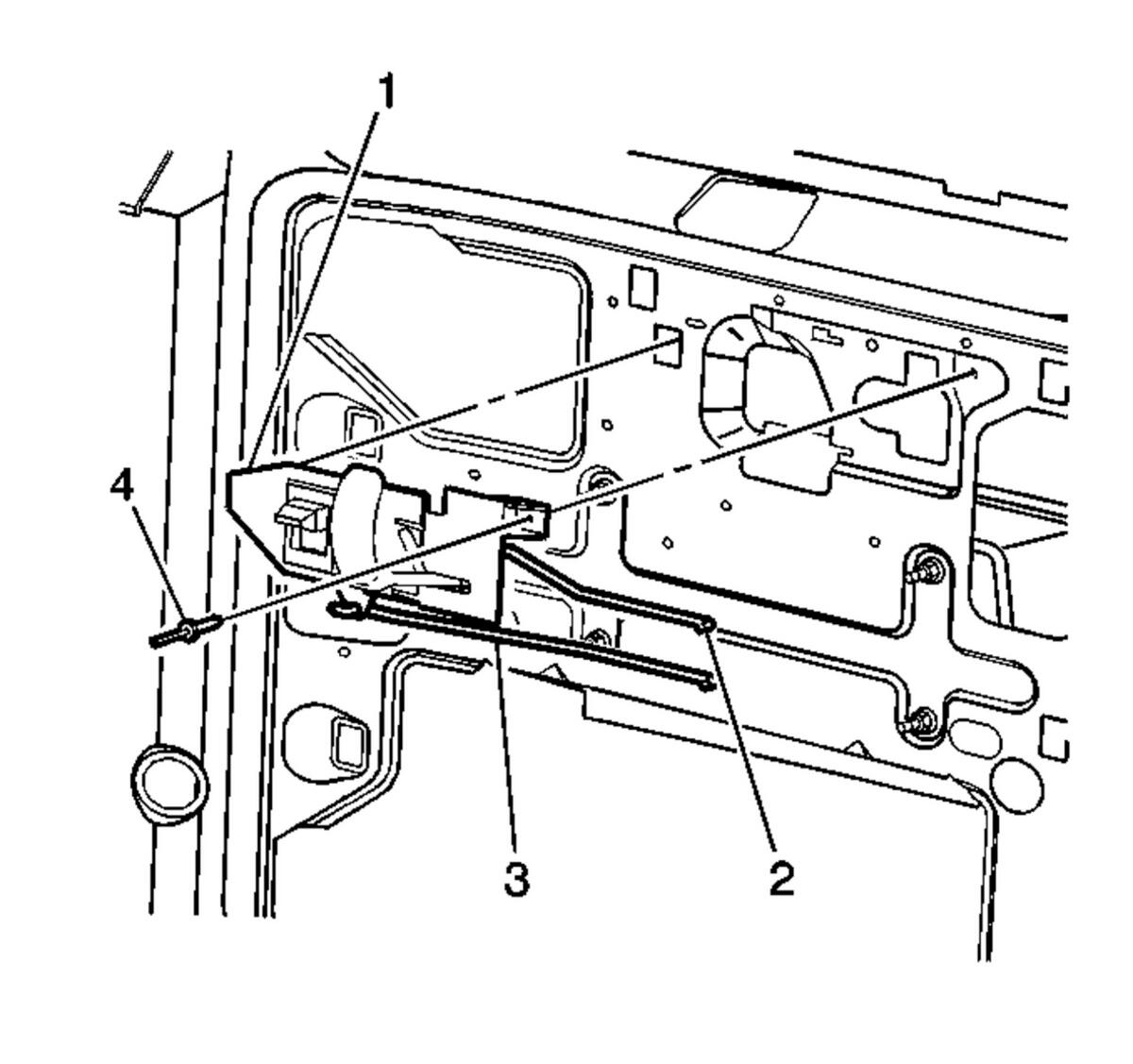

  1. GM334069Courtesy of GENERAL MOTORS COMPANY

    Install the rear door inside handle to the right rear door.

  2. Install the lock rods (3) to the lock.
  3. Install the rivet (4) at the rear edge of the rear door inside handle.
  4. Install the right side rear door trim panel. Refer to Rear Door Trim Panel Replacement - Right Side (E24) .
