Removal Procedure

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

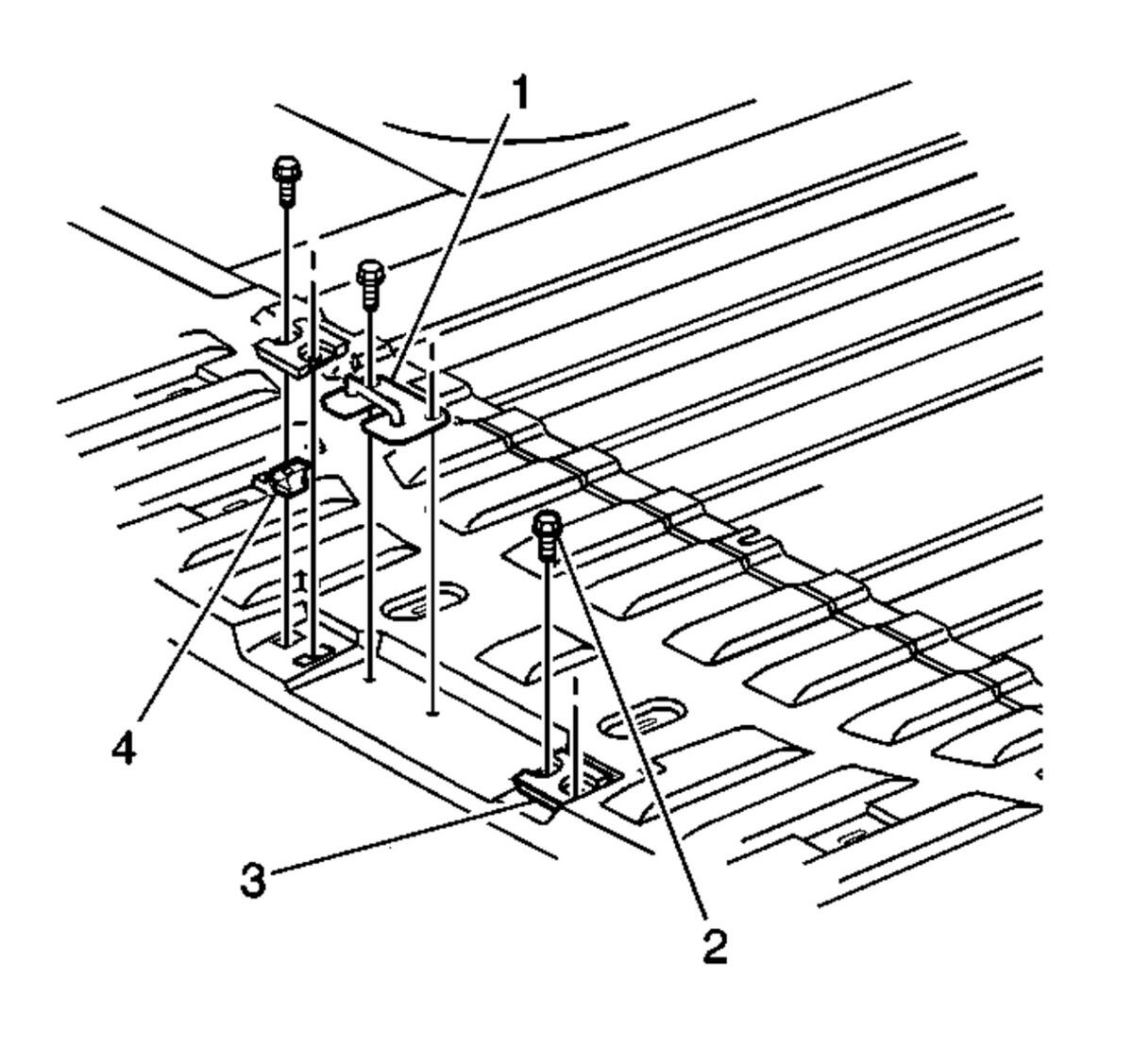

  1. GM334090Courtesy of GENERAL MOTORS COMPANY

    Remove the bolts (2) that retain the rear door lower striker (1) to the floor panel.

  2. Remove the rear door lower striker (1) from the floor panel.
