Intermediate Side Door Lower Hook Striker Replacement

WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

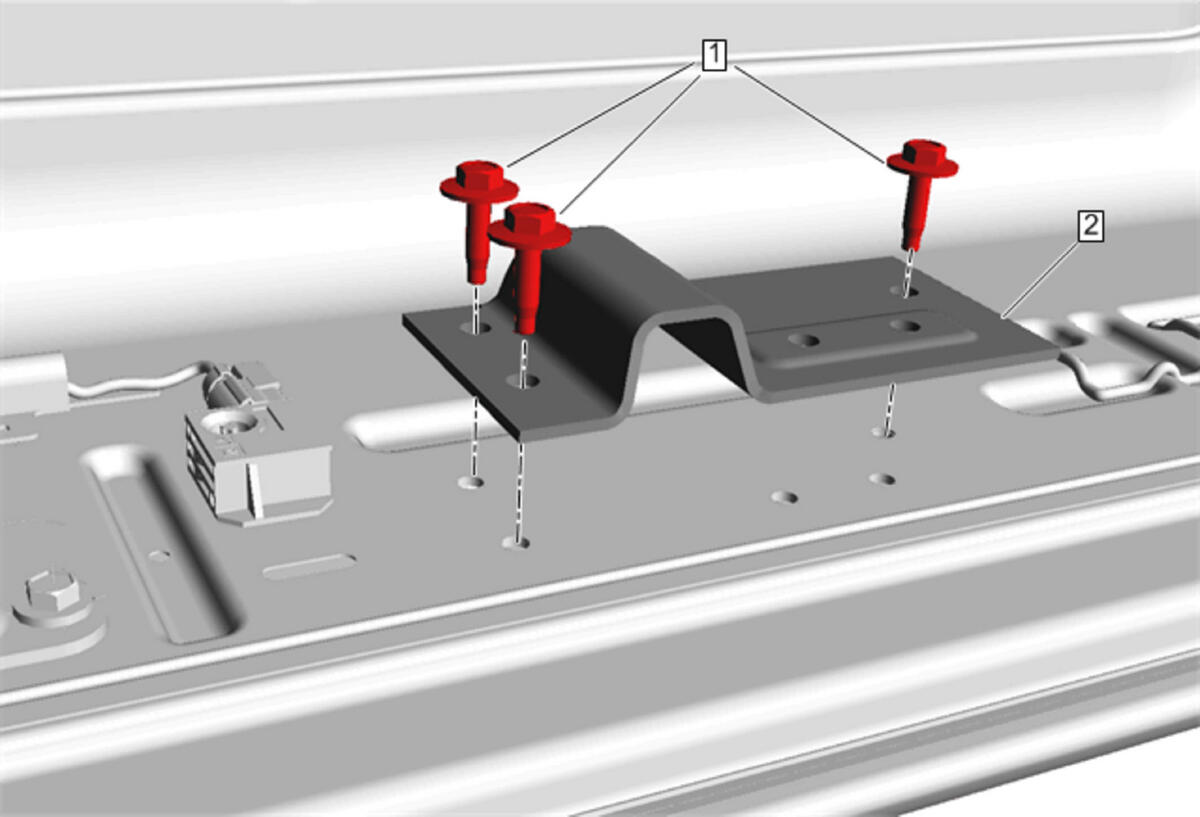

Callout	Component Name
Preliminary Procedures Intermediate Side Door Wedge Replacement - Body Side (Lower) , or Intermediate Side Door Wedge Replacement - Body Side (Upper) Rear Side Door Step Mat Replacement
1	Intermediate Side Door Lower Hook Striker Bolt [3x] CAUTION: Refer to Fastener Caution . Tighten 10 N.m (88 lb in)
2	Intermediate Side Door Lower Hook Striker

Callout

Component Name

Preliminary Procedures

Intermediate Side Door Wedge Replacement - Body Side (Lower) , or Intermediate Side Door Wedge Replacement - Body Side (Upper)
Rear Side Door Step Mat Replacement

Intermediate Side Door Lower Hook Striker Bolt [3x]

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (88 lb in)

Intermediate Side Door Lower Hook Striker
