Intermediate Side Door Inside Handle Replacement
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

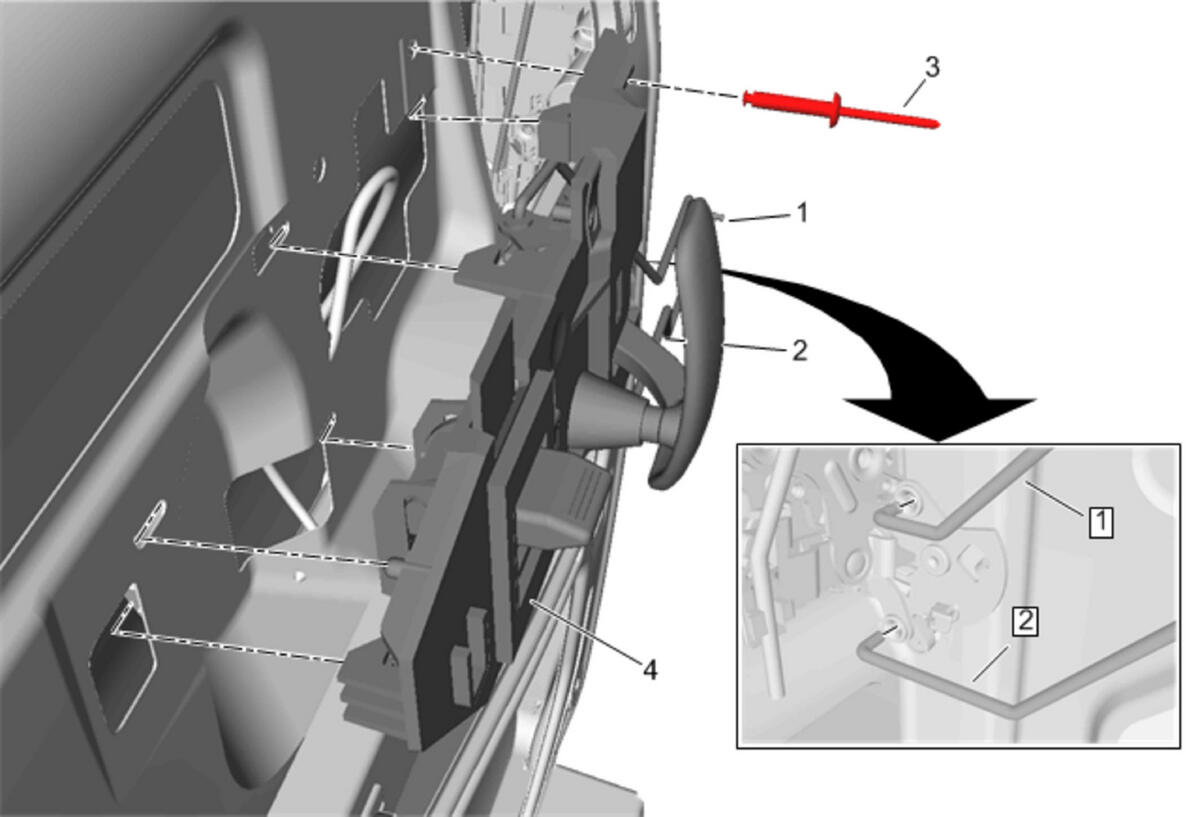

| Callout | Component Name |
|---|---|
| Preliminary Procedure Remove rear side 60/40 door trim panel - right side (E24, 60 door). Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 40 Door) , or Rear Side 60/40 Door Trim Panel Replacement - Right Side (E24, 60 Door) |
|
| 1 | Intermediate Side Door Inside Handle Rod |
| 2 | Intermediate Side Door Locking Rod |
| 3 | Intermediate Side Door Inside Handle Rivot
CAUTION:
Refer to Eye Protection Warning . Procedure Drill out the rivet. |
| 4 | Intermediate Side Door Inside Handle |
