Installation Procedure
WARNING: This page is about a different car, the 2019 GMC Savana 3500, 2019 GMC Savana 2500, 2019 Chevrolet Express 3500, and 2019 Chevrolet Express 2500. However, it is still accessible from the selected car via links, so may be relevant.

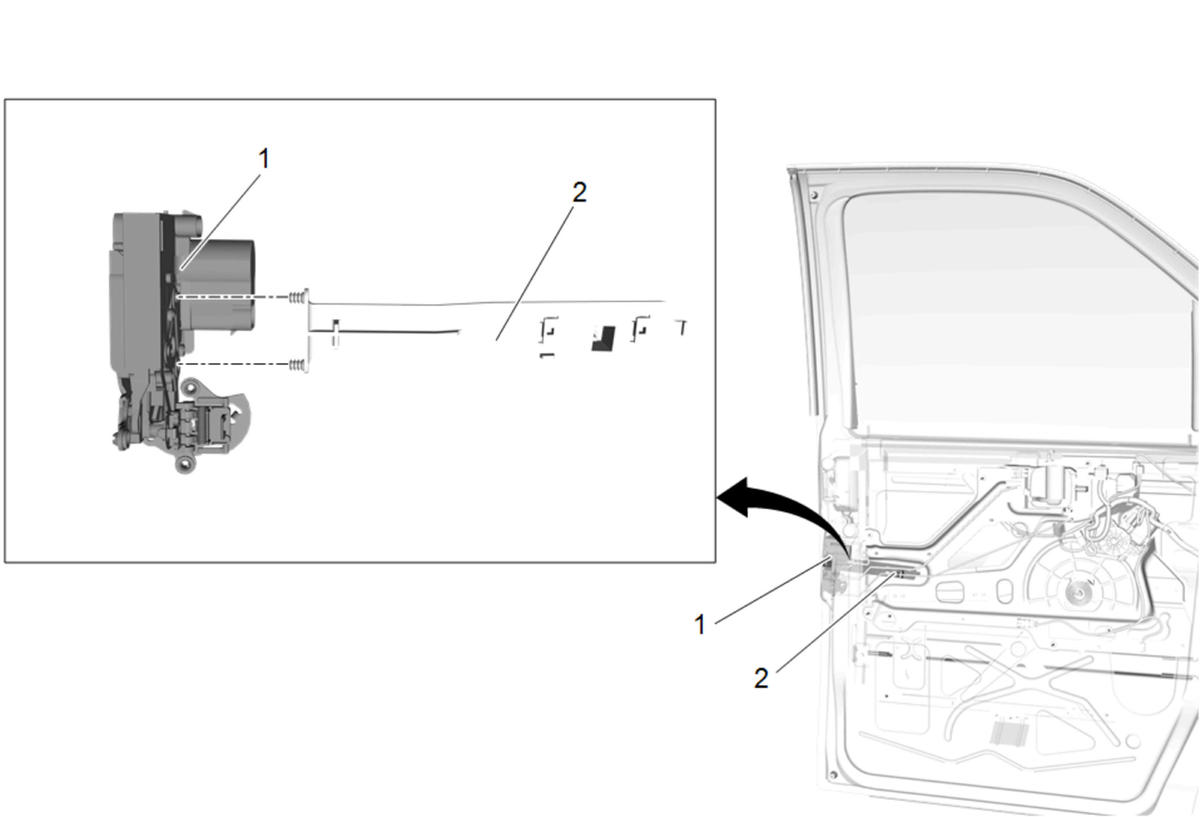

Install the front side door latch (1) to the front side door window module support bracket (2).

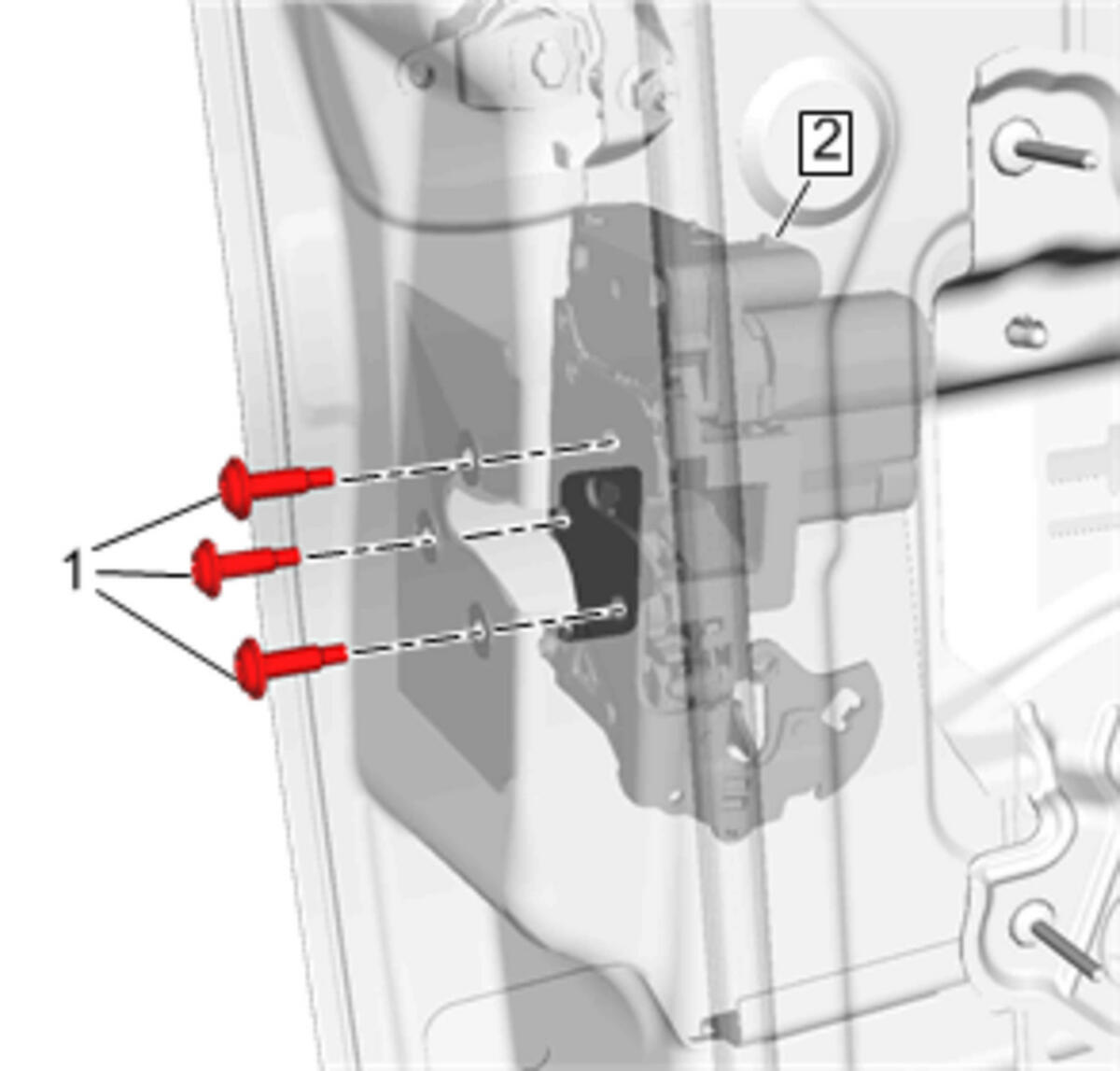

Front Side Door Latch(2) - Install
- Front Side Door Latch Bolt(1) - Install and tighten 10 N.m (88 lb in)

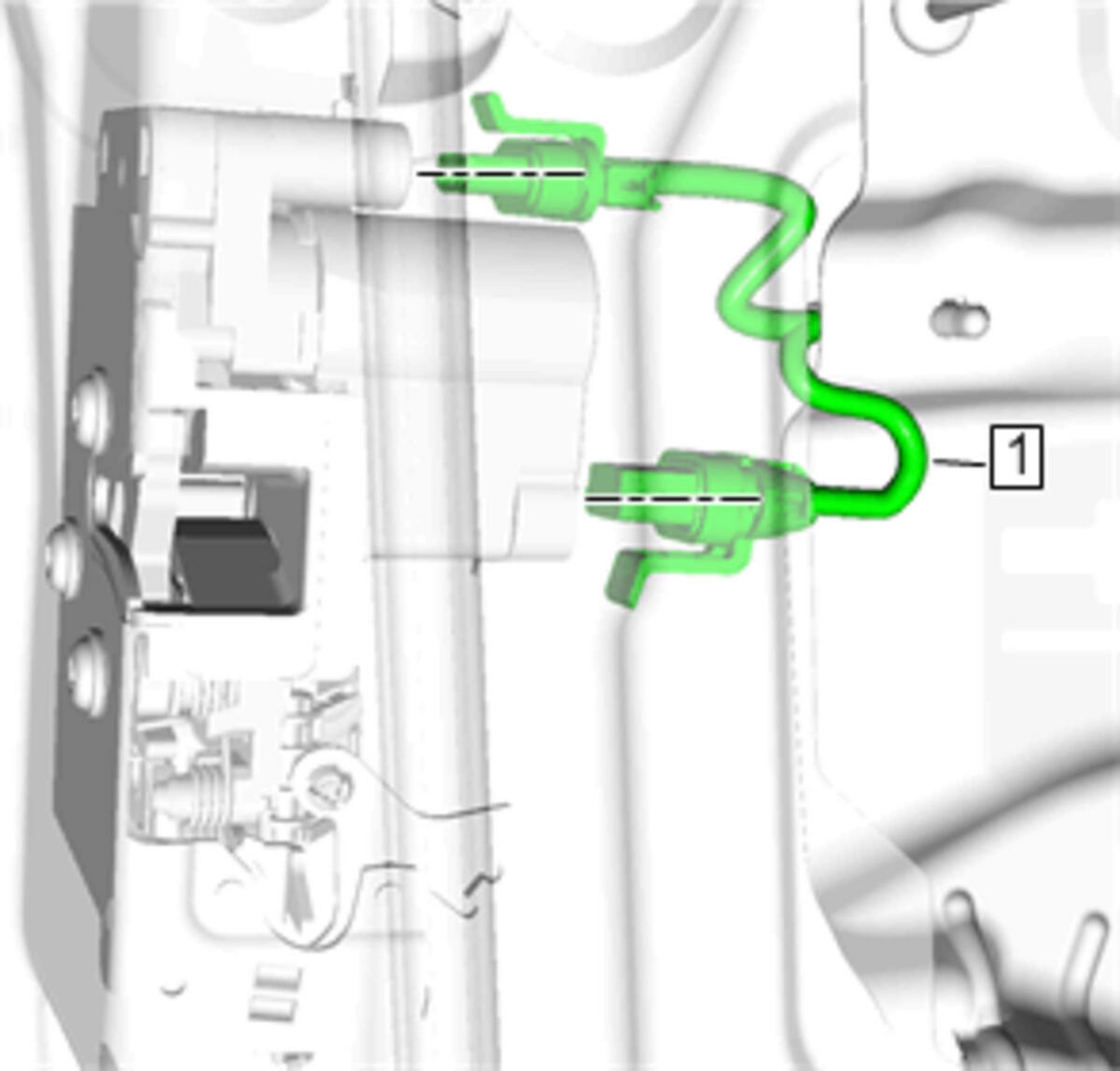

Front Side Door Wiring Harness(1) - Install

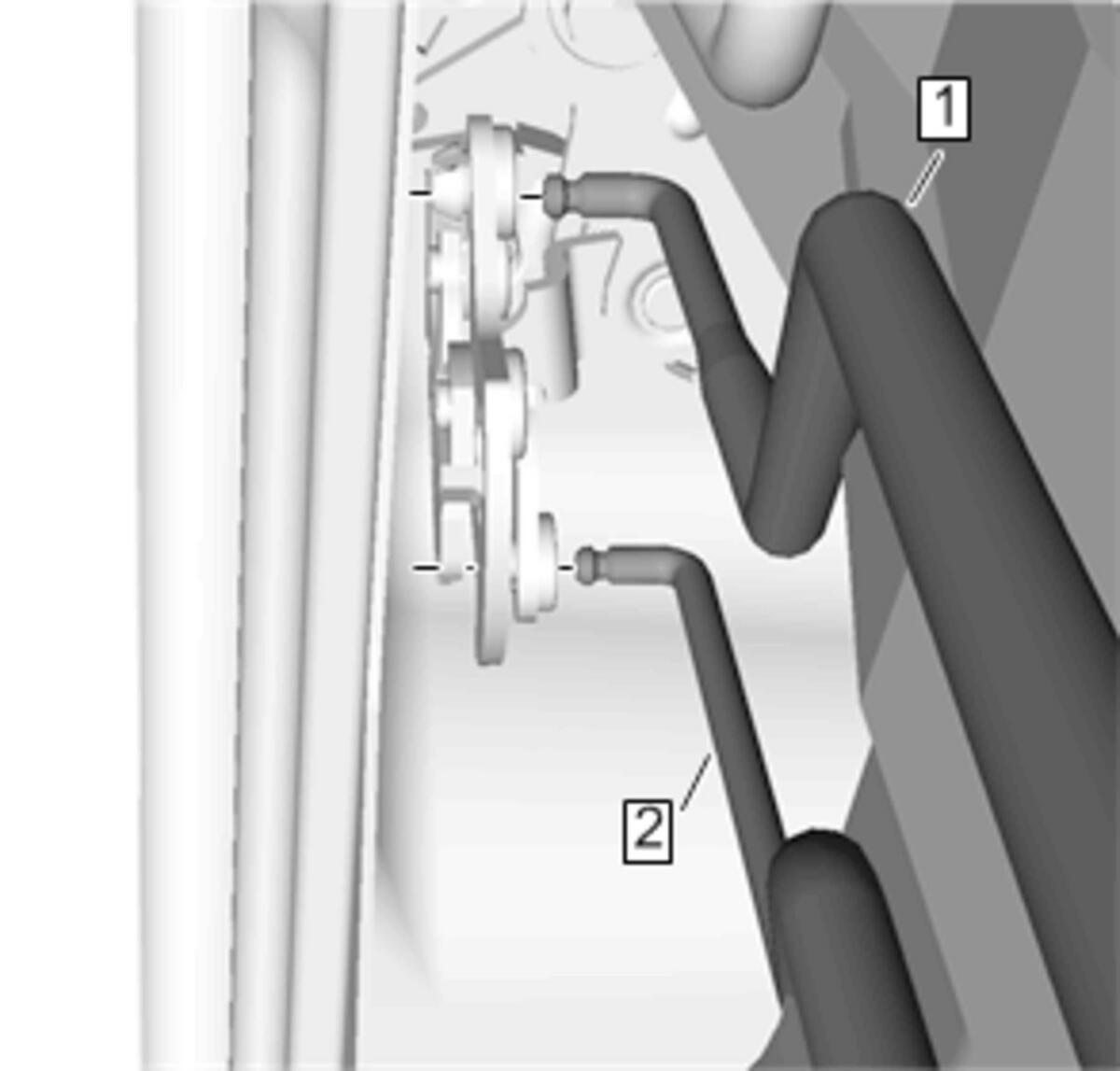

Front Side Door Inside Handle Rod (1) - Install
- Front Side Door Lock Rod (2) - Install

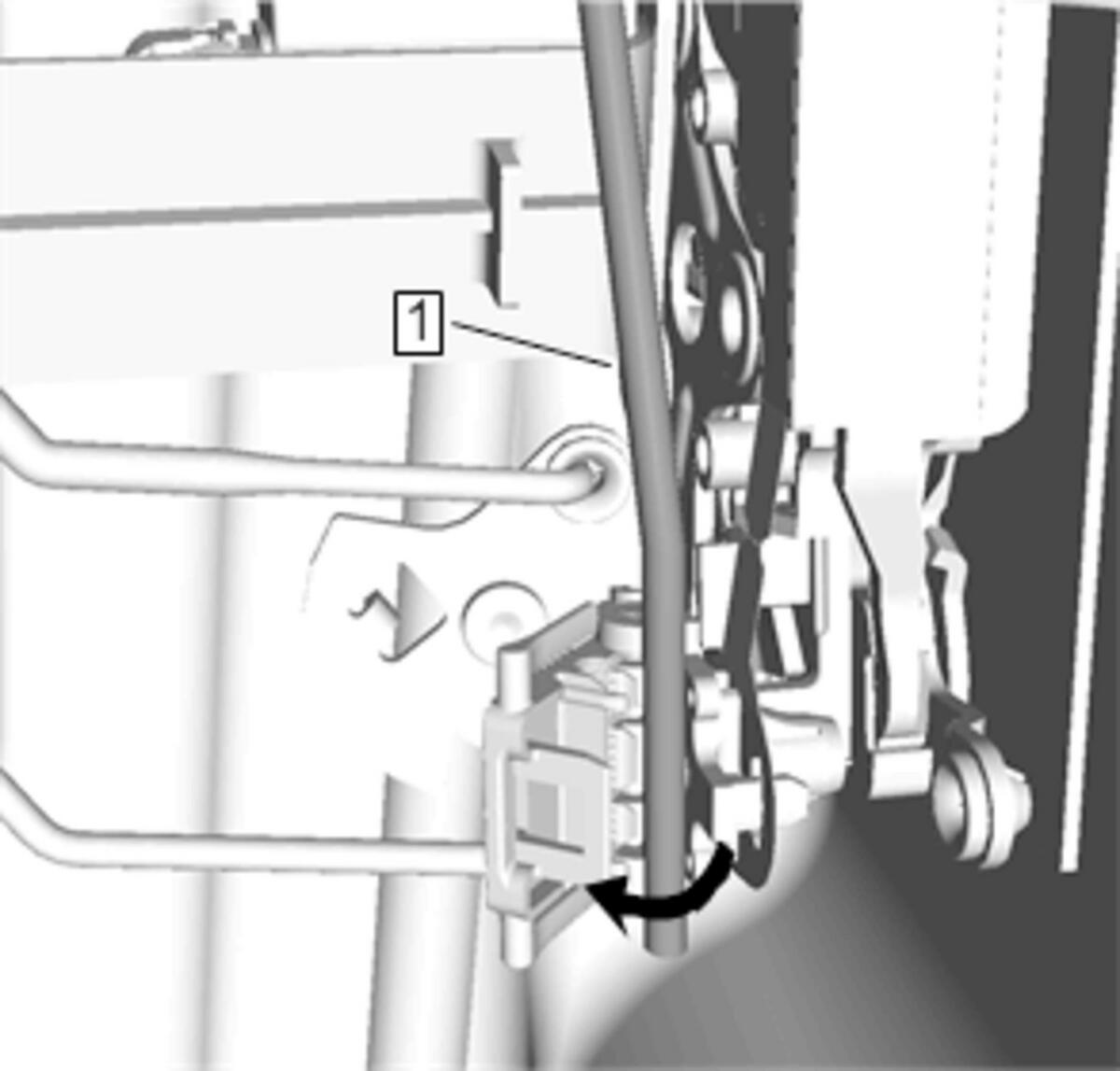

Front Side Door Outside Handle Rod(1) - Install
- Front Side Door Lock Cylinder Rod - Install
- Front Side Door Window Channel Replacement - Lower Rear - Install - Front Side Door Window Channel Replacement - Lower Rear
CAUTION:
Refer to Fastener Caution .
